Dräger Apollo User Manual

Pre-use Checkout
96 Instructions for Use Apollo SW 4.5n
Part Number: 9053586, 3rd edition
Vapor 2000 is shown and described below.

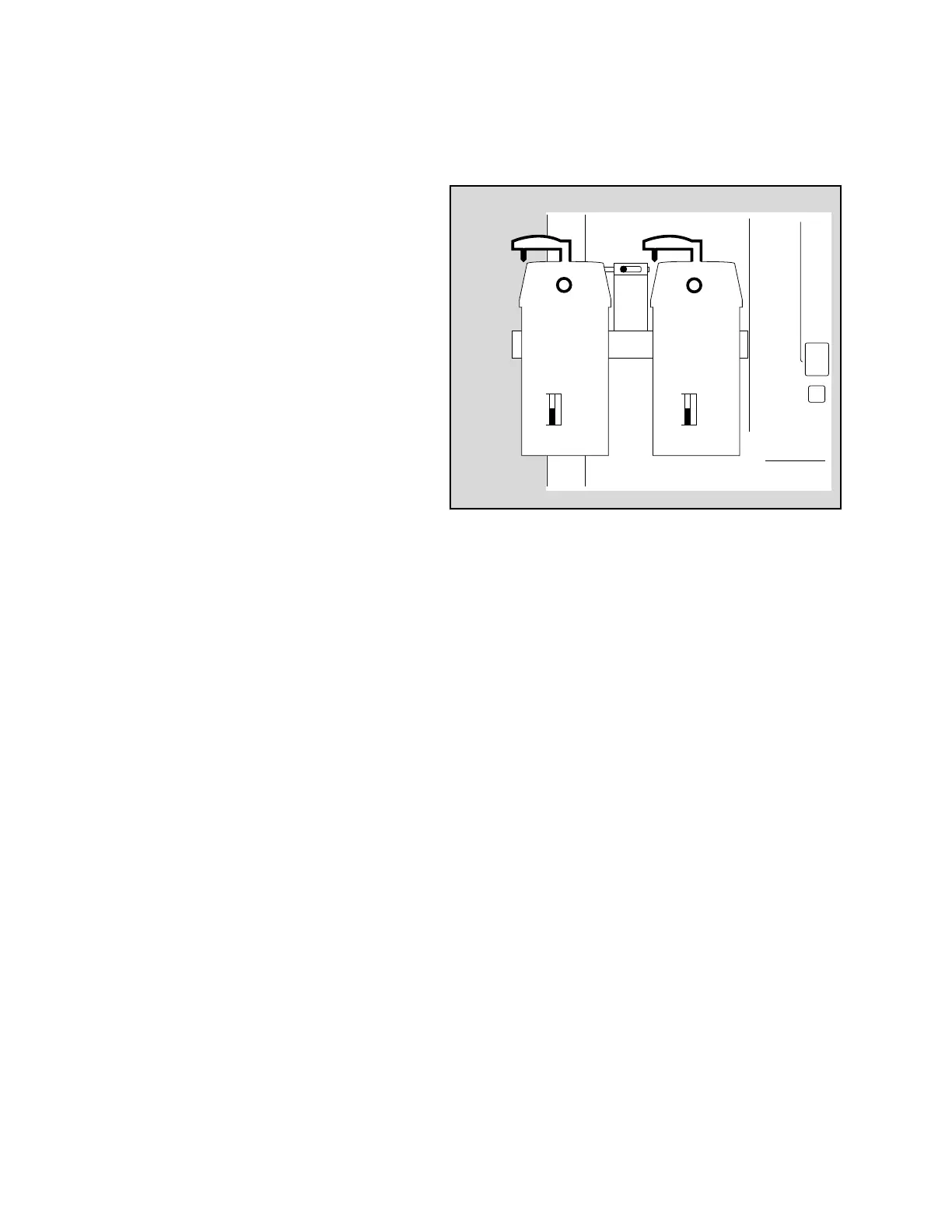

Figure 40. Dräger Interlock 2 System with Vapor 2000
Vaporizers
For the Dräger Interlock 2 System:
1. Vaporizers are mounted straight and seated
securely on the mounts.
2. Locking levers point to the left = locked position
(1 in Figure 40).
3. Check the sight glass (2 in Figure 40) and ensure
an adequate filling level.
4. Handwheel set to >0< and button is engaged
(3 in Figure 40).
5. Check the interlock mechanism.
Move the selector lever (4 in Figure 40) to the left
to lock the left vaporizer. Turn the handwheel on
the right vaporizer to a position other than >0<,
and make sure that the left vaporizer remains
locked in its >0< position.
6. Repeat test for other vaporizer.
7. Turn both handwheels to >0< positions.
For the Dräger Auto Exclusion System:
1. Vaporizers are mounted straight and seated
securely on the mounts.
2. Locking levers point to the left = locked position.
3. Check the sight glass and ensure an adequate
filling level.
4. Handwheel set to >0< and the button is
engaged.
5. Check the interlock mechanism.
Turn the handwheel on one vaporizer to a
position other than >0<, and make sure that the
other vaporizer remains locked in its >0<
position.
6. Repeat test for other vaporizer.
7. Turn both handwheels to >0< positions.
Note: For three-vaporizer mounts, perform this test
for all three vaporizers.
Note: The self test does not check for internal
vaporizer leakage; after filling or changing
vaporizers, perform the Standby leak test on
each vaporizer (see page 118).
