Programming
48 Operating Instructions 513/533 - 01.0 - 09/2023
18. The increment for the speed can be set to 100 rpm. Set the
value to 2000 using the buttons.
19. Complete the setting with a press of the button .
20. Press the button to finish the seam pattern registration.
Adjusting the zero point by setting the X-axis to 0.5 and
the Y-axis to -1.0
Important
This setting only applies to the currently selected seam pattern (P).
The global setting of the zero point is explained here ( p. 40).
21. Press the button.
22. Press the buttons
The alignment of the X-axis is displayed as 0.0 mm.

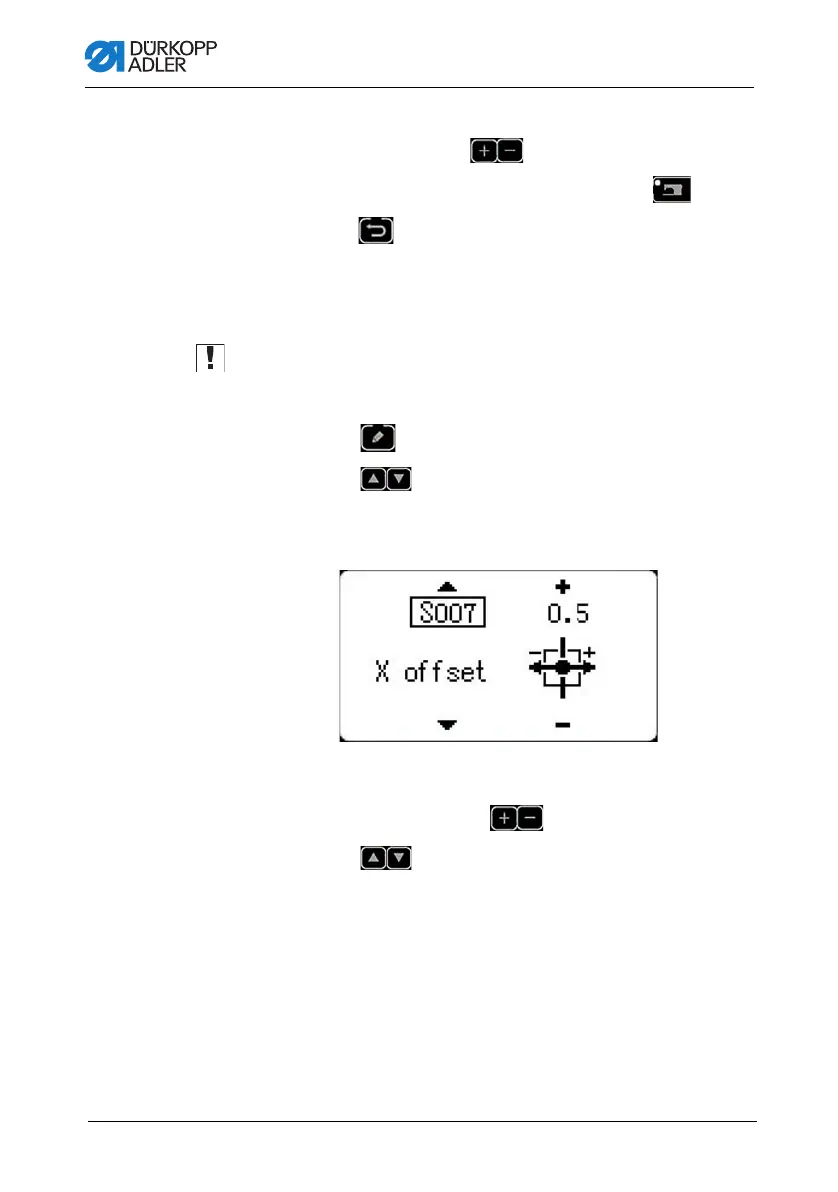

Fig. 33: Creating a new seam pattern (6)
23. The increment for the X-axis can be set to 0.1 mm. Set the
value to 0.5 mm using the buttons.
24. Press the buttons
The alignment of the Y-axis is displayed as 0.0 mm.
