Chapter 3: Installation and Testing

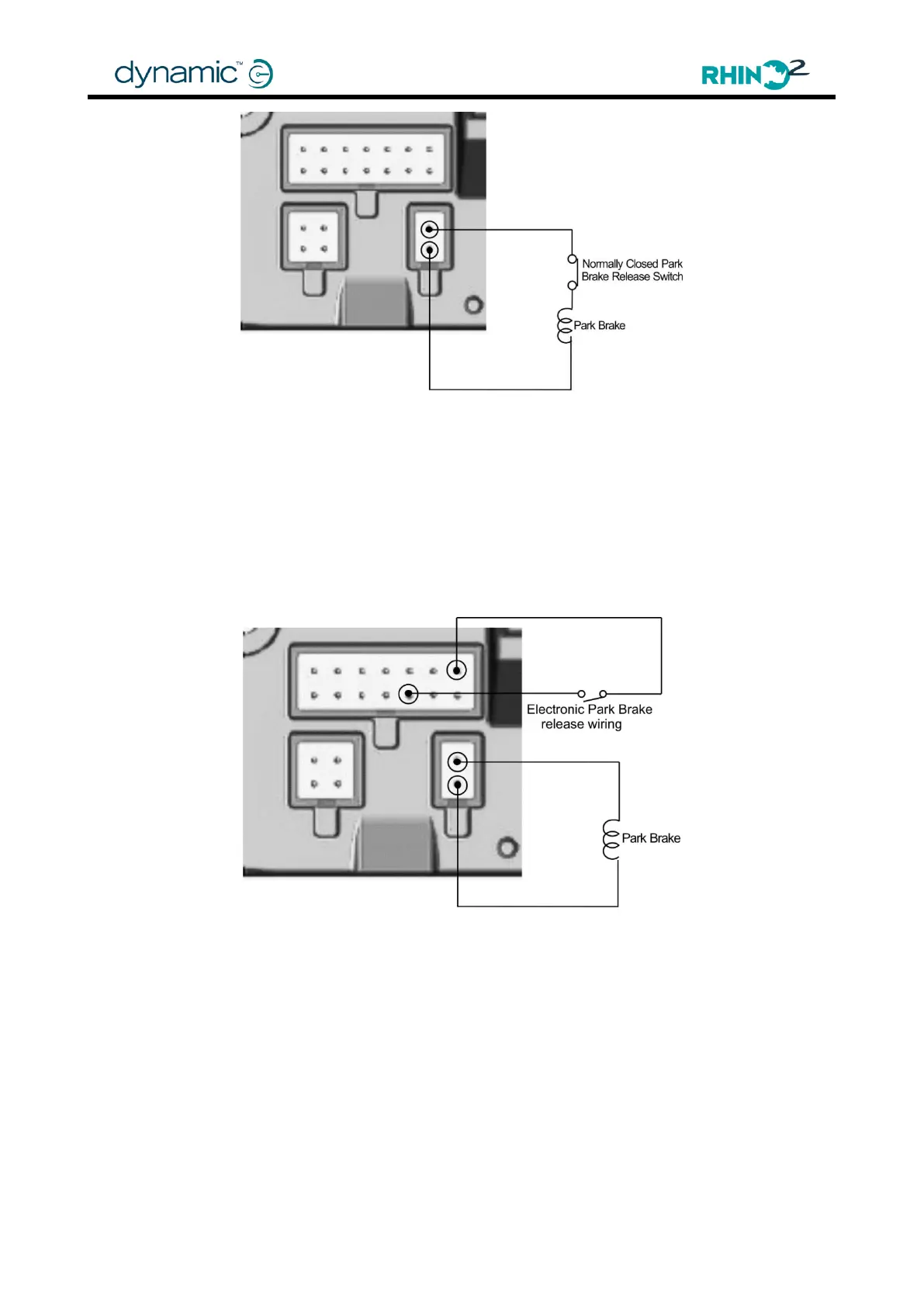

Alternative Park Brake Wiring using a mechanical release lever
Alternatively, a normally closed micro-switch can be placed in series with the park brake. This
will cause a Flash Code 5 to be displayed and the scooter will be unable to drive. To clear
the fault, engage the park brake and turn the power off and then on again.
If the park brake is released when the scooter is off, the RHINO2 limits the speed of the scooter
if the speed of the scooter is higher than the value that is set with the Roll-away Speed
parameter (4.4.3.14). This is to make sure that the scooter is limited to a safe speed on a slope
while the park brakes are released.
<
Electronic Park Brake release wiring
The park brake may also be released electrically by activating a switch in the tiller.
Park brake release functionality is available on any of the Multi-function Inputs (3.11.1). Set
the corresponding Pin [X] Function parameter (4.4.9.1) to 'Release Brake'.
The switch can be configured to be active in any of six states. Refer to Section 3.11.1.1 for
further details about Active States.
