Dynamic RHINO2 User Manual

Chapter 3: Installation and Testing
27

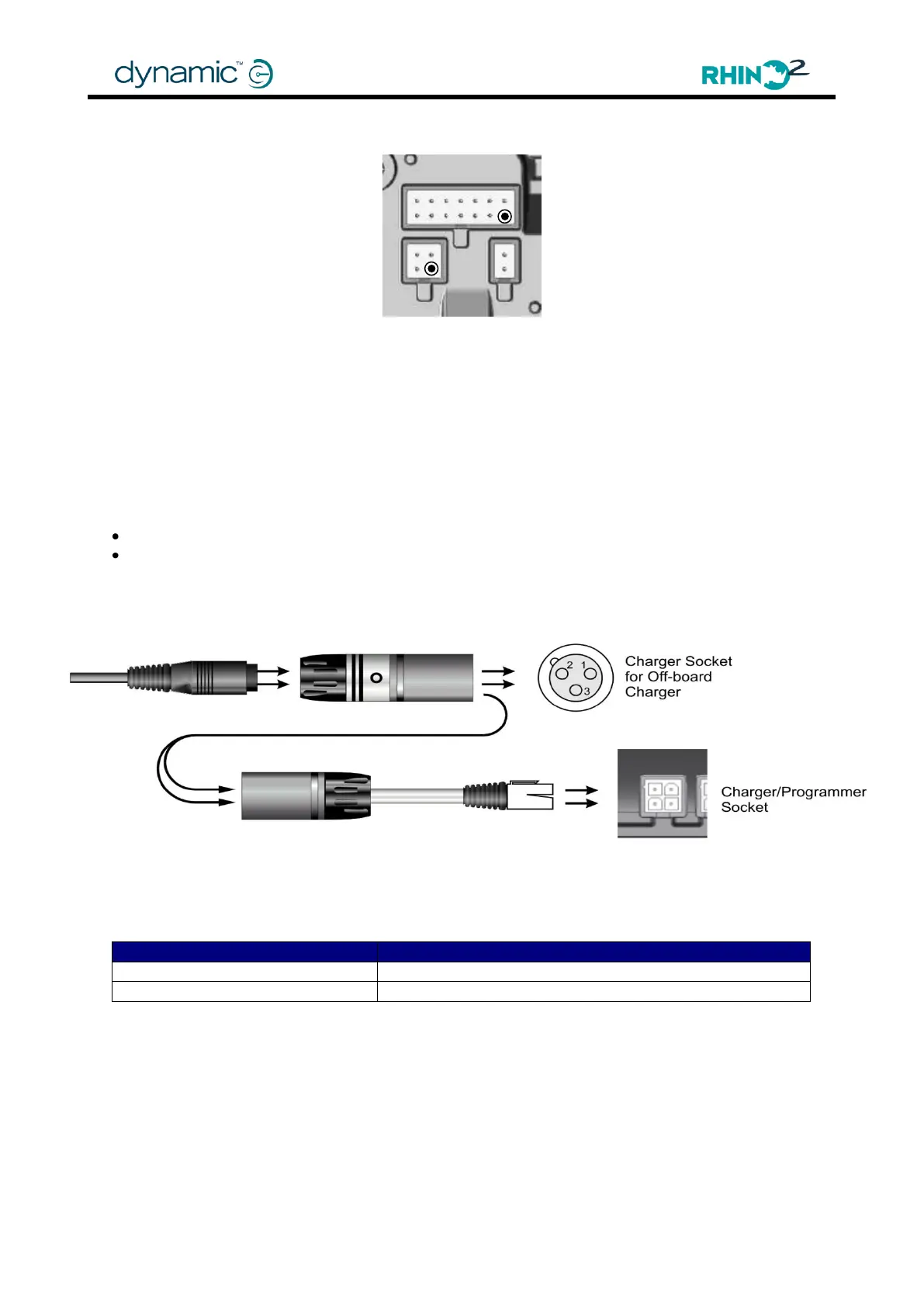

3.7.2 Programmer Connections
Pin 14 of the Tiller Connector and pin 4 of the charging/programming connector can both
be used for programming the RHINO2. Charging and programming cannot occur using the
same inhibit pin at the same time.
The RHINO2 programming adapter will plug directly into an off-board charger socket or into
the 4-pin Molex Mini-Fit Junior connector with the use of the AMP programming adapter. If an
on-board charger is installed, it will be necessary to disconnect it prior to programming
through this connector.
The RHINO2 can be programmed with two different programming tools:
The DX-HHP hand held programmer (see 4.1)
The PC-based Wizard programmer (see 4.2)
Programming socket
Adaptors needed
XLR Charger socket
DWIZ-ADAPT
Charger/Programmer socket
DWIZ-ADAPT + DR-PRGLM02
DR-PRGLM02 Connector Adaptor
DWIZ-ADAPT
Programming Adaptor
DX-HHP or Wizard
