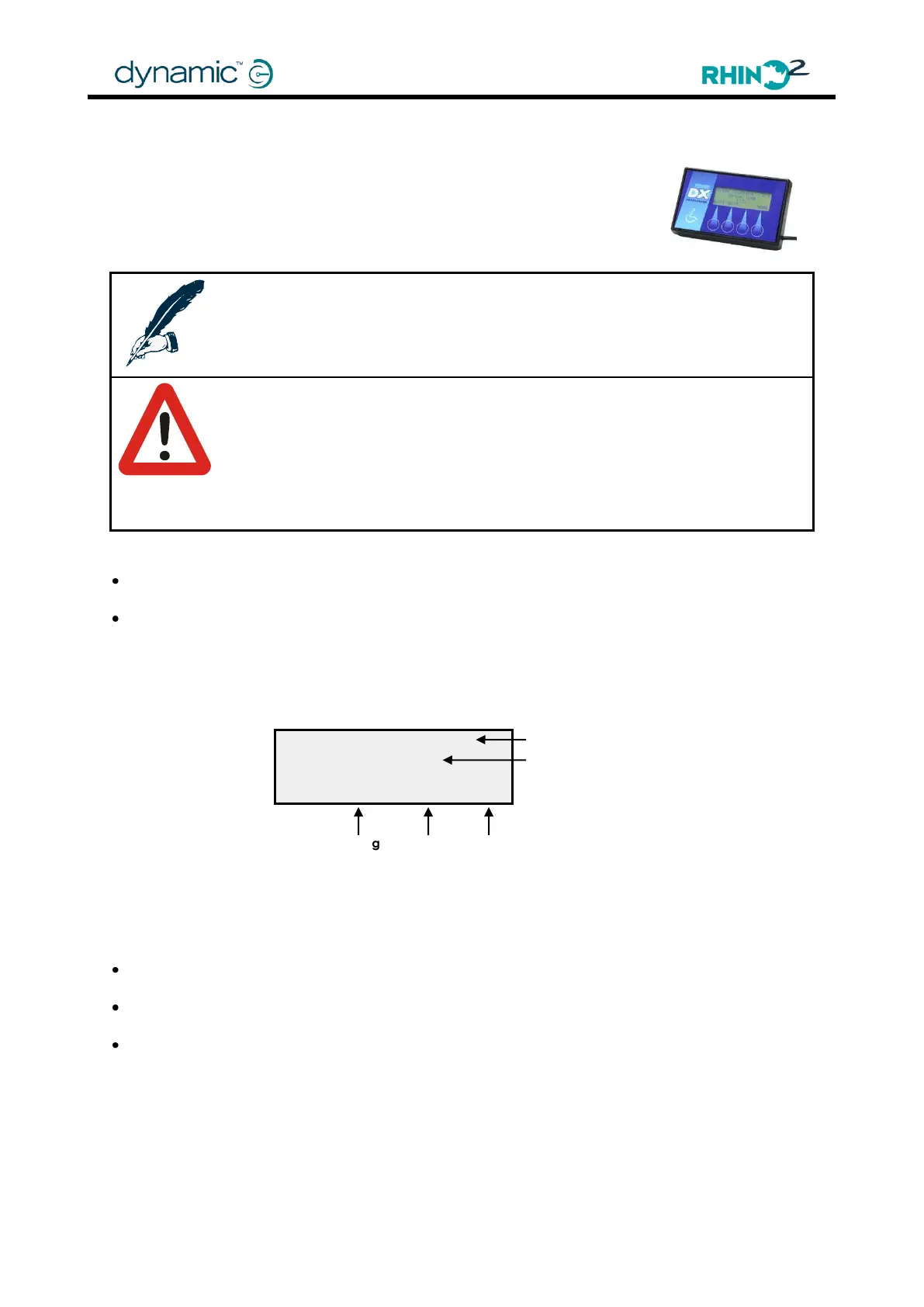

Chapter 4: Programming the Rhino2
4.1 The Hand Held Programmer (HHP)
The DX-HHP Hand Held Programmer (HHP) is a programming tool that
gives access to drive parameters (such as speed and acceleration) and
throttle calibration. A technician mode additionally gives access to
system settings such as load compensation, and can read extensive
system diagnostics such as motor voltage.
Note:
The Wizard PC-based programmer has an HHP emulator mode:
Tools -> Plug-ins -> HHP Emulation
Warning:
The DX-HHP is for use only by scooter manufacturers and their authorised
dealers. It is not for use by the scooter user. Dealers may only program
parameters as instructed by the scooter manufacturer.
The DX-HHP Manual should be read and understood before attempting to use
the HHP.
Turn on the scooter before you connect the programmer to the RHINO2.
All changes are saved immediately, it is not necessary to disconnect the HHP or to cycle
the power to save changes. For this reason it is not possible to cancel a change, other
than to set the parameters back to their original settings manually.
The following sections describe the menus of the HHP and give a parameter listing if
applicable.
Programming menu, 4.1.1
Diagnostics menu, 4.1.2
Technician menu, 4.1.3
Dynamic 2GS VX.XX
S y s t e m O K
P R O G D I A G T E C H
Menu
Menu
Programmer Main Menu Screen
Menu
Faults are shown here
Press DIAG for details
Controller Software Version
To Next Page
