3.1. Scope of Delivery
MPORTANTI
Check the packaging and the contents for damage. Check that delivery is complete and agrees with the shipping documents and
your order. If damages occurred or any items are missing, please contact the manufacturer.
The scope of delivery
• IS-6000 Doppler transmitter
• Area velocity sensor or insertion sensor including cable
• User manual
Optional Accessories
• External hydrostatic level sensor or external ultrasonic level sensor
• Integrated LTE/HSPA+/GPRS (4G/3G/2G) modem incl. 4G/LTE dipole antenna
• Mounting systems (sensor mounting plates, in-pipe tension rings, scissors rings)
3.2. Storage
Store the equipment in a dry and dust-free place. Avoid durable exposure to direct sunlight. Store the device ideally in its
original packaging. Storage temperature: -4…158° F (-20…70°C), ideally 68° F(20°C).
3.3. Nameplate
OTE: N Check the device nameplate to make sure that the device is delivered according to your order.
The nameplate (see Figure 2) indicates important data for identification and use of the measuring system.
1
2
3
4
5
6
7
8
9
Manufacturer name
Product name
Serial number transmitter (S/N)
Power supply data
Ambient temperature range
Manufacturing date mm/yyyy
Network number
IP protection class
CE mark

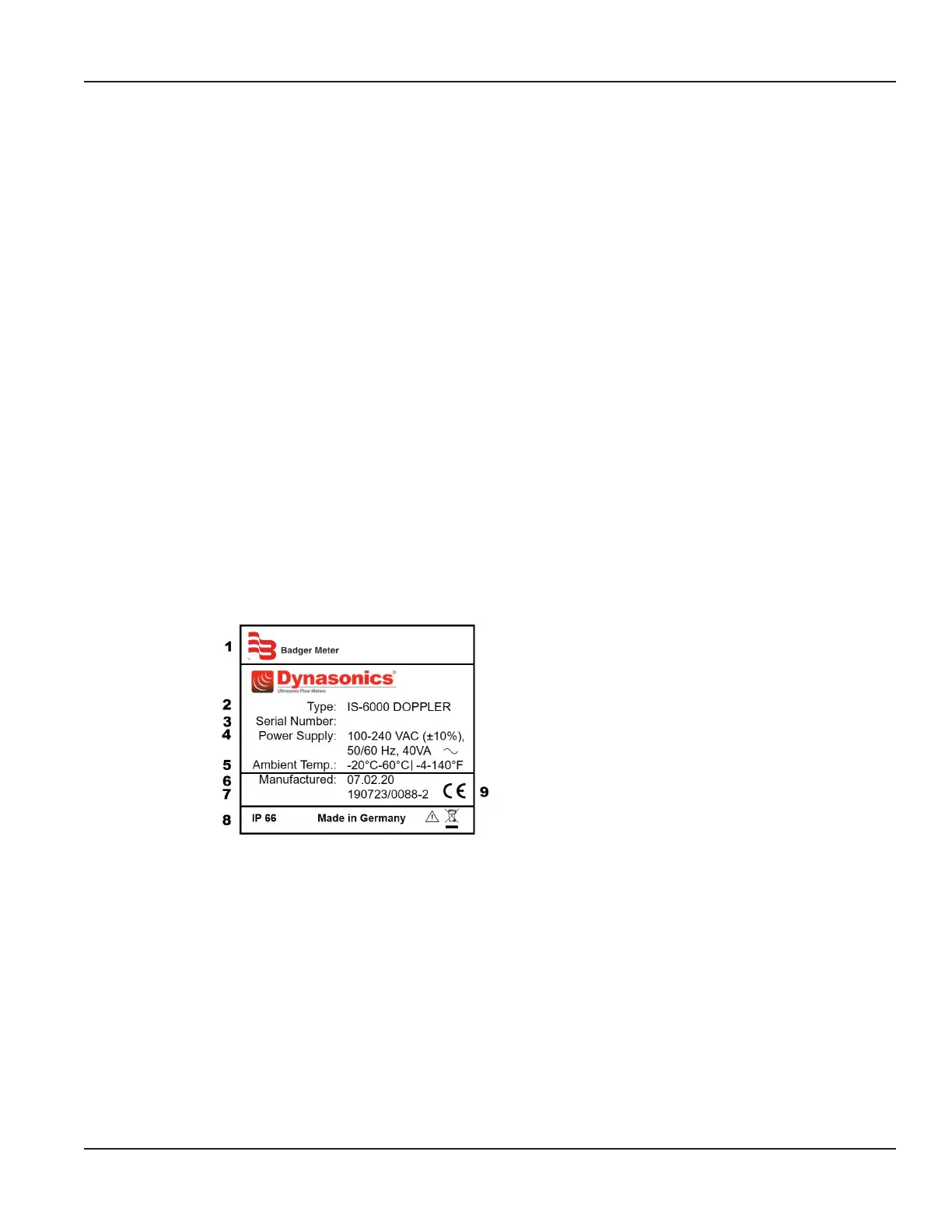

Figure 2: Nameplate (example)
3.4. Measuring System
3.4.1. Transmitter
The transmitter (see Figure 3 on page 12) is designed to operate ultrasonic velocity sensors and to calculate the flow rate.
The flow computer incorporates all of the required algorithms and software to ensure accuracy and repeatability of the
measurements. The IP66 (NEMA 4) compact flow display computer has a 4 lines × 20 characters alphanumeric LC display
and a 4-button keypad. All configuration data, measurement data, and calculated data are stored on a 16GB Micro-SD card.
It controls the measurements, calculates the flow rate and provides freely programmable current outputs, status alarm,
frequency outputs and totalizer readings. .
Product Description
Page 11 March 2021 HYB-UM-03155-EN-03
