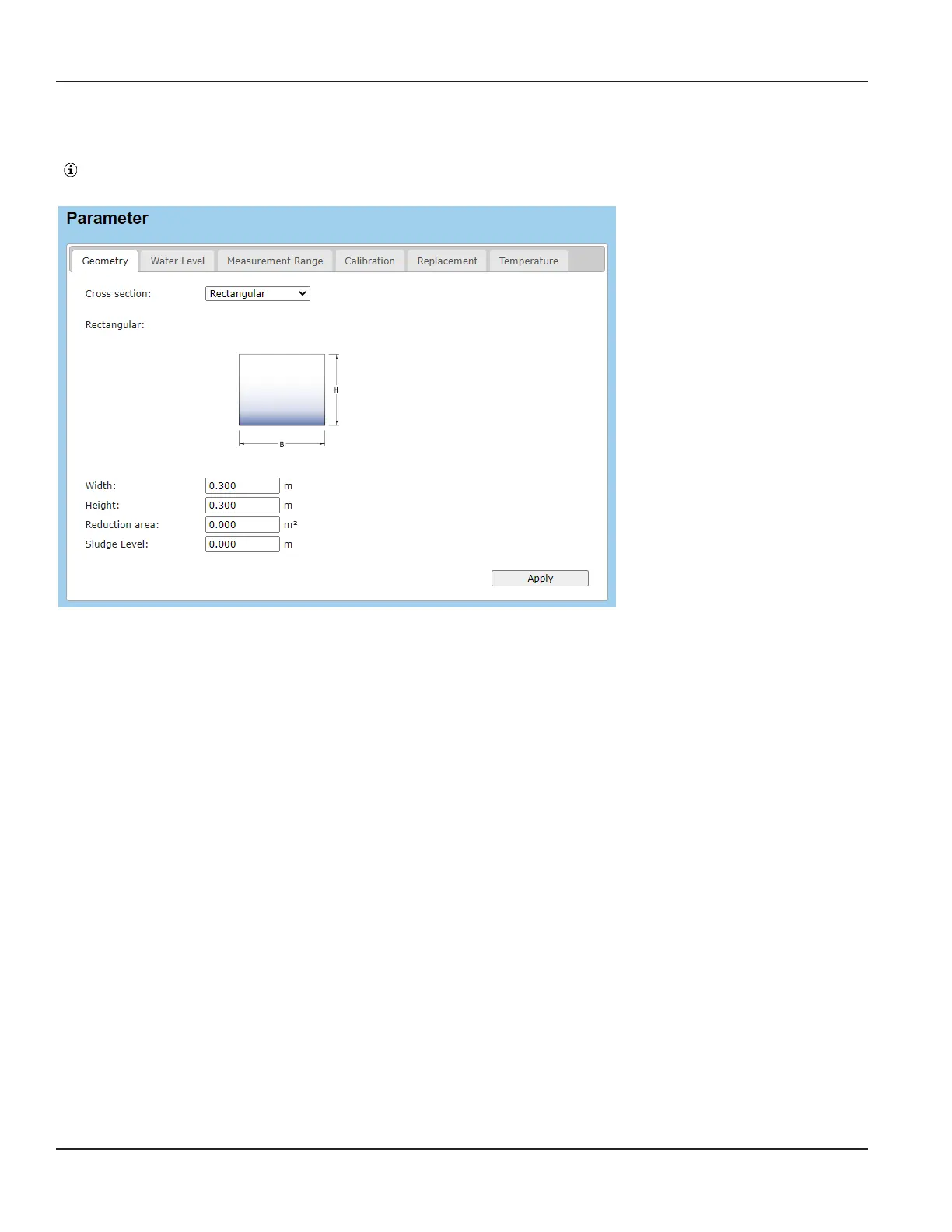

7.7.1. Geometry

Definition of cross-section shapes and dimensions, geometrical values of sewers, drains and pipelines (according to DIN 4263 [1]).

Before you start the parameter input, please check and define the displayed units in the main menu  Settings under 

Displayed Units.

Programming

Page 42 March 2021HYB-UM-03155-EN-03
