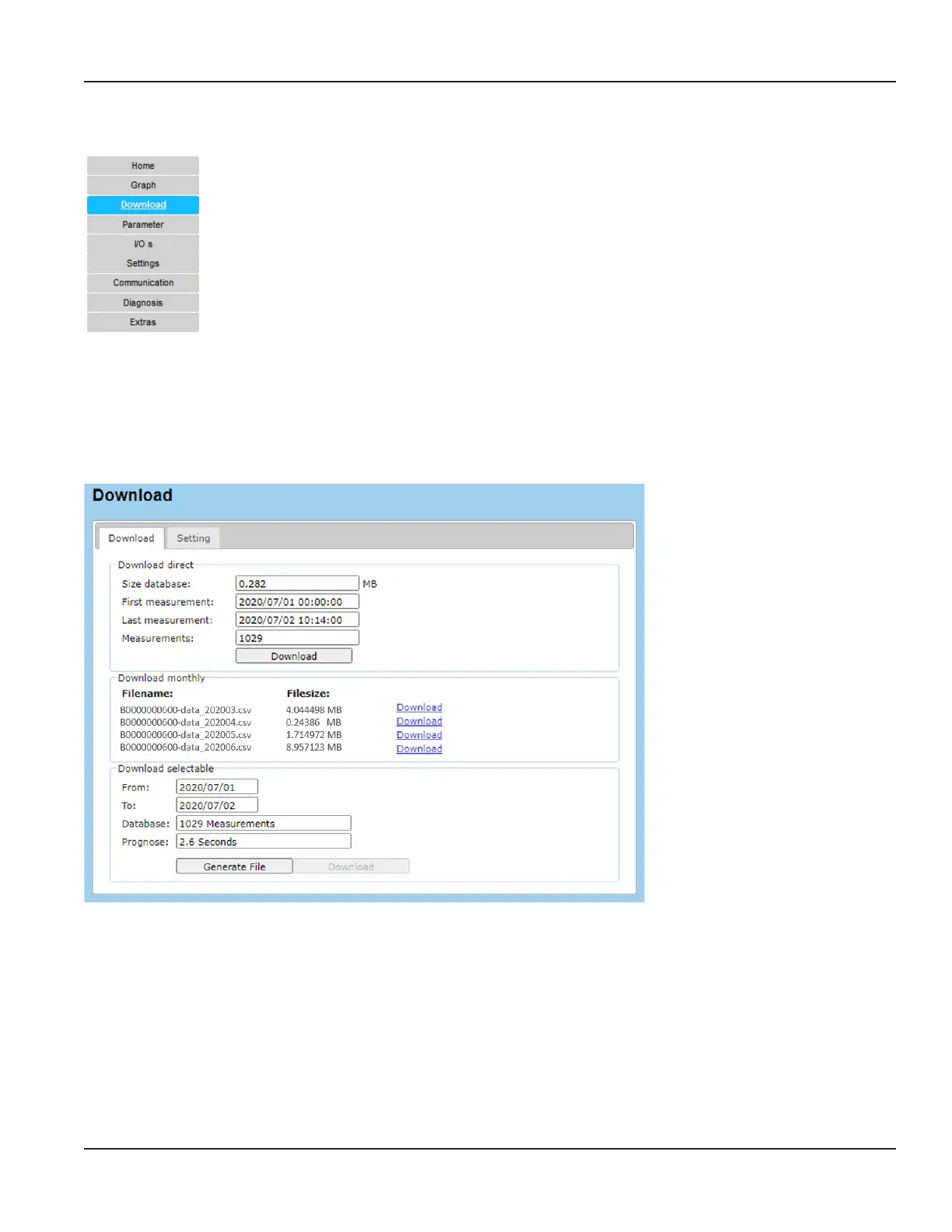

7.6. Download, Data Transfer

 Download

 Download  Setting

Options for data download.

7.6.1. Download

Settings for data download options.

• Download of entire raw data.

• Download of monthly recorded data.

• Download of data over a user defined period.

Programming

Page 39 March 2021 HYB-UM-03155-EN-03
