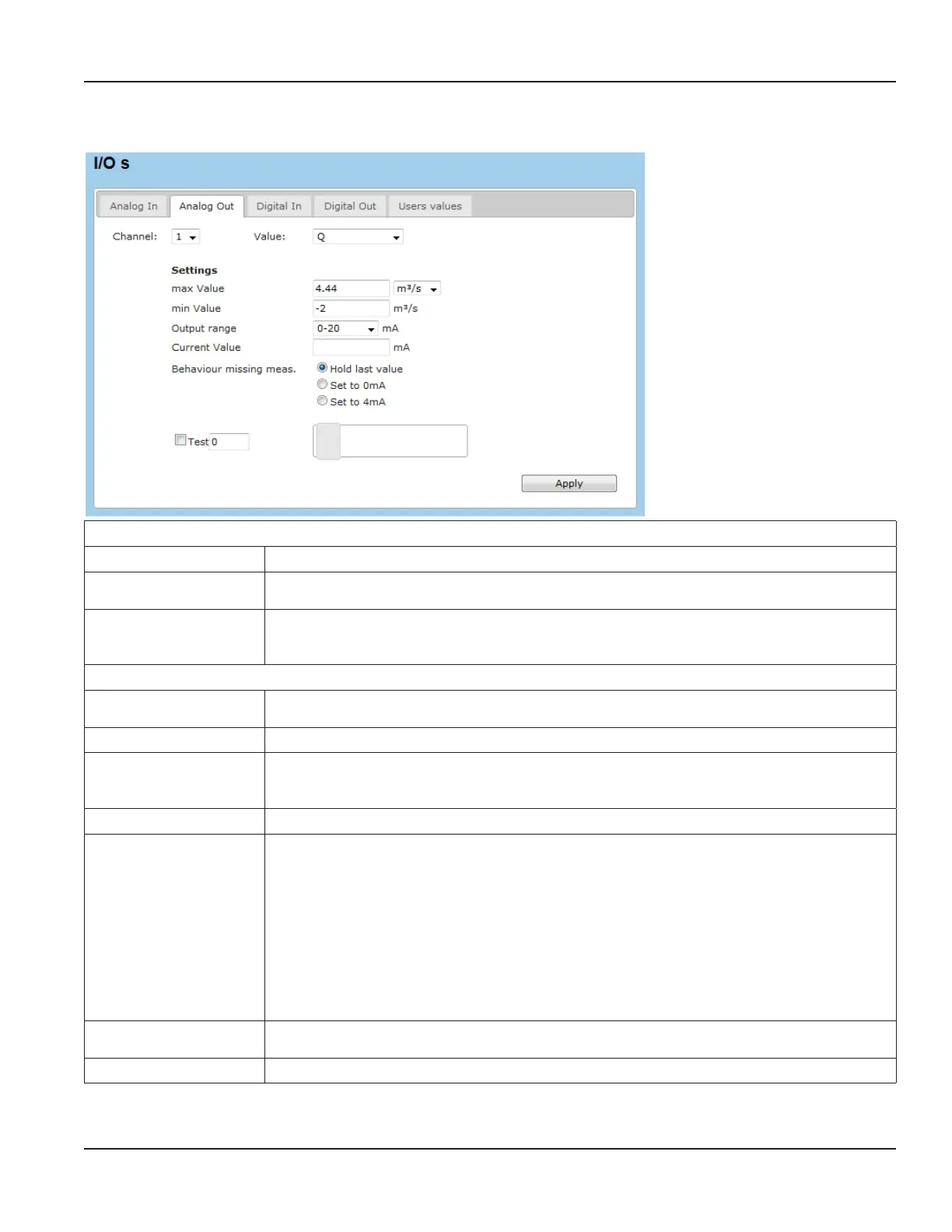

7.8.2. Analog Output
Parameterization of analog outputs.
Analog Out
Setting Description
Channel
1,2,3,4
Assignment of available channels.
> Select desired channel (analog output) from drop-down list.
Value
Q,
A …
> Select measured value / parameter from drop-down list corresponding to channel; the
corresponding unit is displayed. (for example Q)
Settings
Max Value > Enter maximum for selected parameter.
Select corresponding unit.
Min Value > Enter minimum for selected parameter.
Output range
4…20
0…20
> Select current output range in mA from drop-down menu.
Current value Display of actual output current.
Behavior missing
meas.
Choose between the following options in case of missing measuring values.
Hold last value
Tick if exported value is missing. The last current/ voltage is maintained.
Set to 0 mA
Measurement output value is set to 0 mA.
Set to 4 mA
Measurement output value is set to 4 mA.
Test > Tick checkbox to enable test.
Adjust test bar to different values.
Click Apply to save settings.
Programming
Page 65 March 2021 HYB-UM-03155-EN-03
