dynasonics Badger Meter IS-6000 Doppler User Manual

OTE: N For use and installation of IS-6000 Doppler meter in potentially explosive atmospheres, the transmitter is connected
to an explosion-proofed stationary Ex-flow rate module (according to ATEX Directive 2014/34/EU). The Ex-flow rate
module comes with an area velocity sensor with an explosion-proof connection cable.
For detailed description of the Ex-flow rate module and the connection to the IS-6000 Doppler transmitter, an
additional user manual is provided by the manufacturer.
a) b)
c) d)
139139
e)

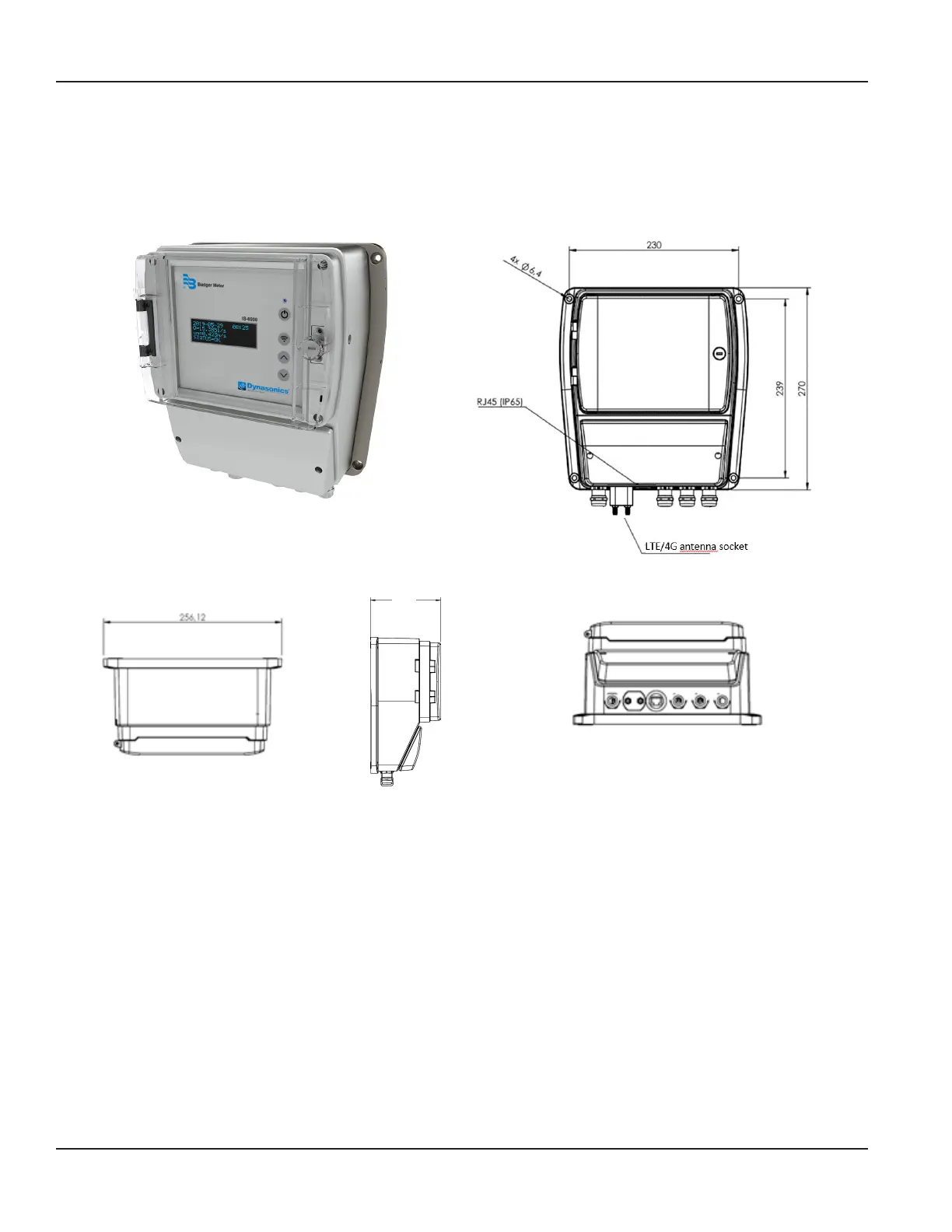

Figure 3: a),b) Front view of transmitter housing for wall installation, enclosure dimensions (in mm)
c),d) top view and side view, dimensions (in mm)
e) bottom view
Product Description
Page 12 March 2021HYB-UM-03155-EN-03
