Requirements for the installation site
The following applies to the installation location of the control cabinet:
n A suf
ficiently dimensioned power connection must be available at the installation
location of the control cabinet.
Ä Chapter 11 ‘Technical data’ on page 95
n The control cabinet and the controls attached to it must be accessible.
n Keep the control cabinet away from heat sources and protect it from frost.
n When selecting an installation location for the control cabinet, ensure that the
minimum space requirement is observed.
Wall condition
When mounting the station on a wall, ensure that the wall can support the weight of the
station on a permanent basis. For information on weight, see
Ä Chapter 11 ‘Technical
data’ on page 95 .
The wall must be level and strong enough to hold all installed equipment and
accessories.
Space requirement
Observe the minimum space requirement for the control unit.
The dimensions of the control unit are shown here:
Ä Chapter 11 ‘Technical data’ on page 95
A B
1
2

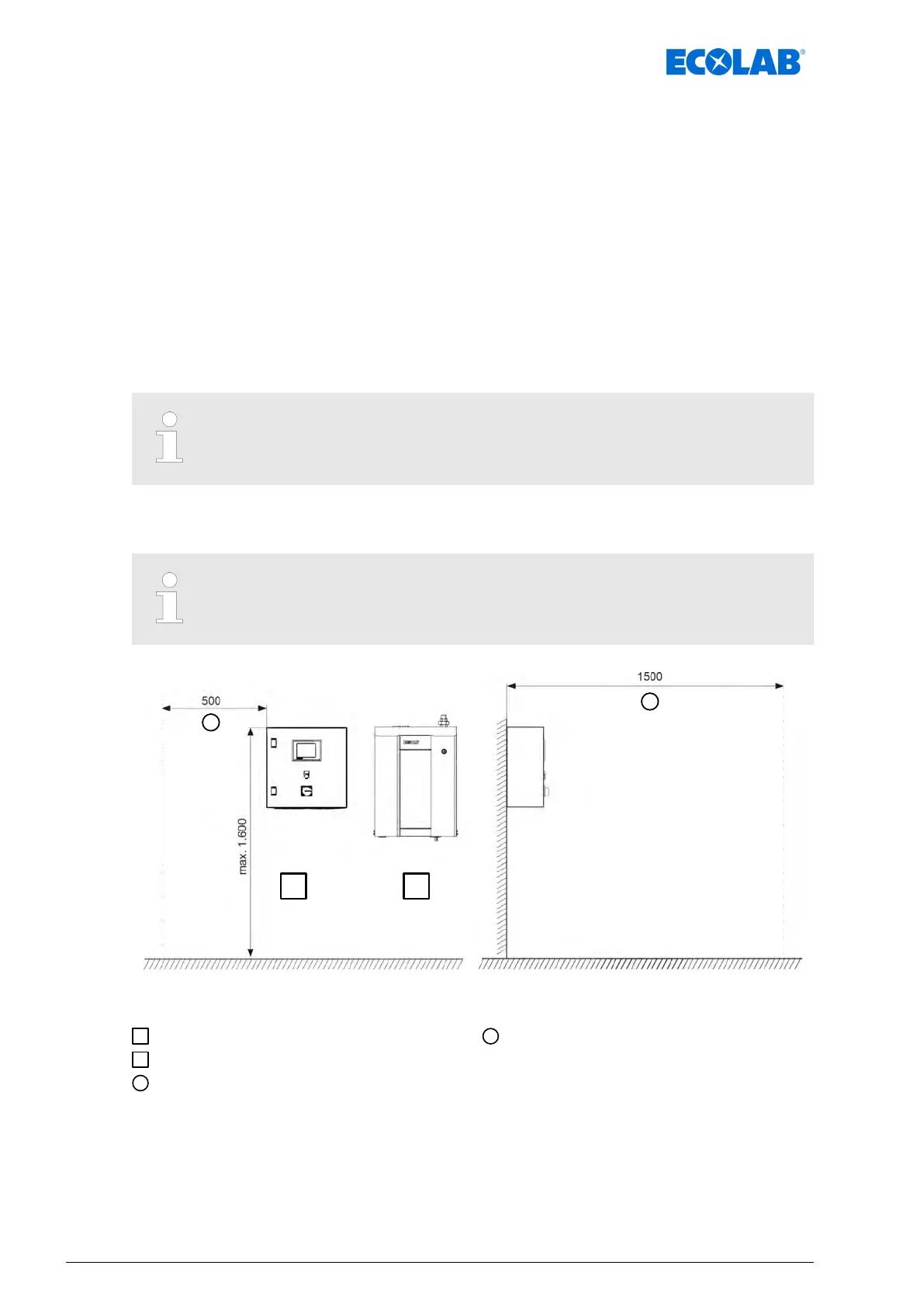

Fig. 5: Space requirement of the control unit (in mm)
A
DryExx® control unit
B
Lubo-DryExx®
1
Distance from sidewall or other equipment
2
Traffic routes and free space in front of operator
stations
