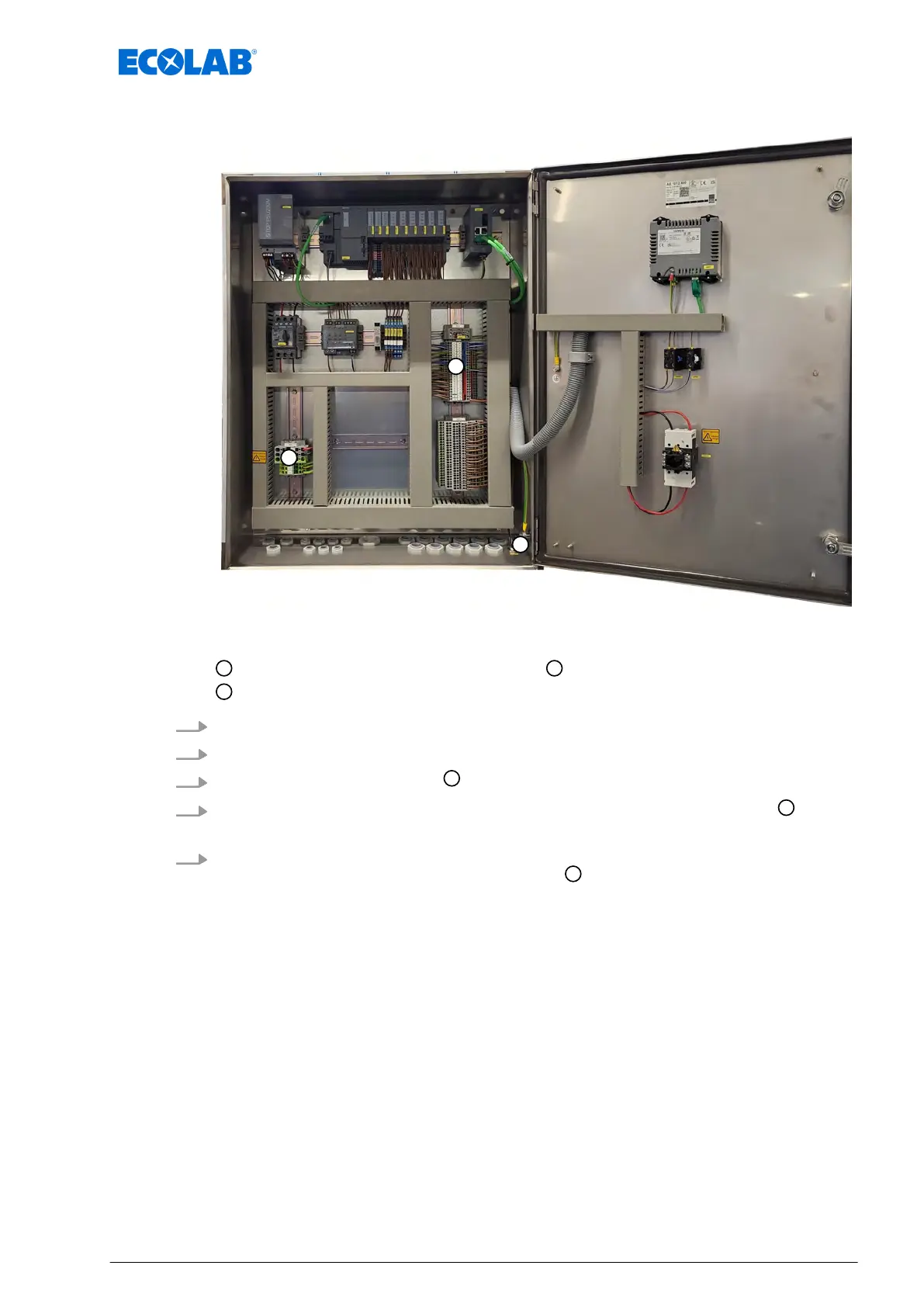

Fig. 7: Electrical installation
1
+24 V and GND connector
2
Supply terminals
3
Earth
1. Switch of
f the building power supply and secure against accidental restart.
2. Switch of
f the control cabinet main switch and secure with a lock.
3.
Connect the earth connection
3
to the nearest earthing bus on the building side.
4.
Connect the components of the DryExx
®
system to the inputs and outputs
1
of the
DryExx®-Advanced-ETH according to the circuit diagram.
5. Pull the power supply cable into the control cabinet through the relevant cable feed-
through and connect it to the supply terminals
2
.
