T

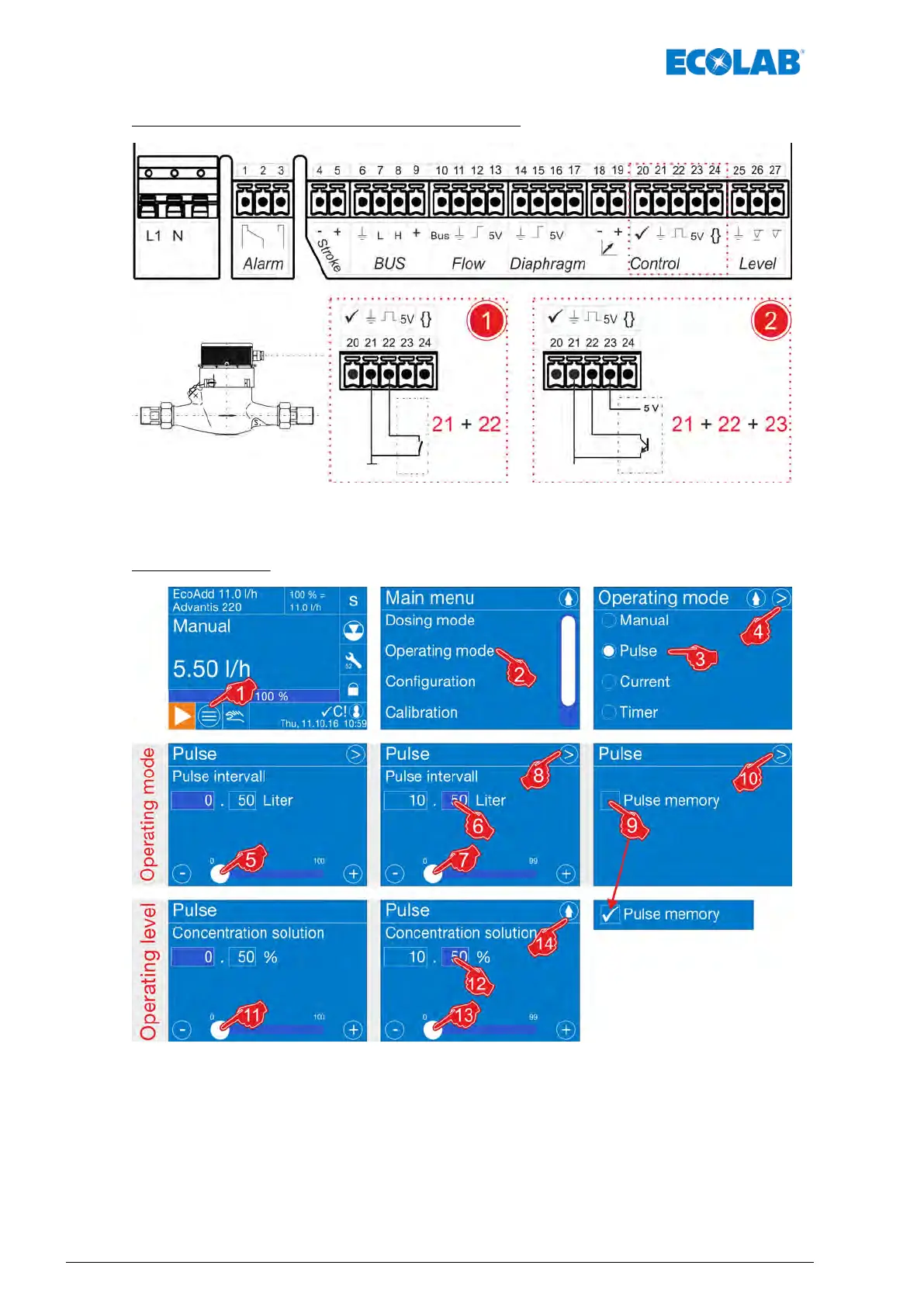

erminal assignment when using a water meter:
Fig. 84: T
erminal assignment:
‘Pulse’
1
T
erminal assignment: "floating contact"
2
T
erminal assignment: "electronic switch"
Software setting:
Fig. 85: Software setting:
‘Pulse’
Commissioning
128
Rev
. 2-05.2018
127
129
