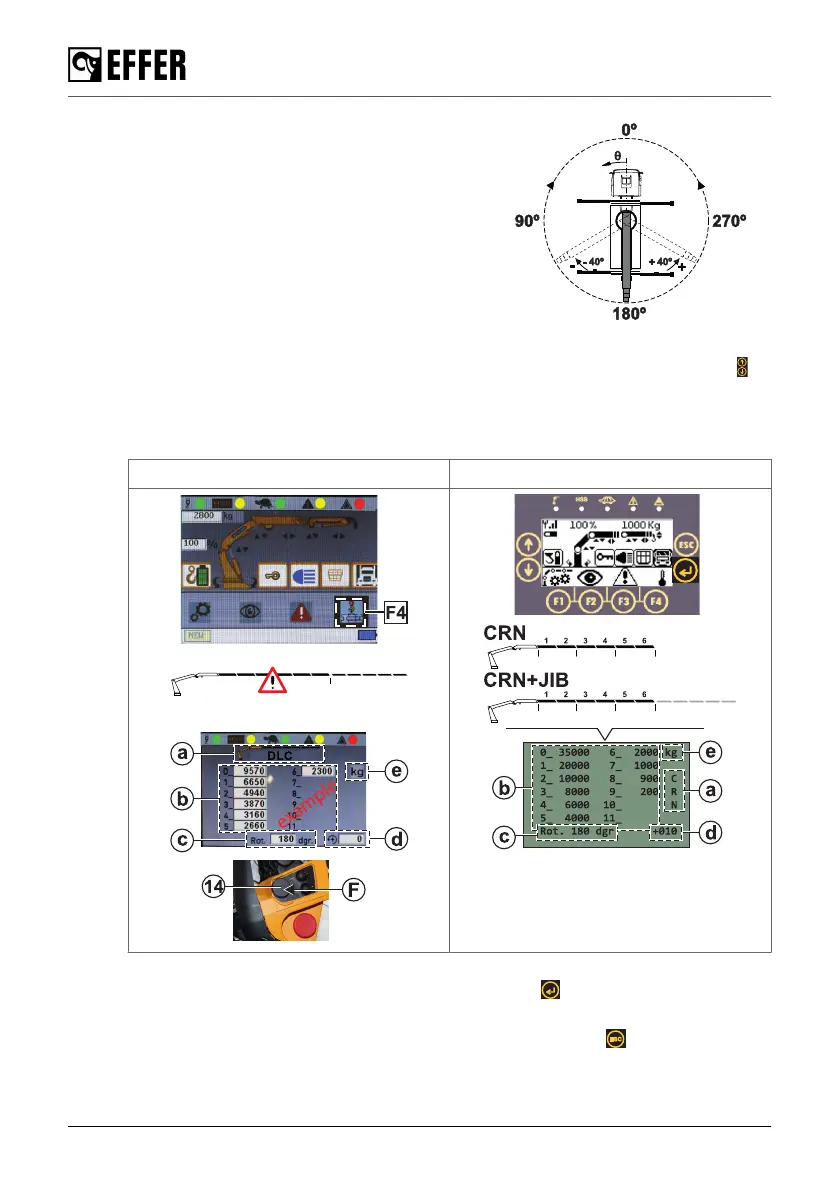

3. Read the maximum liftable loads for the
rotation current position of the crane on
the display:
a. The configuration version of the crane
or crane + JIB.
b. The load values depending on
which extensions are extended and
considering that they are in the
horizontal position.
c. The real rotation angle (e.g. 180º).
d. The angular variation (e.g. +40º / -40º)
referred to the real position (e.g.
180º). Use the rotary selector (14) in the STEADY and the arrow keys in
SCANRECO to change this value increasing or decreasing 10º at a time. The values of
the simulation will be automatically updated and displayed.
e. The unit of measurement (for example, kg or lbt).
STEADY Scanreco
4. Push ‘ENTER’, the rotary selector (14) in the STEADY or in the SCANRECO, to return
to the display screen of the load values according to the real position.
5. Push ‘ESC’, the rotary selector during 2 sec (F) in the STEADY or in the SCANRECO,
to exit the screen.
During operation
112 EFFER 265-315-395-525 Progress 2.0 CE
