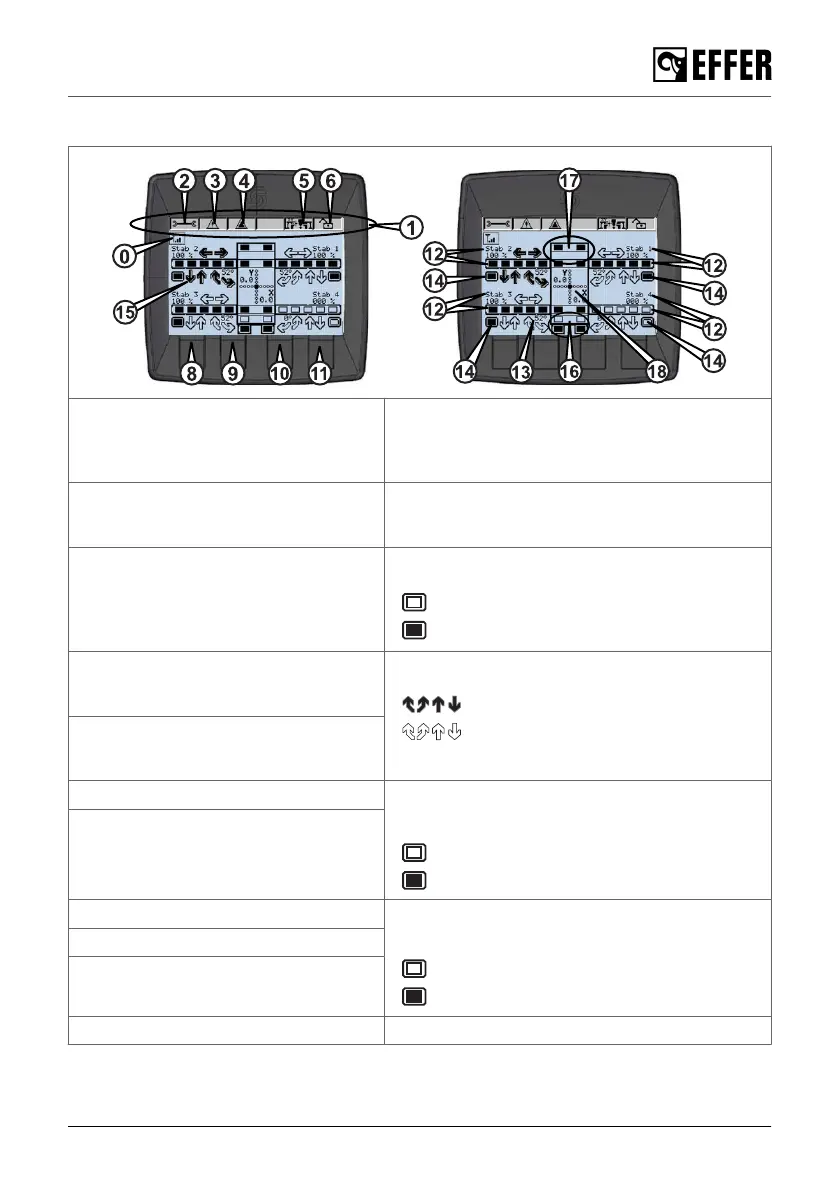

Main display for stabiliser system operation
(0) RADIO SIGNAL
Indicates the level of the radio signal.
(12) STABILISER EXTENSIONS POSITION
Indicates the position of the stabiliser extensions
in percentage (%).
(1) CRANE STATUS BAR (13) STABILISER ROTATION POSITION [option]
Indicates the angular position.
(2) MAINTENANCE ALERT
Indicates that maintenance inspection
is needed (the buzzer makes 4 beeps
every 20 minutes).
(14) CRANE STABILISER LEGS STATUS
: stabiliser legs not set on the ground.
: stabiliser legs set on the ground.
(3) ERROR ALERT
Serious error symbol.
(15) ALLOWED MOVEMENT ARROWS
: movements allowed.
: movements not allowed.
(4) WARNING ALERT
Generic warning symbol.
(5) TIPPING LIMIT ALERT [option] (16) REAR AUXILIARY STABILISER LEGS
STATUS
: stabiliser legs not set on the ground.
: stabiliser legs set on the ground.
(6) MENU ACCESS ENABLING
(8) CONFIRMATION or MENU button (17) FRONT AUXILIARY STABILISER LEGS
STATUS
: stabiliser legs not set on the ground.
: stabiliser legs set on the ground.
(9) ARROW “UP” button
(10) ARROW “DOWN” button
(11) PREVIOUS PAGE button (18) TRUCK LEVELLED STATUS [option]
The control system
