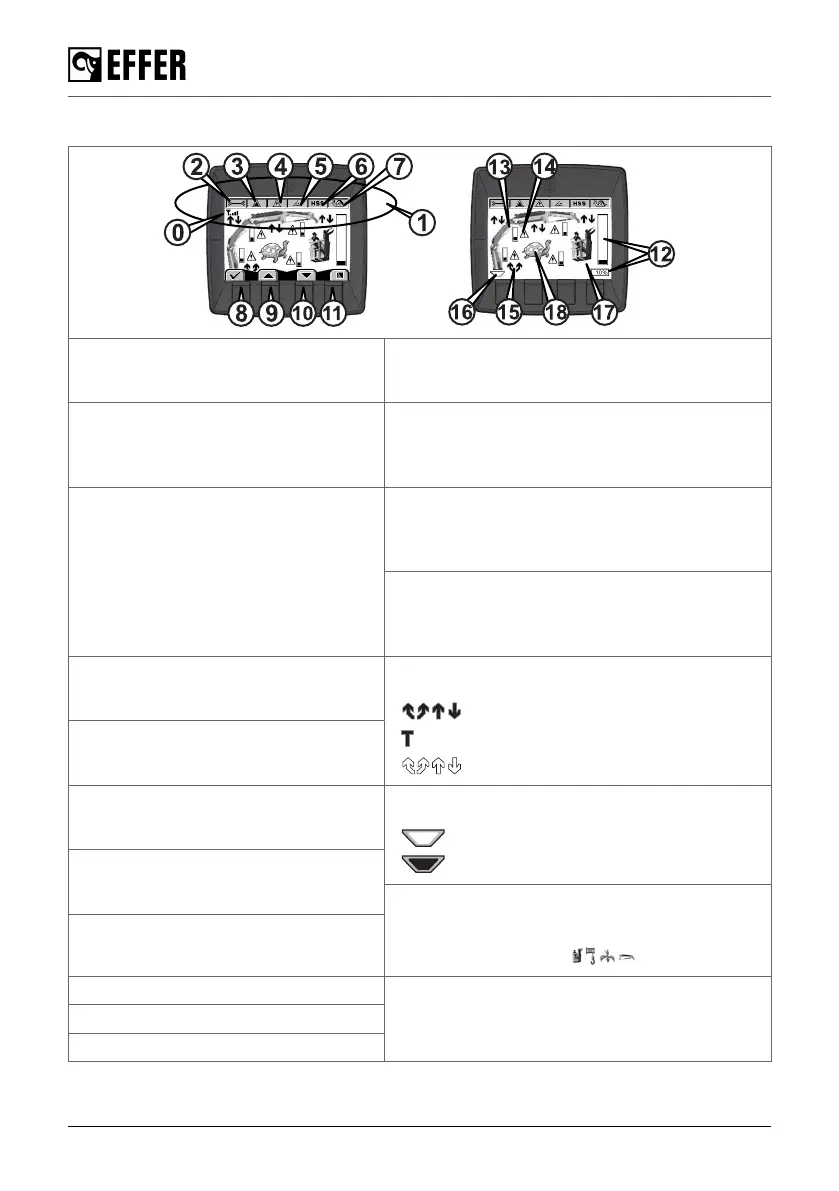

Main display for crane operation
(0) RADIO SIGNAL
Indicates the level of the radio signal.
(11) PREVIOUS PAGE button
(1) CRANE STATUS BAR (12) CRITICAL PRESSURE BAR
Indicates the percentage (%) of pressure inside
the most critical cylinder.
(2) MAINTENANCE ALERT
- Indicates that maintenance inspection
is needed (the buzzer makes 4 beeps
every 20 minutes).
- Indicates (if activated) cabin/operator
protection system.
(13) WORKING PRESSURE BAR
Indicates the percentage (%) of pressure inside
the cylinder of each single movement.
(14) WARNING OR ERROR ALERT
Indicates that the pressure in the lifting cylinder is
90% or more of the permitted one.
(3) ERROR ALERT
Serious error symbol.
(15) ALLOWED MOVEMENT ARROWS
: movements allowed.
: movements reaching the end of the stroke.
: movements not allowed.
(4) WARNING ALERT
Generic warning symbol.
(5) ANGULAR LIMIT ALERT
Angular movement limitation alert.
(16) SLEWING OPERATION ALERT
: slewing full speed operation.
: slewing reduced speed operation.
(17) USED ACCESSORY ALERT
Symbol representing the accessory used: MEWP,
Hoist, Grapple, 2nd JIB.
(6) HSS ACTIVE
Boom extension regenerating active.
(7) SPEED REDUCTION ACTIVATED
(8) CONFIRMATION or MENU button (18) AUTOMATIC SLOWDOWN ALERT
- Without symbol: full speed.
- With symbol: slowdown speed active.
(9) ARROW “UP” button
(10) ARROW “DOWN” button
