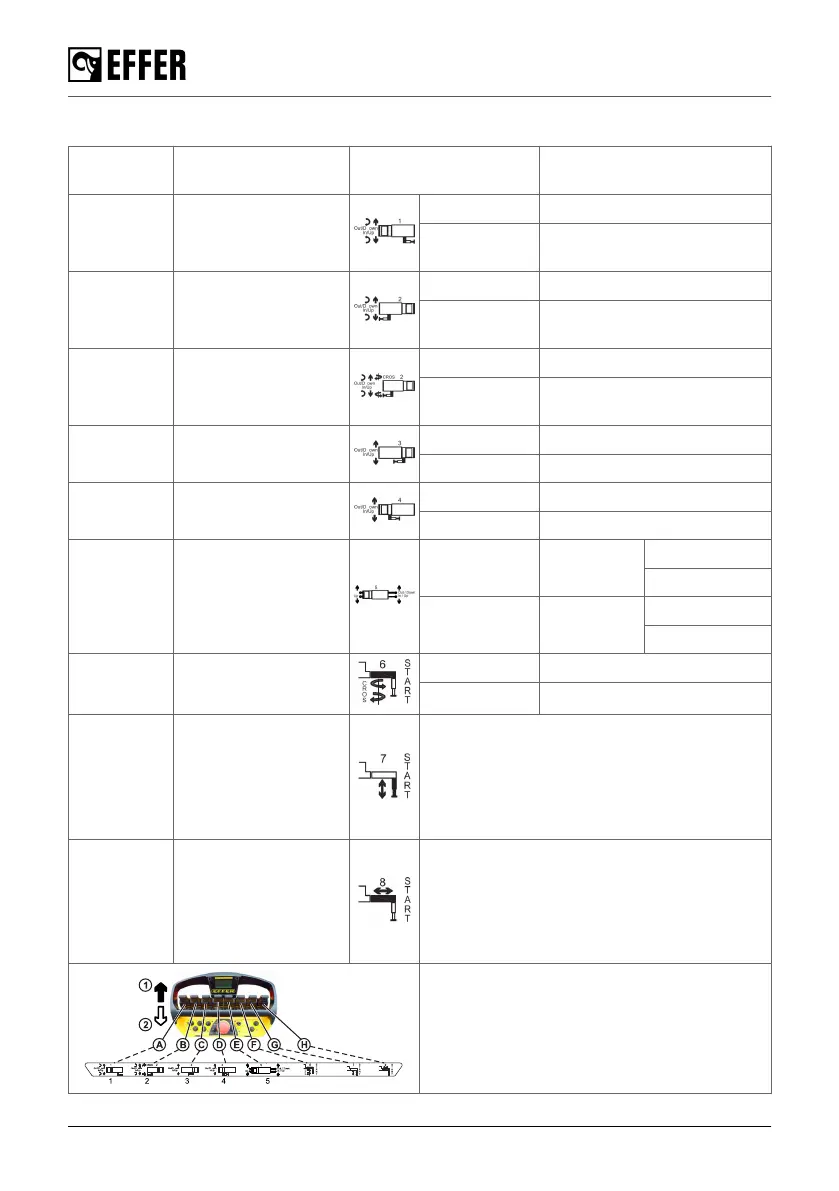

Stabiliser system (rear body installation)
Lever/
Joystick
Component
Lever/Joystick
position
Movement
(A) Left crane stabiliser
H + A1/A2 out/in (stabiliser extension)
G + A1/A2
down (CW) /up (CCW)
(stabiliser leg)
(B)
Right crane
stabiliser
H + B1/B2 out/in (stabiliser extension)
G + B1/B2
down (CW) /up (CCW)
(stabiliser leg)
(B)
Right crane
stabiliser (CroSStab
option)
H + B1/B2 out/in (stabiliser extension)
G + B1/B2
down (CW) /up (CCW)
(stabiliser leg)
(C)
Right auxiliary
stabiliser
H + C1/C2 out/in (stabiliser extension)
G + C1/C2 down/up (stabiliser leg)
(D)
Left auxiliary
stabiliser
H + D1/D2 out/in (stabiliser extension)
G + D1/D2 down/up (stabiliser leg)
(E)
Front/rear auxiliary
stabilisers [option]
H + E1/E2 out/in
H in 1 Front
H in 2 Rear
G + E1/E2 down/up
G in 1 Front
G in 2 Rear
(F) CroSStab [option]
F + B1 rotation out
F + B2 rotation in
(G) Stabiliser leg
In position 1 or 2, activates the stabiliser leg
movements.
Use then the levers from (A) to (E) to
operate the desired stabiliser extension in
the desired direction 1 or 2.
(H) Stabiliser extension
In position 1 or 2, activates the stabiliser
extension movements.
Use then the levers from (A) to (E) to
operate the desired stabiliser extension in
the desired direction 1 or 2.
CW: clockwise rotation of stabiliser leg.
CCW: counterclockwise rotation of stabiliser
leg.
The control system
