Effer 265 - Page 75

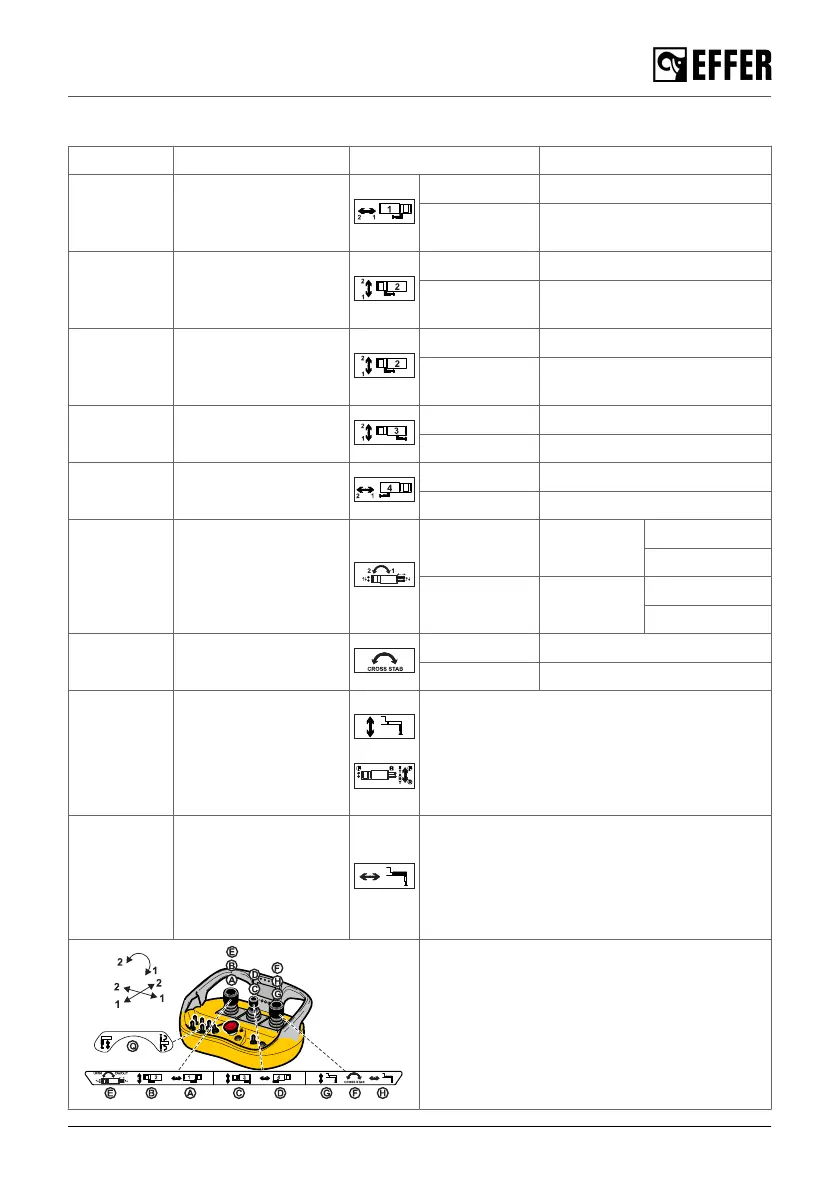

Stabiliser system with joystick (rear cabin installation)
Joystick Component Joystick position Movement
(A)
Right crane
stabiliser
H + A1/A2 out/in (stabiliser extension)
G + A1/A2
down (CW) /up (CCW)
(stabiliser leg)
(B) Left crane stabiliser
H + B1/B2 out/in (stabiliser extension)
G + B1/B2
down (CW) /up (CCW)
(stabiliser leg)
(B)
Left crane stabiliser
(CroSStab option)
H + B1/B2 out/in (stabiliser extension)
G + B1/B2
down (CW) /up (CCW)
(stabiliser leg)
(C)
Left auxiliary
stabiliser
H + C1/C2 out/in (stabiliser extension)
G + C1/C2 down/up (stabiliser leg)
(D)
Right auxiliary
stabiliser
H + D1/D2 out/in (stabiliser extension)
G + D1/D2 down/up (stabiliser leg)
(E)
Front/rear auxiliary
stabilisers [option]
G + E1/E2 out/in
G in 2 Front
G in 1 Rear
G + E1/E2 down/up
G in 2 Front
G in 1 Rear
(F) CroSStab [option]
F + B1 rotation out
F + B2 rotation in
(G) Stabiliser leg
In any position, activates the stabiliser leg
movements.
Use then the levers from (A) to (E) to
operate the desired stabiliser extension in
the desired direction 1 or 2.
(H) Stabiliser extension
In any position, activates the stabiliser leg
movements.
Use then the levers from (A) to (E) to
operate the desired stabiliser extension in
the desired direction 1 or 2.
CW: clockwise rotation of stabiliser leg.
CCW: counterclockwise rotation of stabiliser
leg.
Selector (Q): activates/deactivates stabiliser
legs movements for tilting or up/setting them
to the ground.
The control system
EFFER 265-315-395-525 Progress 2.0 CE 75
