ESIM384 Installation and Conguration Manual v1.1

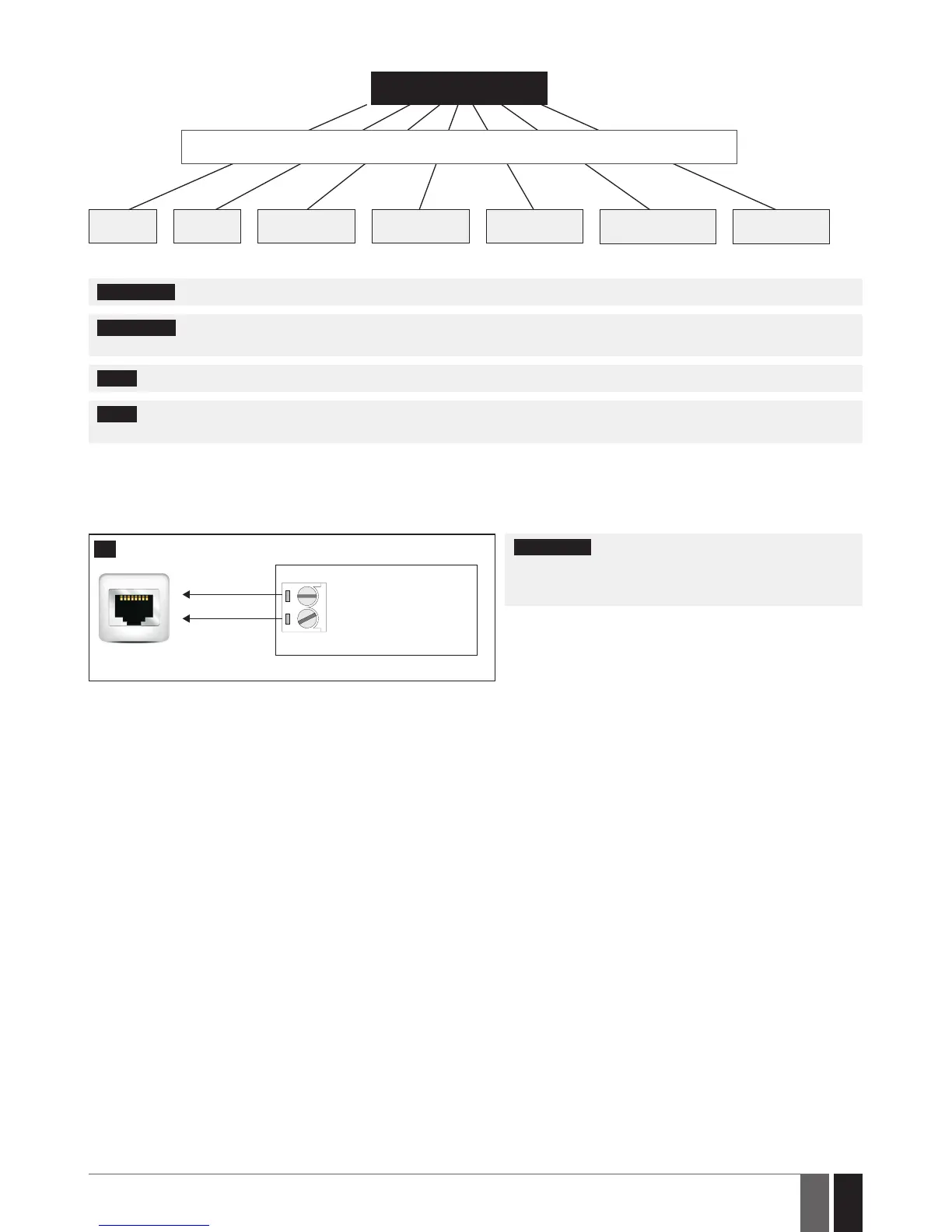

Parallel Wiring Method
ESIM384
Max. cable length: up to 100m (328.08ft)
EPGM1 EPGM1 EKB2/EKB3 EKB2/EKB3 EKB2/EKB3
ELAN3-ALARM EKB2/EKB3
ATTENTION: The cable between ESIM384 and each RS485 device must be of the same length and can NOT exceed 100m (328.08ft).
ATTENTION: When wiring more than 1 keypad and/or EPGM1 module, please ensure that the set address of each keypad and/or EPGM1
module is dierent.
NOTE: If necessary, the RS485 devices can be powered from an external 12-14V DC power supply instead of AUX+ and AUX- terminals
NOTE: You may connect only 1 EKB2/EKB3 keypad or a mixed combination of EKB2 and EKB3 keypads. The combination can consist of
up to 4 keypads in total.
For more details on RS485 interface, please refer to 32.1. RS485 Interface
2.3.8. RING/TIP
RING
TIP
ESIM384
to PSTN
(landline)
16
ATTENTION: The TIP/RING connectors and PSTN module
are NOT included in a standard ESIM384 alarm system unit.
These components are op tional and can be implemented on
request in advance.
