ESIM384 Installation and Conguration Manual v1.1
W-less signal
Level 18%
EWR2
EWR2
G
o
o
d
s
i
g
n
a
l
l
e
v
e
l
B
a
d
s
i
g
n
a
l
l
e
v
e
l
ALARM
SYSTEM
WIRELESS
DEVICE
EWR2
43

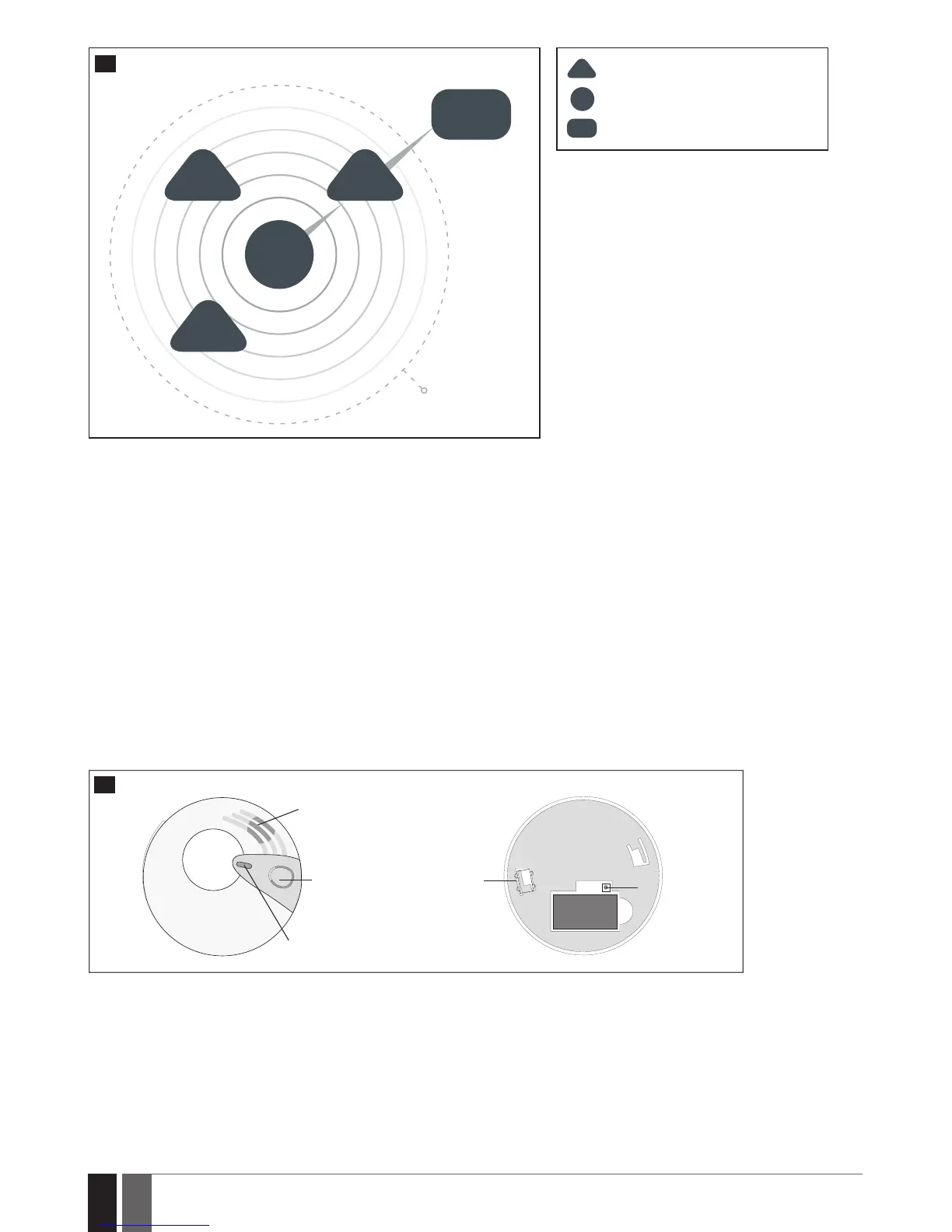

If more then one repeater is connected to Eldes
alarm system at a time, the one that receives the
strongest signal from a wireless device, will be used
to expand it’s signal range. New generation wireless
devices are not able to use repeater for boosting
their signal.
EWR2
ALARM
SYSTEM
WIRELESS
DEVICE
EWR2
ALARM
SYSTEM
WIRELESS
DEVICE
EWR2
ALARM
SYSTEM
WIRELESS
DEVICE
Wireless signal repeater
Wireless device
ELDES alarm system
19.7. EWF1/EWF1CO - Wireless Smoke/CO Detector
Main features:
• Photoelectricsensorforslowsmoulderingres
• Photoelectric Co sensor for slow smouldering res and carbon monoxide (CO) gas detection
• TESTbutton
• Non-radioactivetechnologyforenvironmentalfriendly
• Highandstablesensitivity
• Quickxmountingplateforeasyinstallation
• LEDoperationindicator
• Built-inspeakerforaudioalarmindication
• Auto-resetwhensmoke/COclears
For more details on technical specications and installation, please refer to the latest user manual of the device located at
www.eldesalarms.com
BACK SIDE
RESET button
BATTERY
SIREN
TEST button
LED indicator
D
O
N
O
T
P
A
I
N
T
FRONT SIDE
TAMPER
switch
44
19.7.1. Interconnection
The interconnection feature automatically links all wireless smoke/CO detectors that are paired with the alarm system. When any EWF1/
EWF1CO detects smoke or carbon monoxide (CO), it will sound the built-in siren and send the signal to the alarm system resulting in an in-
stant alarm followed by built-in siren sound caused by the rest of EWF1/EWF1CO wireless smoke/CO detectors. EWF1/EWF1CO device that
detected smoke/CO will auto-reset when the smoke/CO clears, while the rest of EWF1/EWF1CO smoke/CO detectors will continue to sound
in accordance with the set time period (by default - 30 seconds).
By default, the interconnection feature is enabled and the siren alarm duration is 30 seconds. To manage these parameters, please refer
to the following conguration methods.
