Electrovert Bravo 8105 - Using TC Offsets

. . . . .
CONFIGURATION SCREENS
TC Offsets Configuration
2-9317-372-00-0 Bravo™ 8105 Programming and Operations Guide 9-99
Using TC Offsets To set the TC offset so that it increases the actual heater temperature, enter a
negative value. To set the TC offset so that it decreases the actual heater
temperature, enter a positive value. Refer to Figure 9–7.

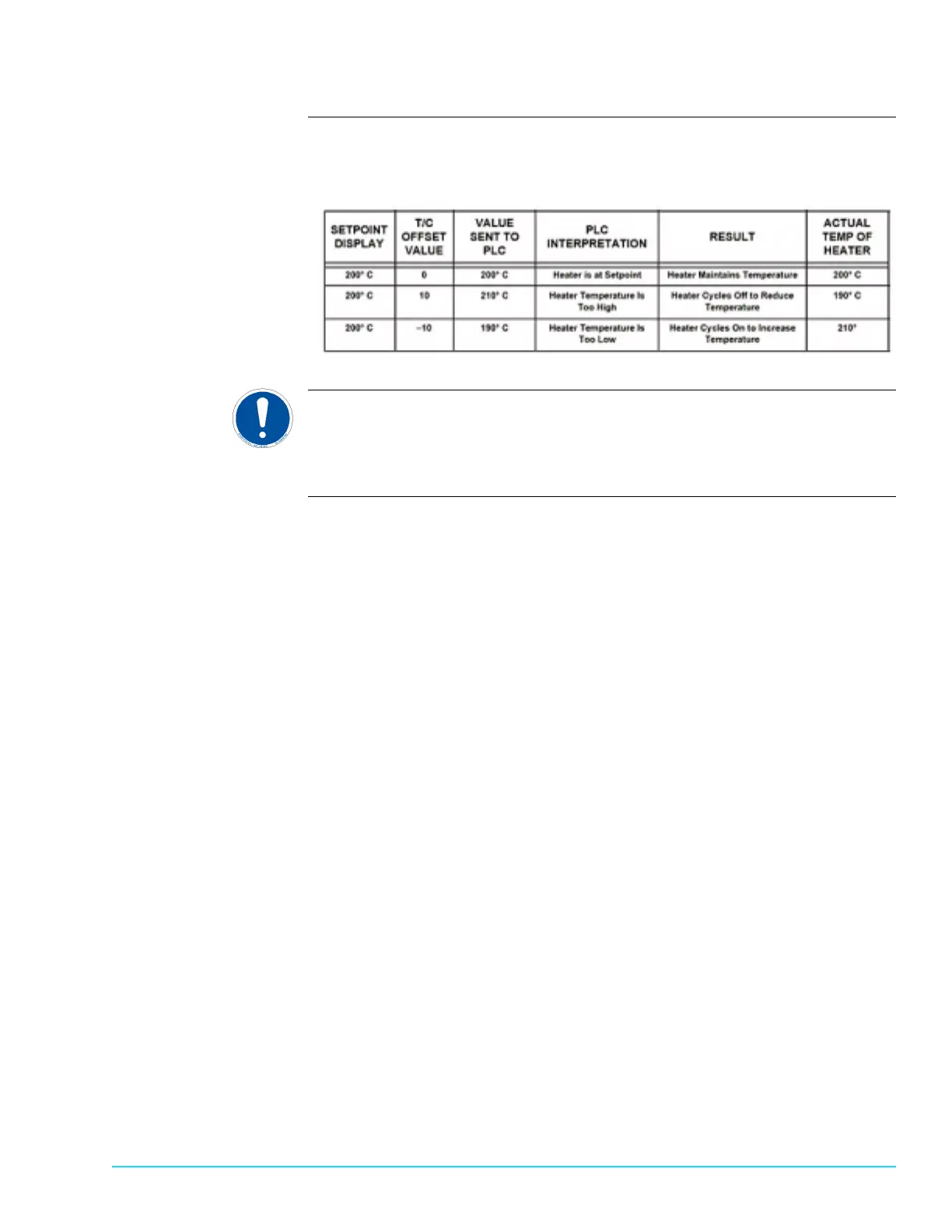

Figure 9–7
ATTENTION
Note that the box next to “Use TC Offsets” must be selected for the offsets to be
active.
