CONFIGURATION SCREENS
Conveyor Parameters Configuration
9-100 Bravo™ 8105 Programming and Operations Guide Rev. 2
9
Conveyor Parameters Configuration
Introduction The Conveyor Parameters are configured at the factory and should not be altered.
Refer to the following to verify the factory settings or to restore default values.

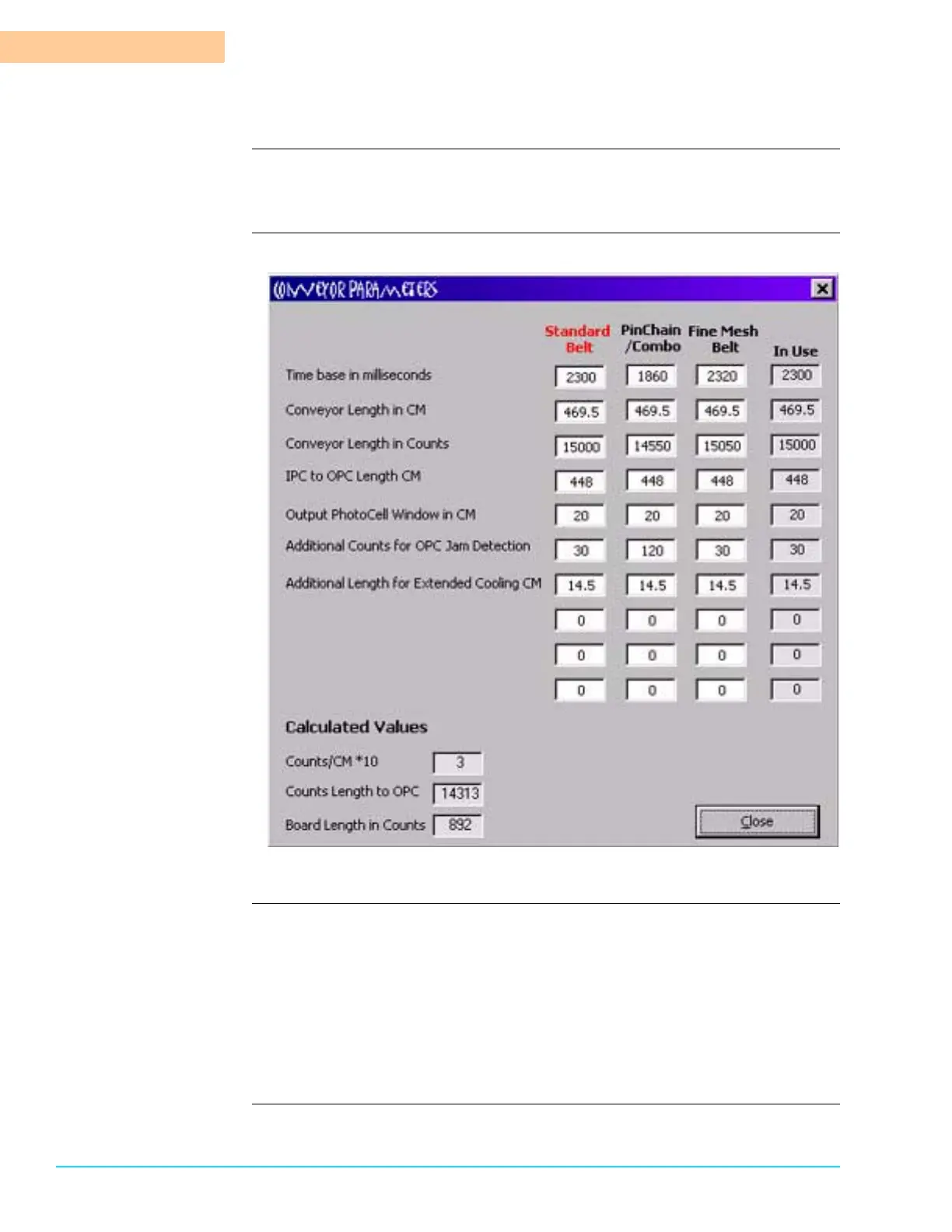

Software Screen
Figure 9–8
Conveyor Parameters Conveyor Length in CM
Length of the conveyor as measured in centimeters. It is used by the
photocell to track boards through the machine.
Conveyor Length in Counts
Number of pulses the encoder generates during the time it takes a given point
on the conveyor to travel one length of the conveyor (the distance entered in
the previous field).
