Electrovert Bravo 8105 - Process Tabular Screen

SOFTWARE NAVIGATION
Process Tabular Screen
3-36 Bravo™ 8105 Programming and Operations Guide Rev. 2
3
Process Tabular Screen
Introduction The Process Tabular Screen shows much the same information as the Process
Graphic Screen but in a format of rows and columns. Nitrogen On/Off control
may be performed through the tabular screen. IFM On/Off control may also be
performed. The cooling zone temperature does not display on the tabular screen.

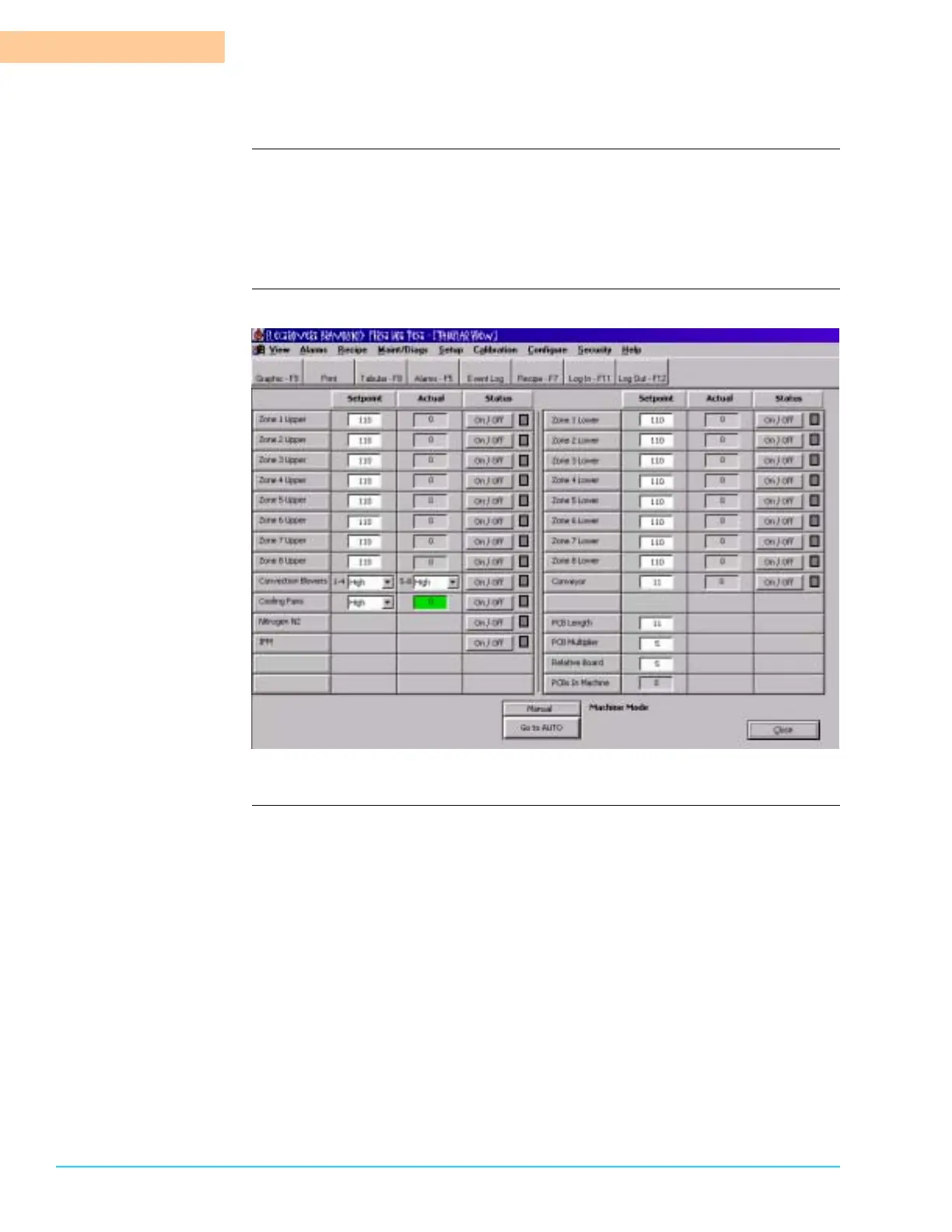

Refer to Figure 3–6.
Software Screen
Figure 3–6
