SOFTWARE NAVIGATION
Process Graphic Screen
2-9317-372-00-0 Bravo™ 8105 Programming and Operations Guide 3-33

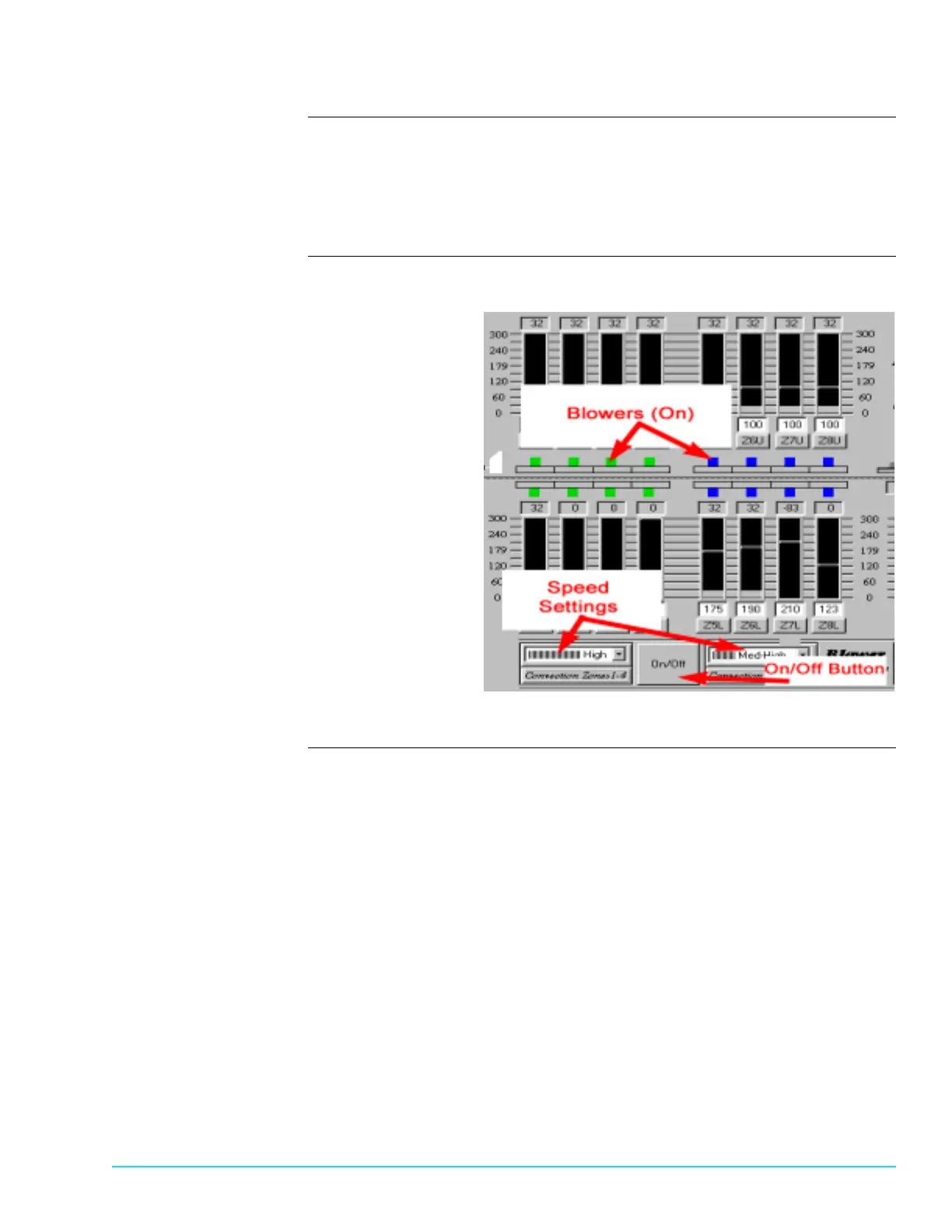

Blower Control The Blowers are turned On and Off by clicking the toggle button located between
the Blower Speed Setting drop down menus. The Blowers have four (4) speed
settings: Low, Medium– Low, Medium–High and High. Zones 1—4 and Zones
5—8 are controlled separately for speed, but toggling the On/Off button controls
all blowers.
Software
Representation
Figure 3–4
