Aux Output Instruction

This instruction controls the Aux Out output control flags. This instruction will operate any relay(s)

assigned to these flags.

The Aux Output offset timers (dd:dd) can be used to delay the operation of the output control flags.

Aux m On dd:dd Sets the Aux Out flag

Aux m Off dd:dd Clears the Aux Out flag

Aux m No-op dd:dd Does Nothing

Aux m Toggle dd:dd Toggles the Aux Out flag

m = Out1:Flag Name to Out16:Flag Name

dd:dd = 0:00 to 59:59 (minutes:seconds)

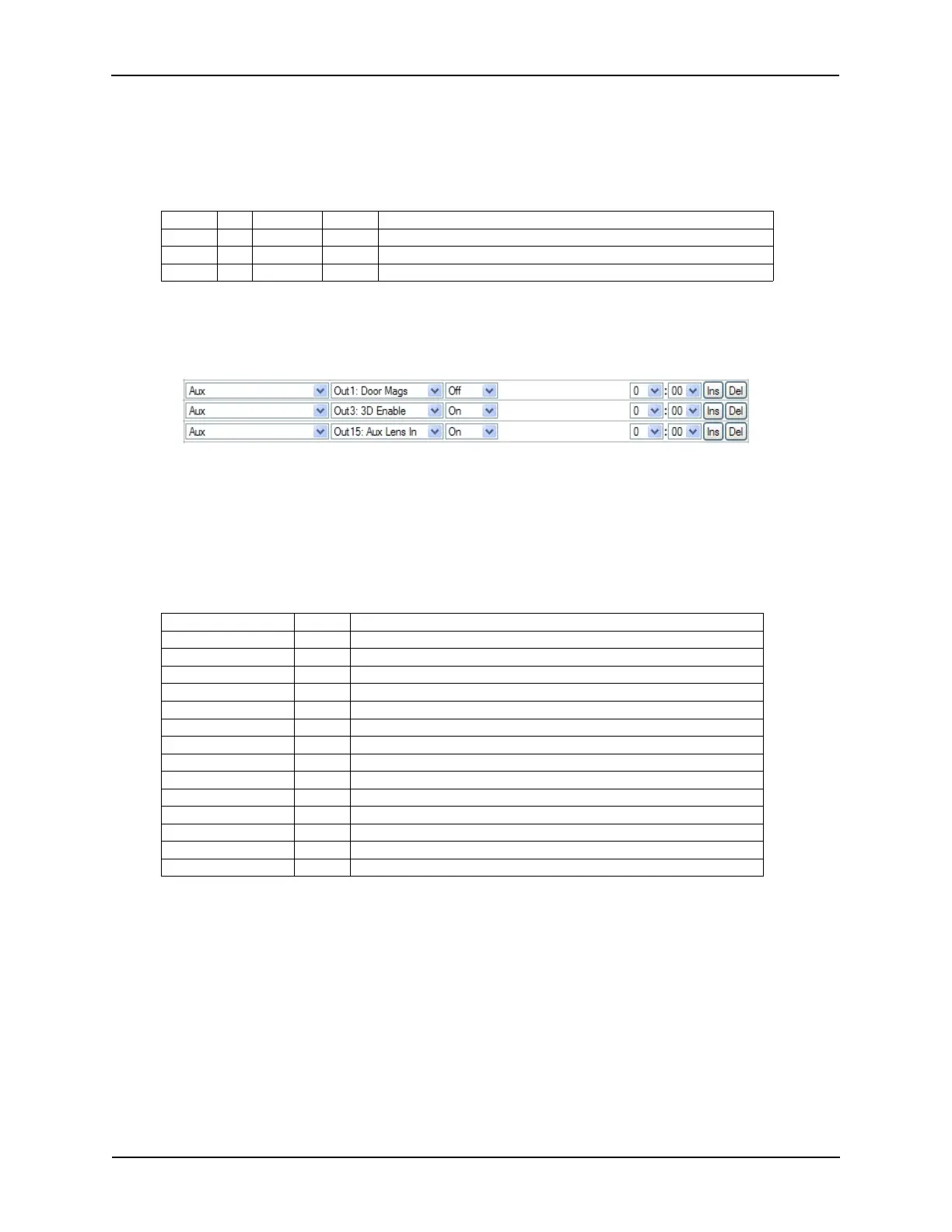

Example:

Lights Output Instruction

This instruction controls the Light state output flags for each of the sixteen light zones. It operates

any assigned relays for one of five states: Up, Down, Mid 1, Mid 2 and None. This instruction also

activates the light states on the QDC-400 dimmer control board.

The Lights offset timers (dd:dd) can be used to delay the operation of the outputs.

House Lights Up dd:dd Sets the House Lights Up flag. Clears the Mid 1, Mid 2 and Down flags

House Lights Mid 1 dd:dd Sets the House Lights Mid 1 flag. Clears the Up, Mid 2 and Down flags

House Lights Mid 2 dd:dd Sets the House Lights Mid 2 flag. Clears the Up, Mid 1 and Down flags

House Lights Down dd:dd Sets the House Lights Down flag. Clears the Up, Mid 1 and Mid 2 flags

House Lights None dd:dd Clears the Up, Mid 1, Mid 2 and Down flags

Stage Lights Up dd:dd Sets the Stage Lights Up flag. Clears the Mid 1, Mid 2 and Down flags

Stage Lights Mid 1 dd:dd Sets the Stage Lights Mid 1 flag. Clears the Up, Mid 2 and Down flags

Stage Lights Mid 2 dd:dd Sets the Stage Lights Mid 2 flag. Clears the Up, Mid 1 and Down flags

Stage Lights Down dd:dd Sets the Stage Lights Down flag. Clears the Up, Mid 1 and Mid 2 flags

Stage Lights None dd:dd Clears the Up, Mid 1, Mid 2 and Down flags

Zone* Lights Down dd:dd Sets the Zone Lights Up flag. Clears the Mid 1, Mid 2 and Down flags

Zone* Lights Mid 1 dd:dd Sets the Zone Lights Mid 1 flag. Clears the Up, Mid 2 and Down flags

Zone* Lights Mid 2 dd:dd Sets the Zone Lights Mid 2 flag. Clears the Up, Mid 1 and Down flags

Zone* Lights Up dd:dd Sets the Zone Lights Down flag. Clears the Up, Mid 1 and Mid 2 flags

Zone* Lights None dd:dd Clears the Up, Mid 1, Mid 2 and Down flags

* User-defined Zone names for Zones 3 through 16 will be displayed in the instruction.

dd:dd = 0:00 to 59:59 (minutes:seconds)

Note: This instruction controls the same House Lights and Stage Lights control flags and timers as

the House Lights and Stage Lights instructions.

Sound Output Instruction

This instruction controls the eight Sound output control flags and will operate relays assigned to

these flags to any one of nine states. This instruction also controls the sound Mute control flag. This

instruction is normally used to select the format and audio source on the cinema sound processor.

eCNA-10 Operation and Installation Manual Version 1.270-00
