29

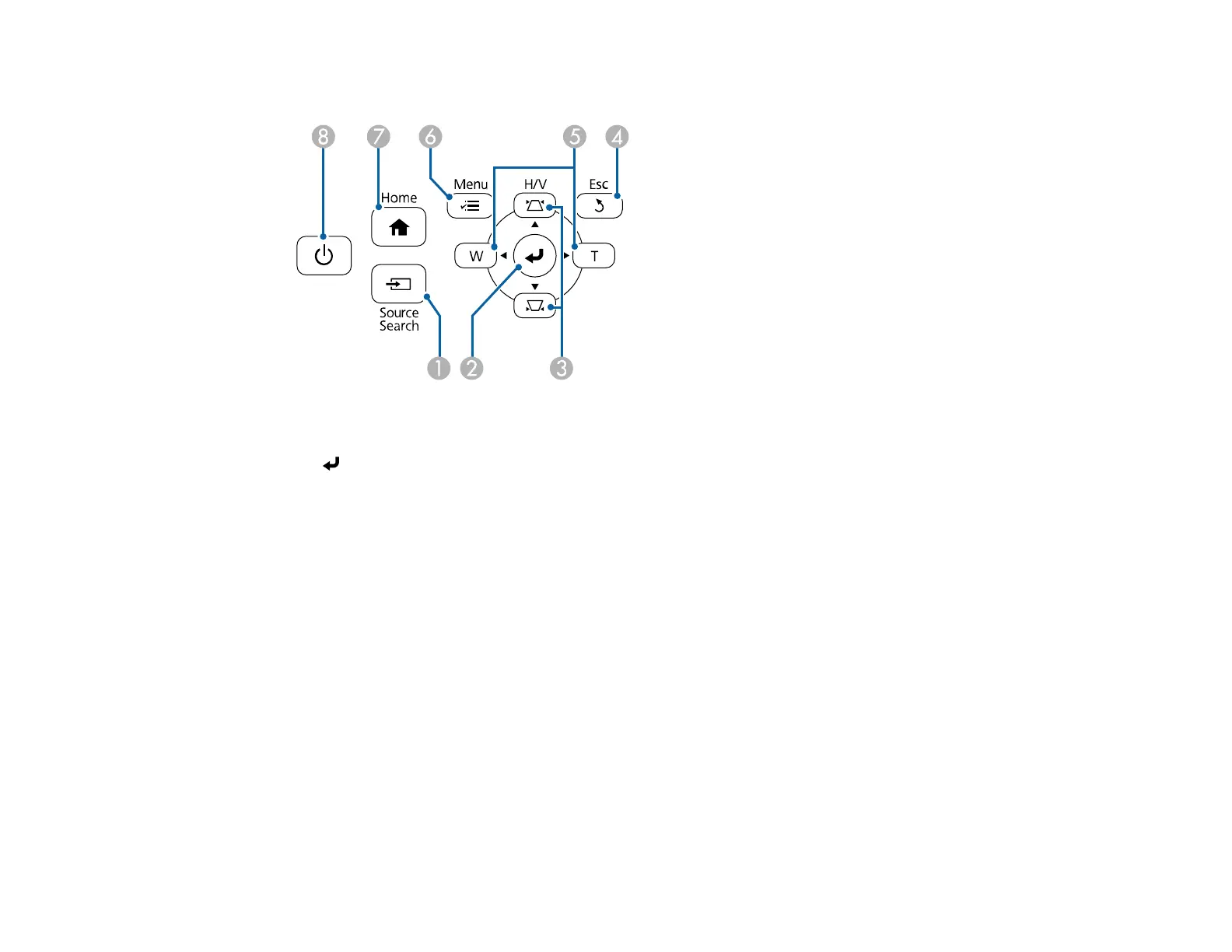

Projector Parts - Control Panel
1 Source Search button (searches for connected video sources)
2 (Enter) button (selects options)
3 Vertical keystone adjustment buttons (display the adjustment screen and adjust screen shape)
and arrow buttons
4 Esc button (cancels/exits functions)
5 W/T (Wide/Tele) buttons (adjust projected image size), horizontal keystone adjustment buttons
(adjust screen shape), and arrow buttons
6 Menu button (accesses projector menu system)
7 Home button (accesses projector Home screen)
8 Power button
Parent topic: Projector Part Locations
