1.4.1.4 Printable Area
The printable area of a paper roll with a width of 79.5 ± 0.5 mm (3.13" ± 0.02") is 72.2 ± 0.2 mm
(2.84"
± 0.008") (512 dots), and the space on the right and left sides are approximately 3.7 ±
2mm (0.15" ± 0.079").

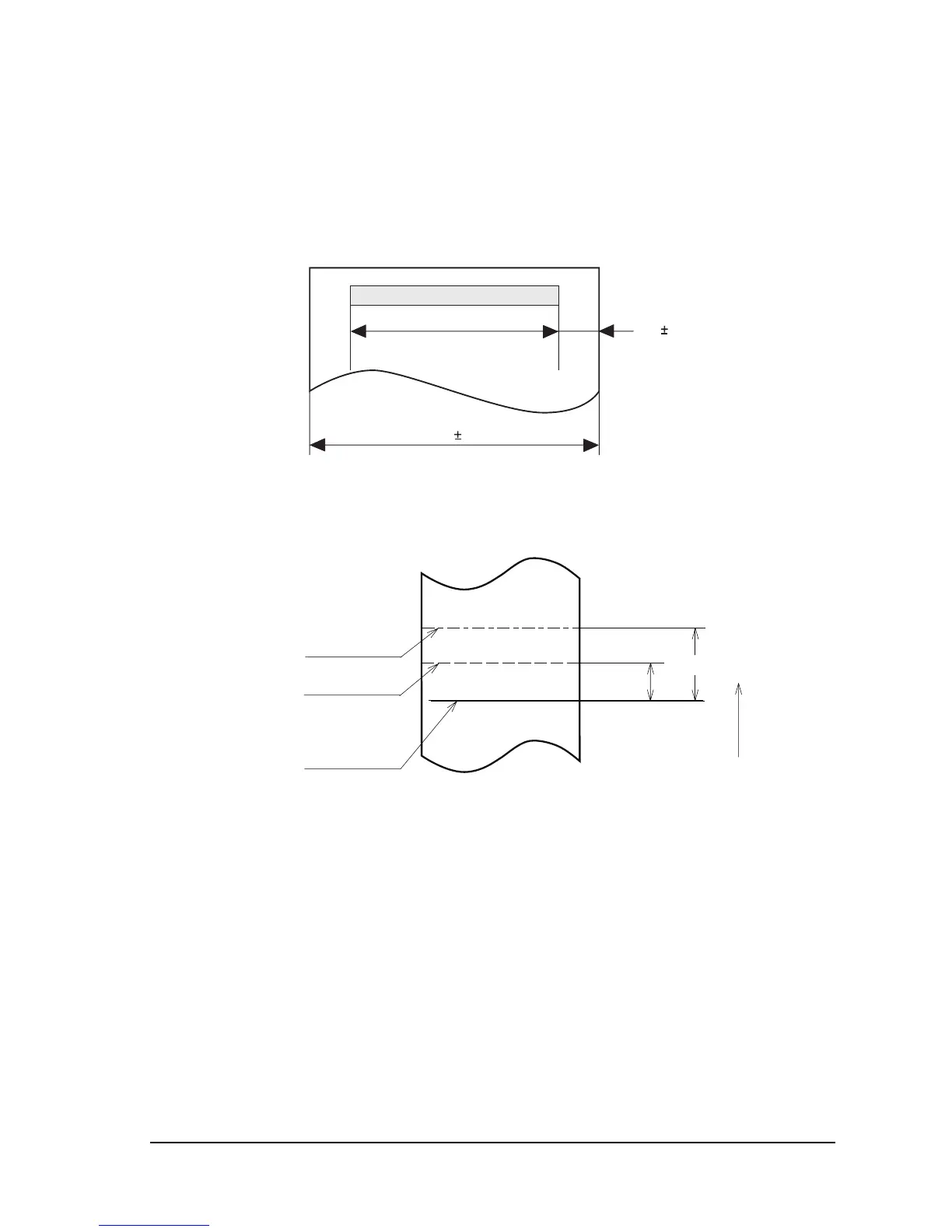

Printable area for paper roll
1.4.1.5 Printing and Cutting Positions
Printing and cutting positions
NOTE: Numeric values used here are typical values; the values may vary slightly as a result of paper slack or
variations in the paper. Take this into account when setting the cutting position of the autocutter.
72.2
79.5 0.5
3.7 2
Paper feed direction
[Units:mm(All the numerical values ae typical.)]
Manual cutter position
Autocutter head position
Approx. 10
Center of the print dotline
Approx. 24
