2.2 Connection Form and Cables
2.2.1 USB

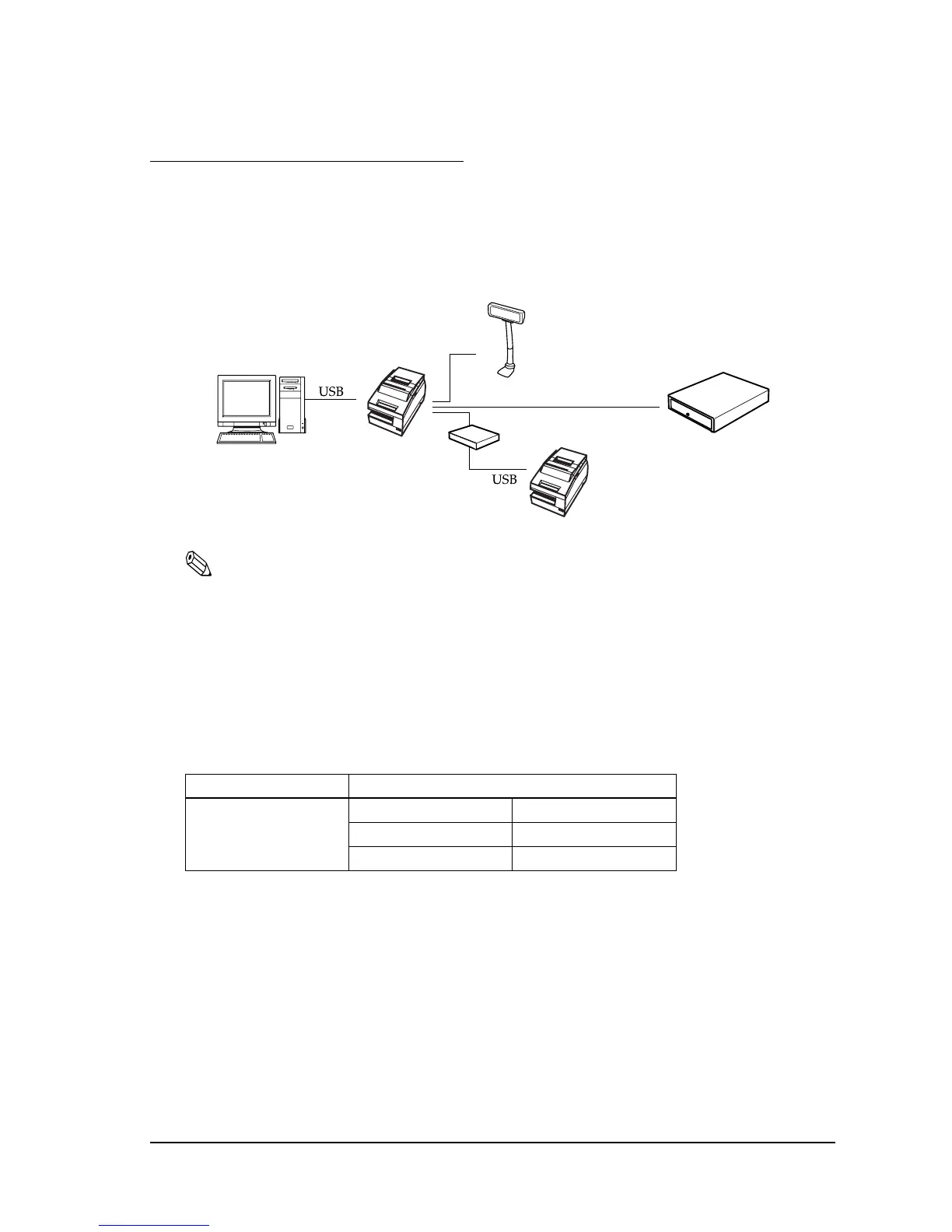

The TM printer can be connected to the host PC via a USB connector, and other TM printers can
be connected to the first printer via USB. (See “Changing the DIP Switch Settings” in Chapter 3
for DIP switch settings.)
Note:
The host PC needs to have an installed “USB device driver” for using USB model TM printer. See
“Downloading Drivers, Utilities, and Manuals” on page 2-4. See the readme_e.txt of the driver for the
procedure for installing.
EPSON does not supply the port driver or similar program necessary to control the USB interface printer
with the ESC/POS commands. Control it with the driver (APD, OPOS or JavaPOS).
If you connect a Customer Display, set DIP switch settings as follows. For details, see the User’s Manual
packed with your Customer Display.
Before turning on the printer, be sure to turn on the Customer Display. If you reverse the order, the
Customer Display will not be recognized correctly.
To satisfy the EMI standard, be sure to mount the ferrite core on the display module cable
. To mount the
ferrite core, put the display module cable into the ferrite core.
See also “FAQ” on page C-1 for more details.
Item Selection
Transmission setting Transmission speed 19200 bps
Parity None
Data word length 8 bits
Self-powered USB HUB
Cash drawer
Modular
(Photo-ID model Only)
