Rev. E General Information 1-13
TM-H6000III Technical Reference Guide

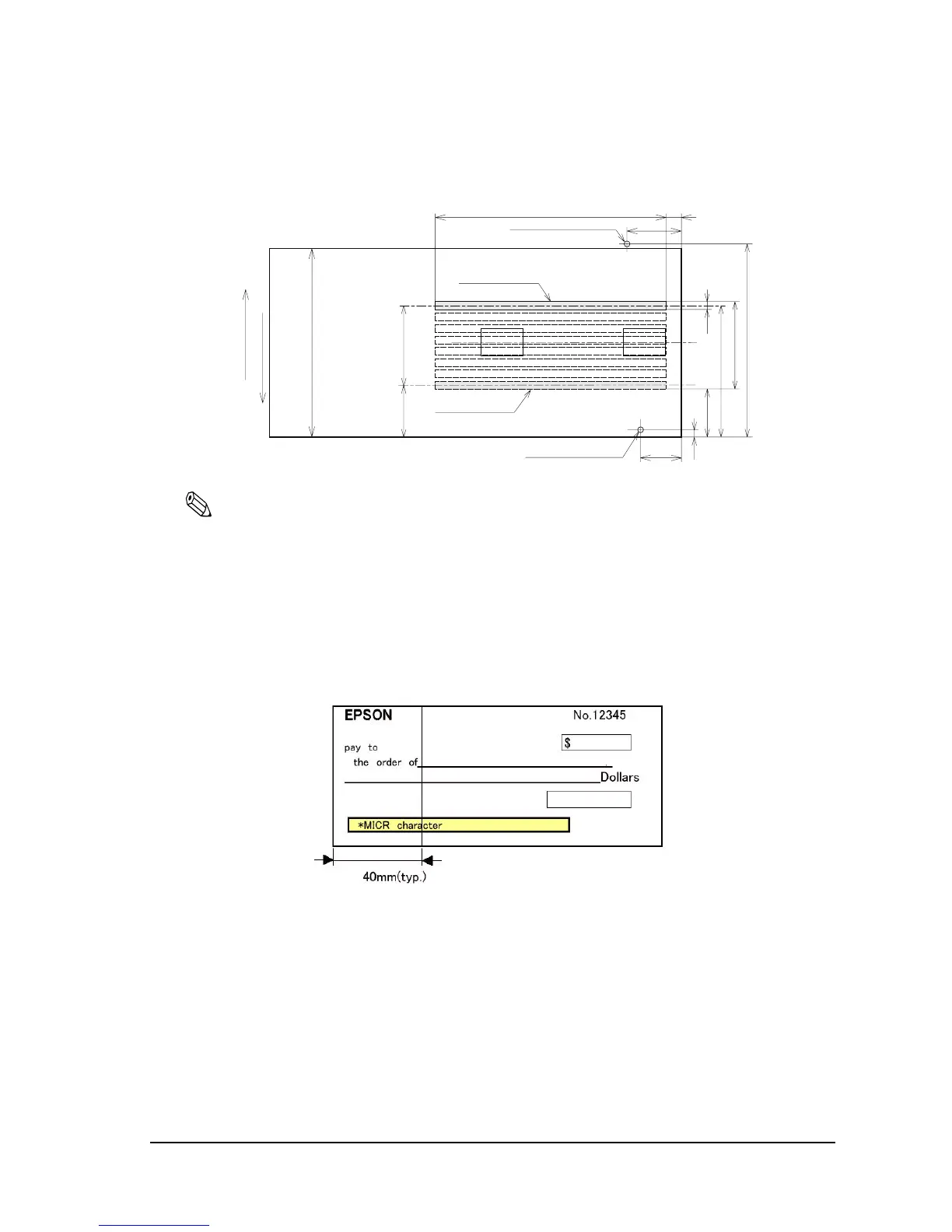

1.4.2.3 Printable Area for validation paper
Note:
When reverse feed is performed in validation printing, keep the reverse feed within the range of the
printable area. Otherwise, a paper jam away occur.
1.4.2.4 Unprintable area for surface printing when Using the Image Scanner
In single-pass processing, when image scanning is executed in combination with surface
printing, 40 mm (typical) from the edge of a check will be unprintable. If you need to print
on that area, do not perform single-pass processing and be sure to perform the sequence of
re-inserting the paper to do the image scan after the surface printing and paper ejection.
Paper feeding direction
Paper inserting direction
70 (MIN. 68)
Validation sensor position
Print starting position
Last printing position
Slip ejection sensor position
Printable Area 85.4
5.6
23.2
15
1.5
18.4
3.1
49.65
Printable Area 32.8
71
(20)
29.65
8 lines printing for 168 steps
(When approximately 4.23mm (1/6”) feeding pitch)
