1.9 Maintenance Area

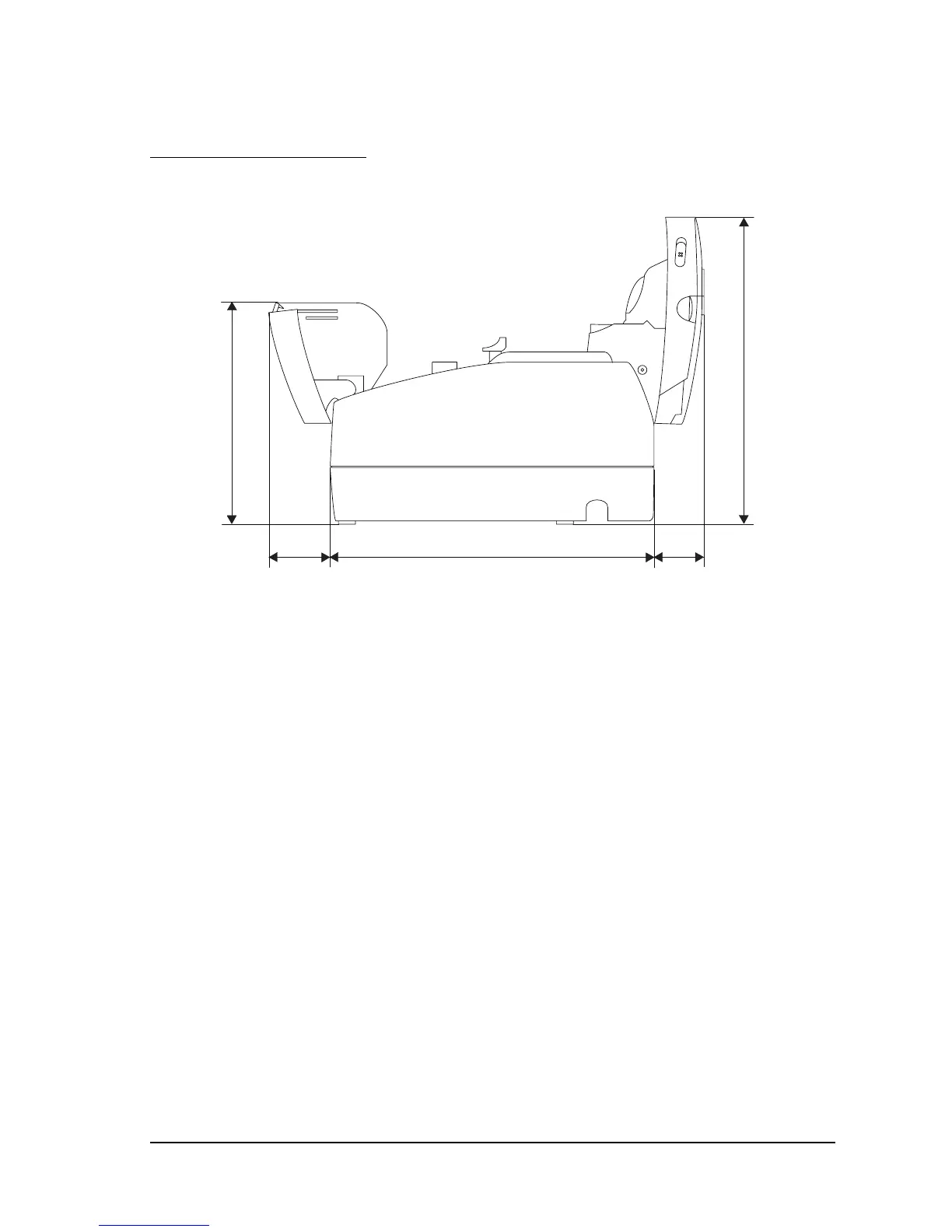

The illustrations below show the area around the printer required for maintenance.
NOTE: (Photo-ID model)
203 mm = 8.0" 203 mm = 8.0"
56 mm = 2.1" 88 mm = 3.5"
298 mm = 11.7" 298 mm = 11.7"
47 mm = 1.9" 69 mm = 2.7"
282 mm = 11.1" 280 mm = 11.0"
203
56
298 47
282
(Photo ID model:69)(Photo ID model:88)
(Photo ID model:203)
(Photo ID model:280)
