Rev. E Maintenance & Troubleshooting 4-7
TM-H6000III Technical Reference Guide
Note:
When the printer recovers from an error using error recovery command while slip paper is selected, the
printer first ejects the slip. A error recovery command do loading paper additionally. However, when the
printer recovers from a slip ejection error, the printer only ejects the slip and does not load paper.
❏ Errors that are impossible to recover:
Call your dealer to repair the printer.

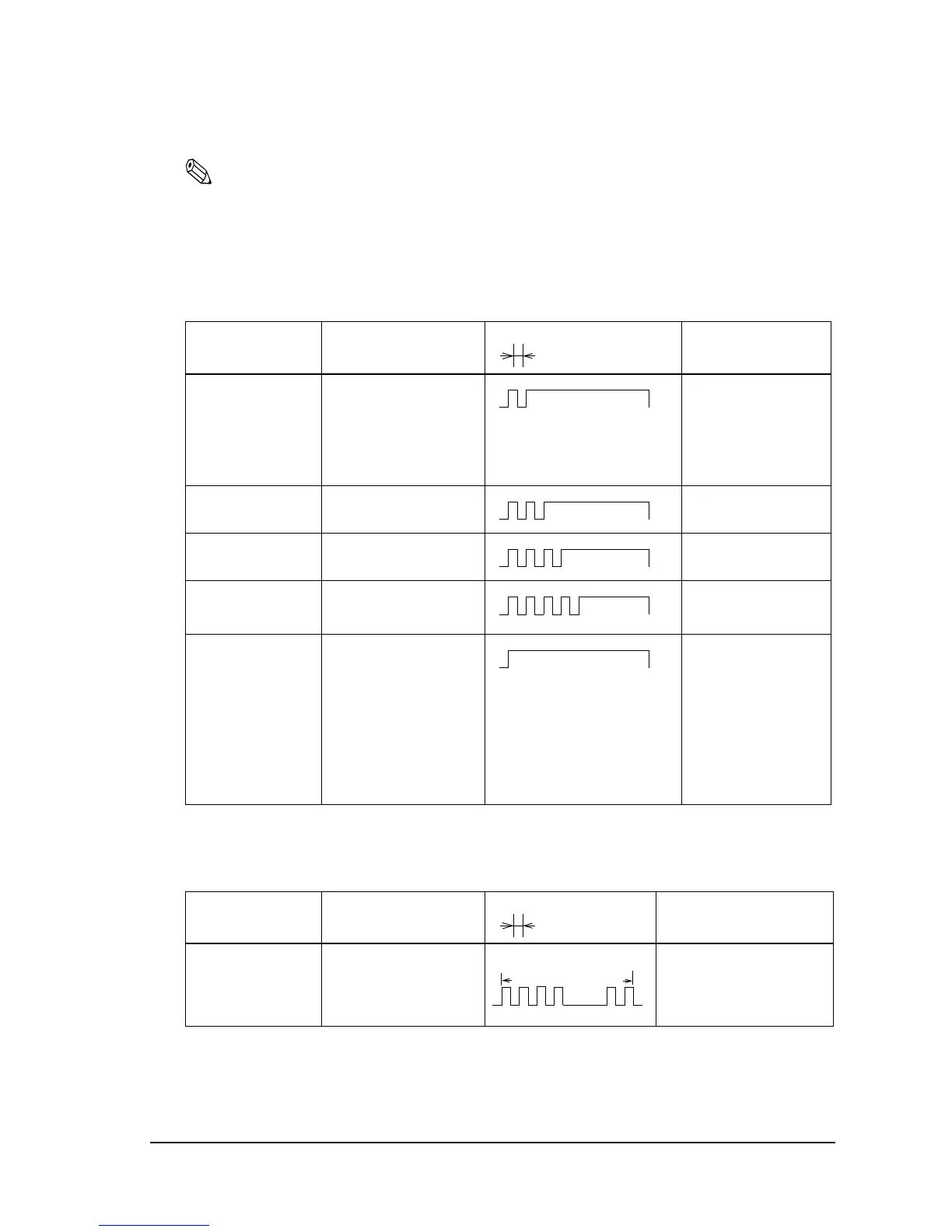

4.2.5 Blinking pattern of Card panel LED
The Card panel ERROR LED flashes, the error have the possibility of recovery:
ERROR Description
ERROR LED Blinking Pattern
Recovery
R/W error in memory
or gate array
After R/W checking, the
printer does not work
correctly.
Writing to, reading out, or
erasing the NV memory for
image scanning results
does not work correctly.
Impossible to recover
High voltage error The power supply voltage
is extremely high
Impossible to recover
Low voltage error The power supply voltage
is extremely low
Impossible to recover
CPU execution error The CPU executes an
incorrect address or I/F
board is not connected
Impossible to recover
Control circuit board
error
There is an abnormality in
the print head
temperature, thermistor is
detected incorrectly or
thermistor wiring is not
connected or the
endorsement printer is
broken or the lever driving
motor is broken, or the
image scanner operation
is not correct
Impossible to recover
State Description
ERROR LED Blinking Pattern
Recovery
Card Ijection error This error is caused by card
jam.
Fix the card jam according
to the desription of “Card
Jam”on page 5-5 by youself,
then transmit a recovery
command.
320 ms
320 ms
5120 ms
To Next Page
