3-2 Setup Rev. E
3.1.2 Connectors
WARNING:
Do not connect a telephone line to the drawer kick-out connector or the display module connector;
otherwise the printer and the telephone line may be damaged.

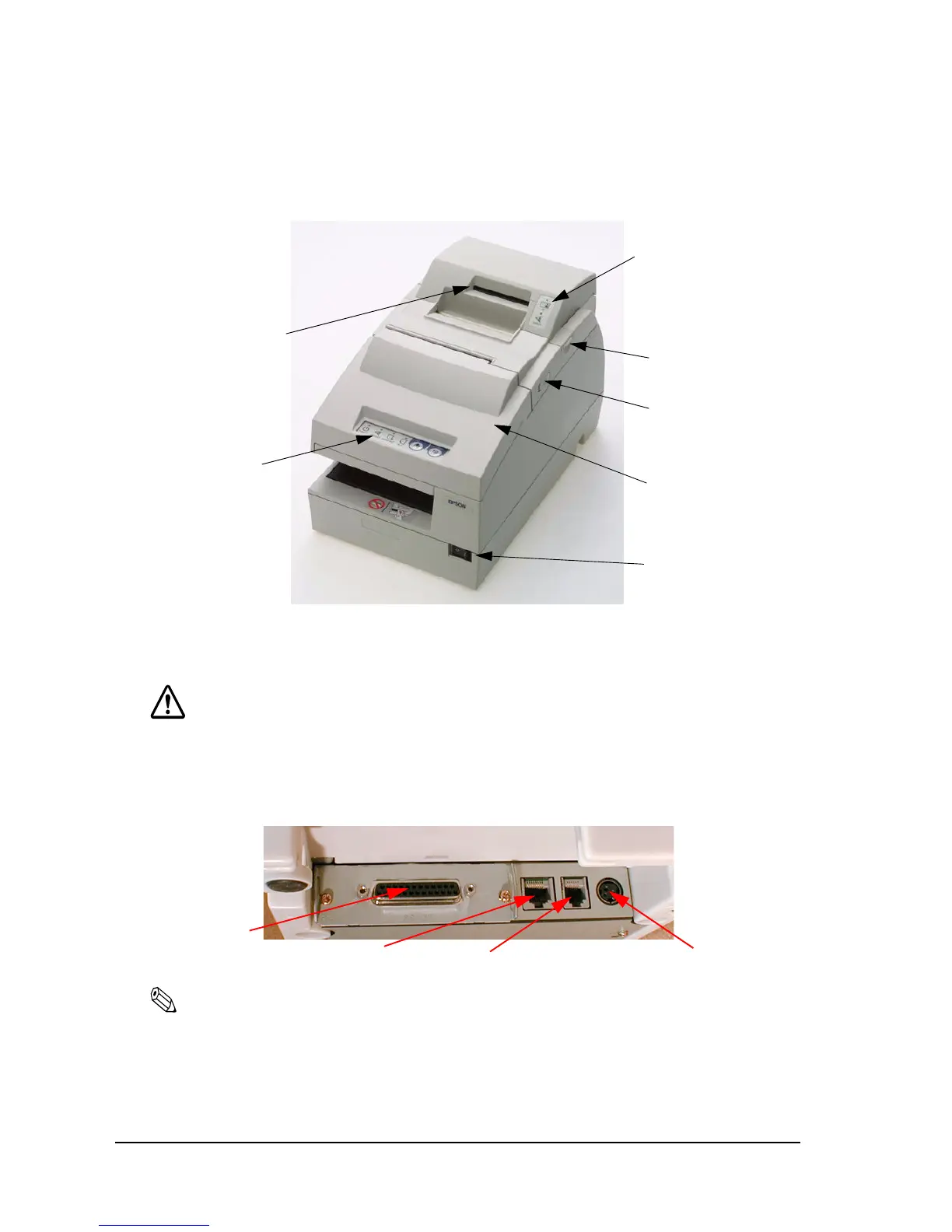

You can connect up to four cables to the printer. They all connect to the connector panel (on the
bottom rear of the printer), which is shown below.
Note:
This illustration shows the serial interface model. The parallel interface connector and USB looks slightly
different.
power switch
roll paper cover
unit cover
front cover
control panel
card entrance for scan
LEDs for card scanner
TM-H6000III Photo-ID model
interface
connector
display module
connector
drawer kick-out
connector
power supply
connector
