Rev. E Setup 3-17
TM-H6000III Technical Reference Guide
3.3.5.4 Connecting a Drawer
CAUTION:
Be sure to connect a drawer that meets printer specifications. Connecting a drawer of
the wrong specifications may result in damage to both the drawer and the printer.
Never connect a telephone line to the drawer kick out connector (labeled “DK”).
Doing so may result in damage to both the telephone line and the printer.
Never connect the drawer cable to the customer display connector (labeled “DM-D”).
Doing so may result in damage to both the drawer cable and the printer.
1. Connect the drawer cable to the drawer kick out connector (labeled “DK”) on the connector
panel.

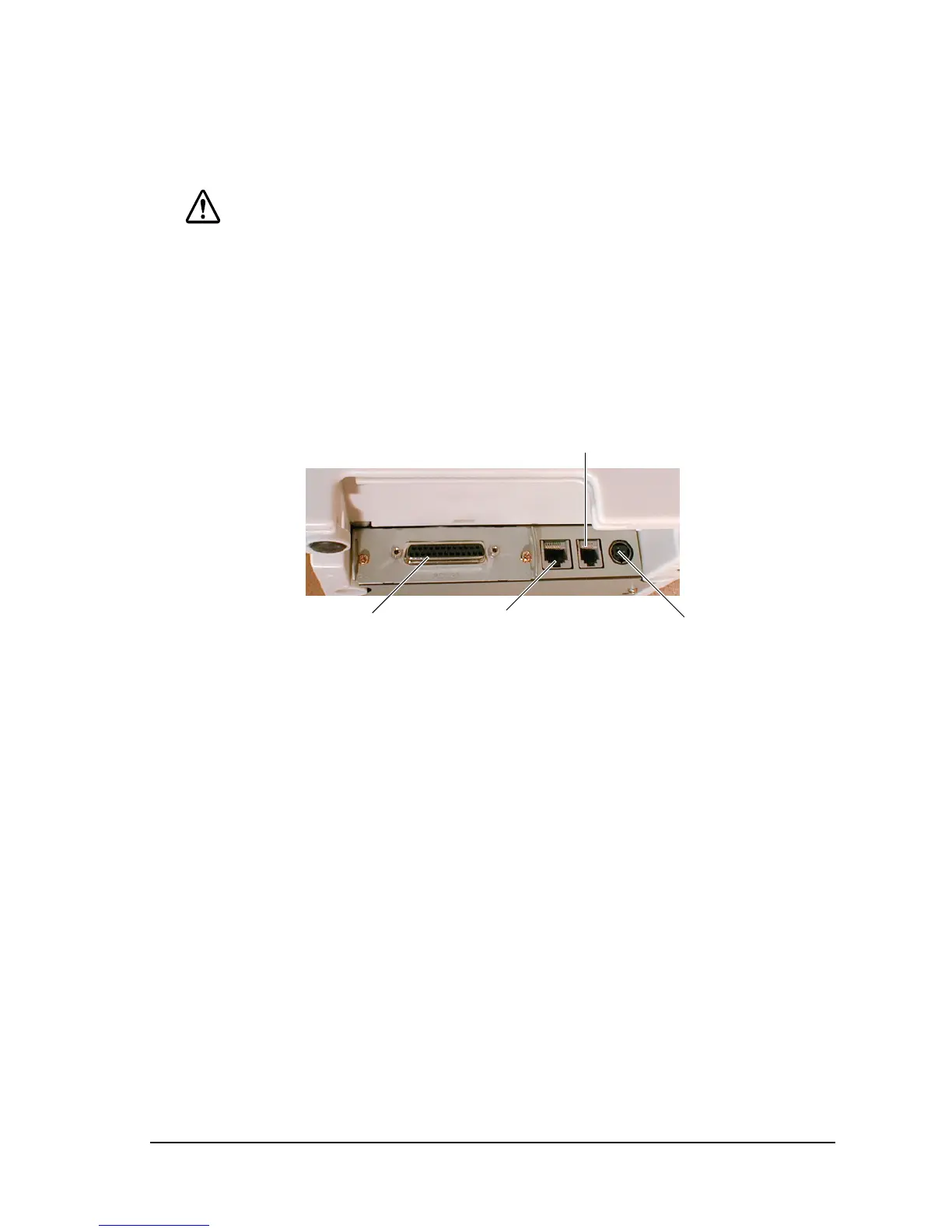

Connecting drawer
2. The connecting is finished.
Interface connector
Customer Display
(DM-D) connector
Power supply connector
Drawer kick connector
