Rev. E General Information 1-21
TM-H6000III Technical Reference Guide
1.4.6 Card Image Scanner Specification (Option)
1.4.6.1 Image Scanner Specification
1.4.6.2 Card Specification

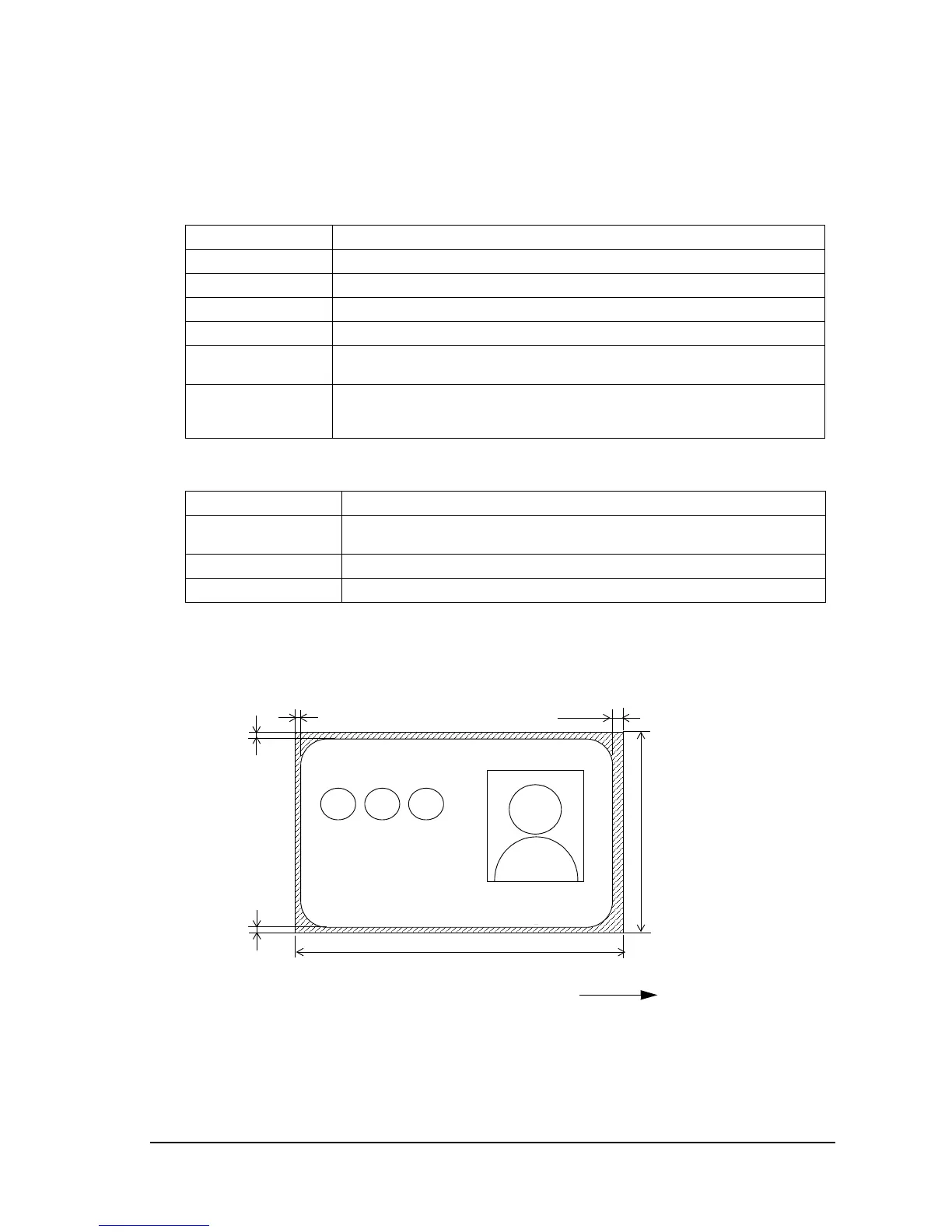

1.4.6.3 Example Scanning Result
The whole of the card (one side) can be scanned. The data size is 56 × 90 mm including a 1 ~
3mm {0.040 ~ 0.0118"} border beyond the edges of the card.
Image scanner type Contact Image Sensor (CIS)
Resolution 200 dpi (H) × 200 dpi (V) [dpi: dots per inch (number of dots per 25.4 mm {1
"})
Gradation 256-level gray scale
Scanning area 56 × 90 mm {2.20" × 3.54"}
Image scanning speed 120 mm/s {4.72"/s}
Data compression
method
JPEG
Data transmission
format
JFIF (JPEG format)
(If the data is transmitted without compressing data,
raw data, BMP format or TIFF format.)
Type of card Based on ISO/IEC 7810 (except a card with embossing)
Card size 53.92 to 54.18 × 85.47 to 85.90 mm (W × L) {2.123 ∼ 2.133" × 3.365 ∼ 3.382"} (W × L)
(Card type: ID-1)
Card thickness 0.5 to 0.84 mm {0.020 ∼ 0.033"}
Curvature of card 2mm {0.079"} or less (ISO/IEC7810)
1
3
1
1
90
56
Card insertion direction
[Units: mm]
All numerical Values are typical.
