Epson RC700 Series User Manual

Setup & Operation 14. Option Slots
102 RC700 / RC700-A Rev.23
14.7 Force Sensor I/F Board
14.7.1 About Force Sensor I/F Board
You need to mount the Force Sensor I/F board in the option slot to communicate with the
Force Sensor.
Force Sensor I/F board has one port for the connector to connect to Force Sensor and only
one board is available.
When using the Force Sensor I/F board, one board expansion is available for RS-232C
board.
Force Sensor can connect to all S250 series.

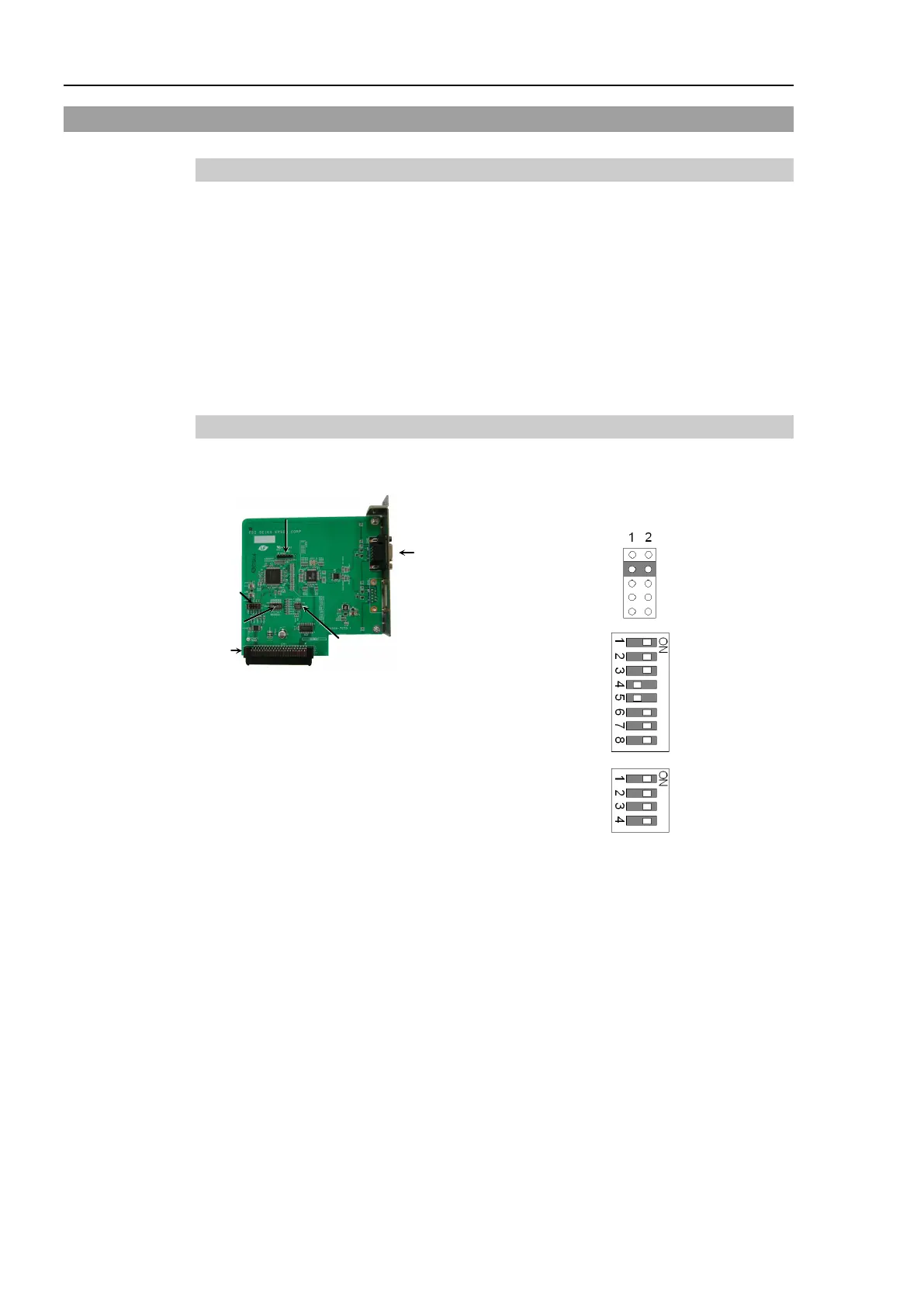

14.7.2 Board Configuration (Force Sensor I/F Board)
Board Appearance Switch and Jumper Configuration
CN1
CN5
(Sensor1)
JMP1
DSW2
DSW1
CN3
CN3 is all open.
Do not change the following DSW1,
DSW2, and JMP1 configurations.
SW1
SW2
SW3
SW4
DSW1
SW1
SW2
SW3
SW4
SW5
SW6
SW7
SW8
DSW2
IRQ
5
IRQ7
IRQ10
IRQ11
IRQ15
JMP1
JP1
JP2
JP3
JP4
JP5
