Epson RC700 Series User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
154 RC700 / RC700-A Rev.23

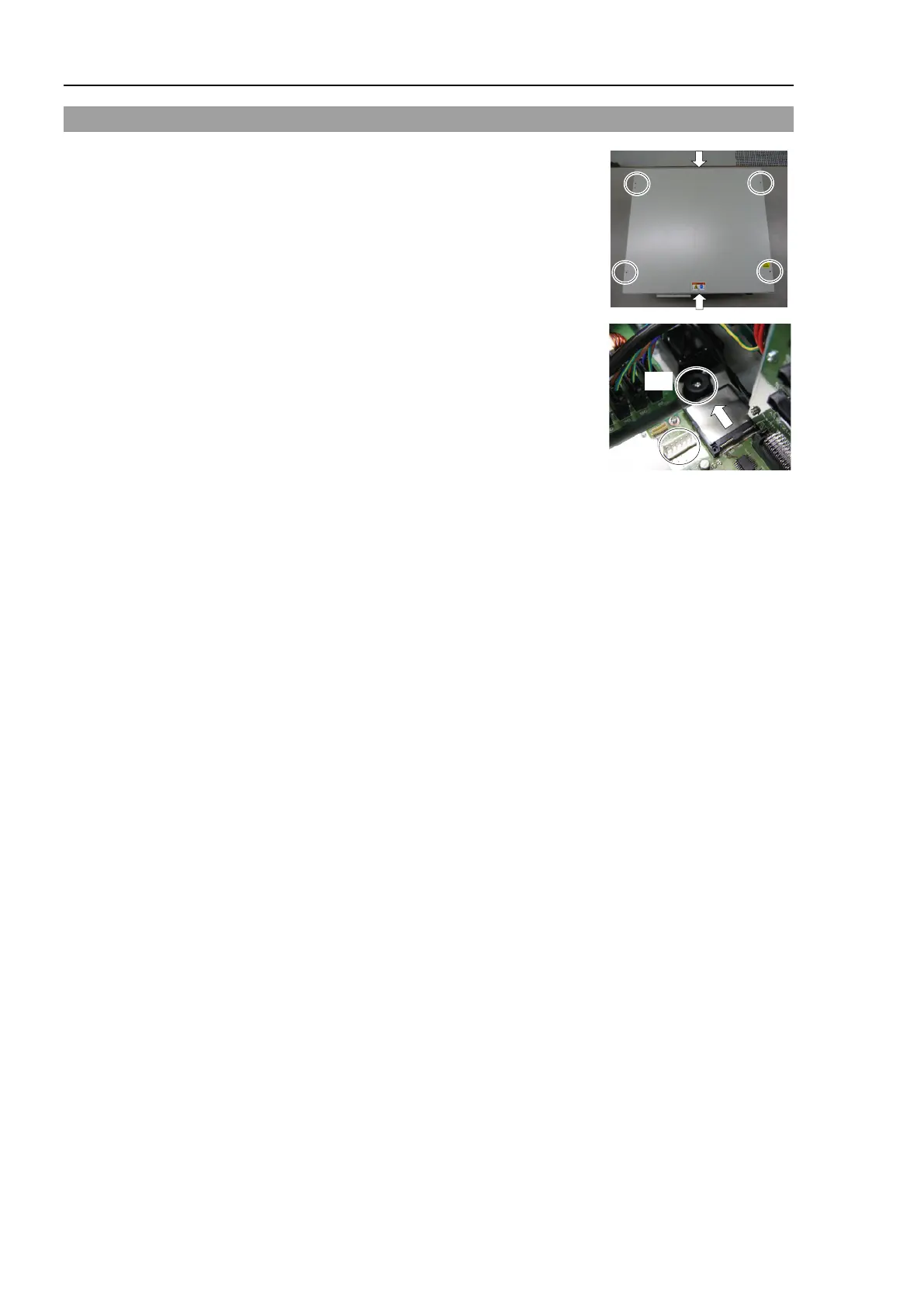

7.4 CF (Compact Flash)
CF Removal
(1)
Turn OFF the Controller.
(2)
Disconnect the power plug
.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the connector (CN39).
(4)
(5)
(5)
Remove the CF mounting screw and
the rubber.
(6)
Pull the CF toward the direction of the arrow in the
picture.
CF Installation
(1)
Insert a new CF toward the opposite direction of the arrow in the picture above.
(2)
Tighten
the CF mounting screw (×1) and the rubber.
(3)
Connect the connector
(CN39).
(4)
Mount the Top P
anel. (Mounting screw ×6)
(5)
Connect the power plug
. Turn ON the Controller and make sure that the Controller
starts properly without any vibration or abnormal noise.
