Setup & Operation 14. Option Slots

96 RC700 / RC700-A Rev.23

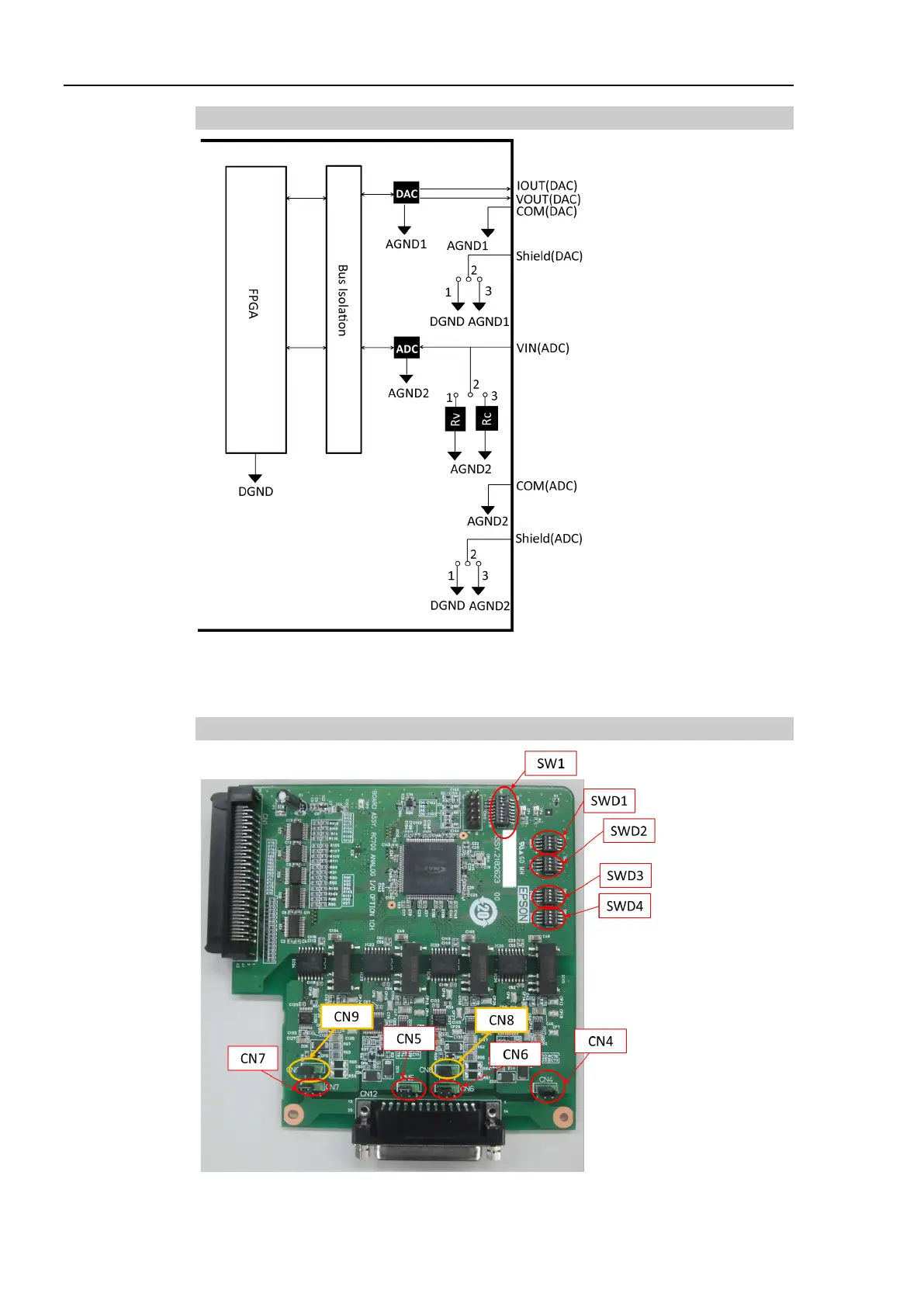

Overview of Analog I/O Board Circuit

Rv: Voltage Input Terminating Resistance (100kΩ),

Rc: Current Input Terminating Resistance

14.6.2 Board Configuration (Analog I/O Board)
