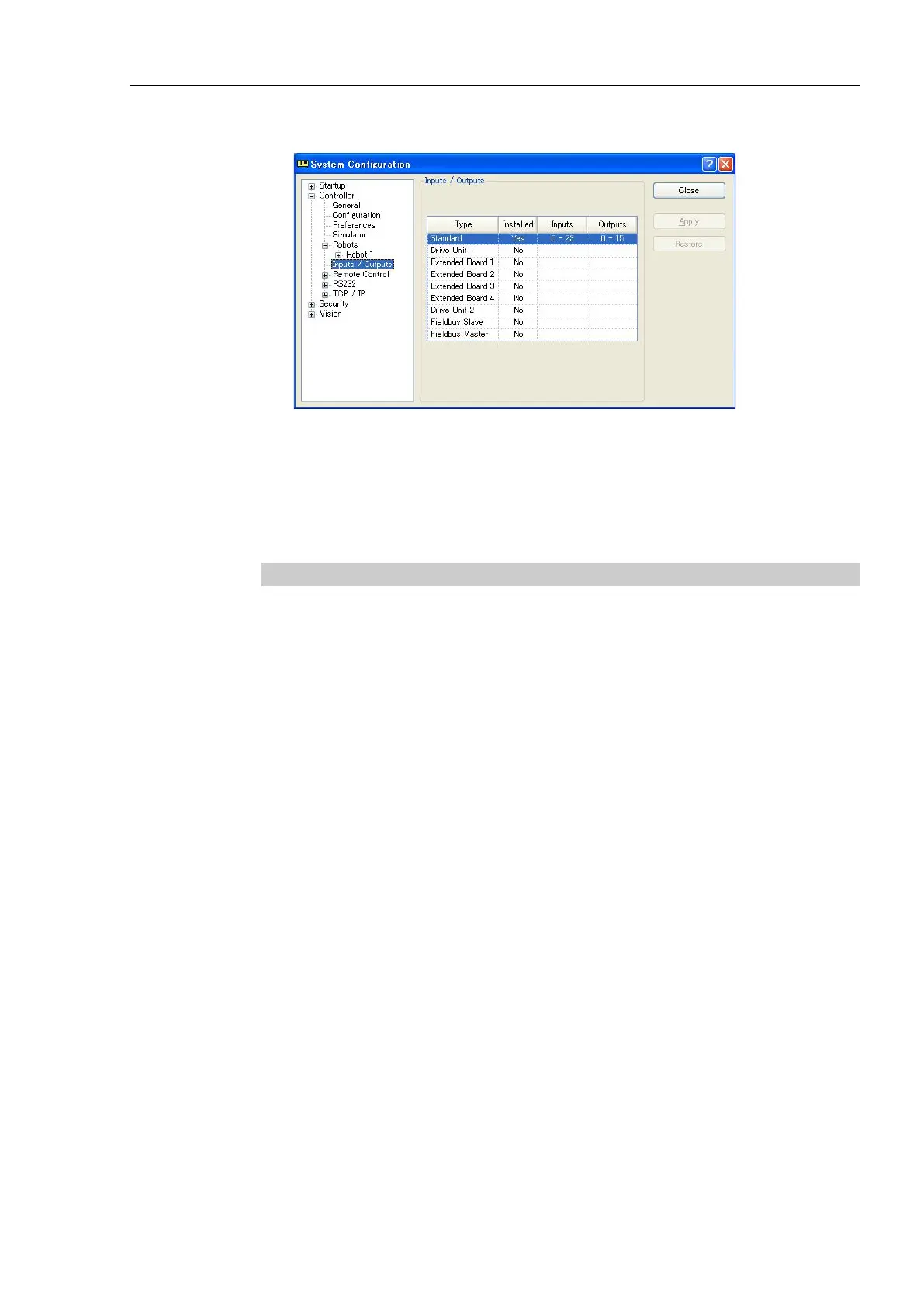

(1) Select the EPSON RC+ 7.0 menu-[Setup]-[System Configuration] to display the
[System Configuration] dialog.
(2) Select [Controller]-[Inputs / Outputs].
(3) Make sure that “Yes” is displayed in the Installed column.
The expansion I/O board is identified by the Controller software. Corresponding
Input and Output is available.
14.2.4 Input Circuit
Input Voltage Range : + 12 V to 24 V ±10%
ON Voltage : + 10.8 V (Min.)
OFF Voltage : + 5 V (Max.)
Input Current : 10 mA (TYP) at + 24 V input
Two types of wiring are available for use with the two-way photo coupler in the input
circuit.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
