Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 165

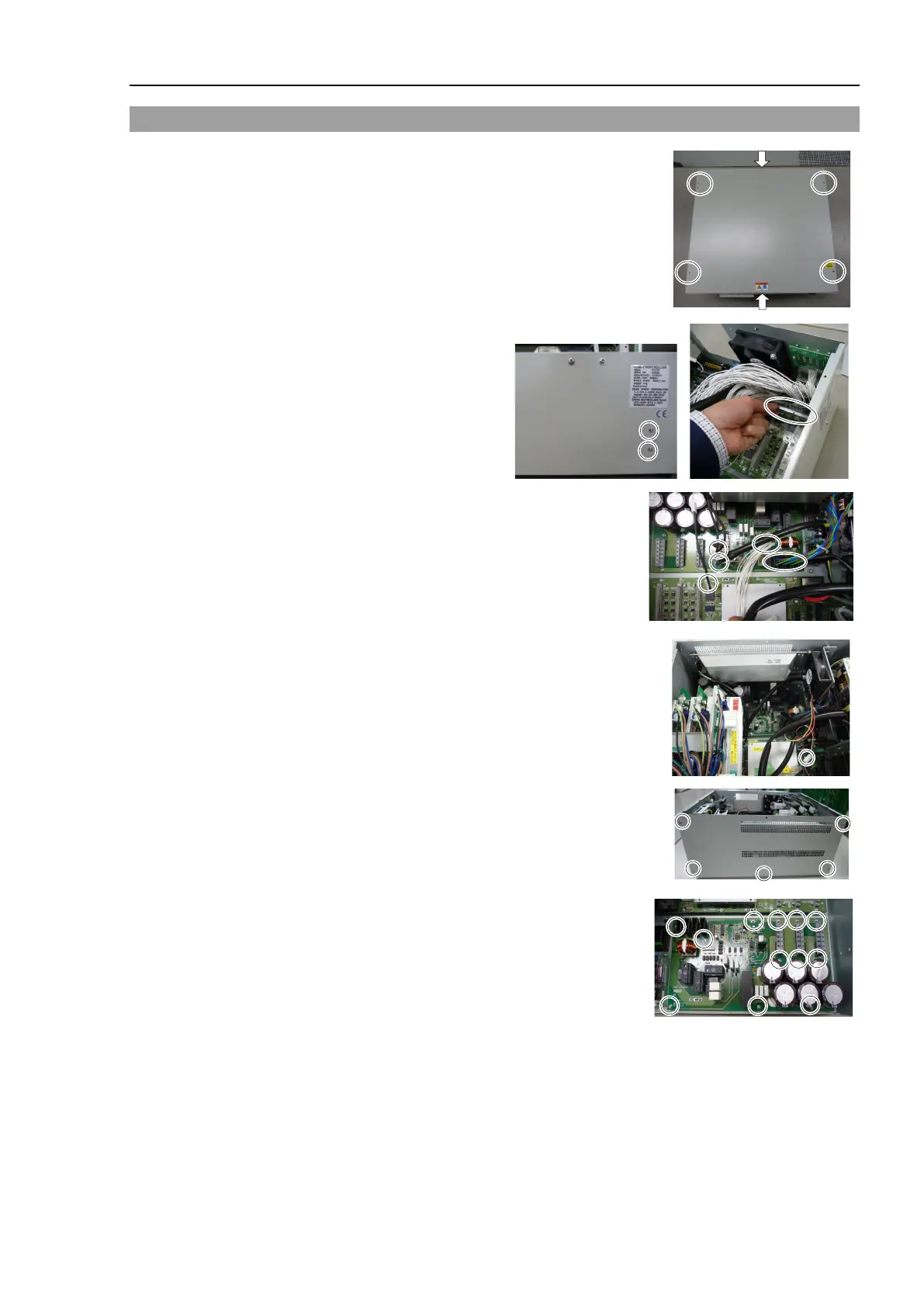

7.9 DPB
DPB
Removal
(1)
Turn OFF the
Controller.
(2)
Disconnect
the power plug.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the
MDB.
Refer to: Maintenance
7.5 MDB
(5)
Remove the MDB clamp 3.
(Mounting screw ×2)
(6)
Remove eight connectors from the DPB.
(7)
RC700
-A only:
Remove the regenerative fan extension
connector.
(8)
RC700
-A only:
Remove the rear plate from the body.
(Mounting screw ×5)
(9)
Remove the DPB mounting screws.
(10)
Remove the DPB from the chassis.
