Epson RC700 Series User Manual

Safety 2. Part Names and Functions
14 RC700 / RC700-A Rev.23

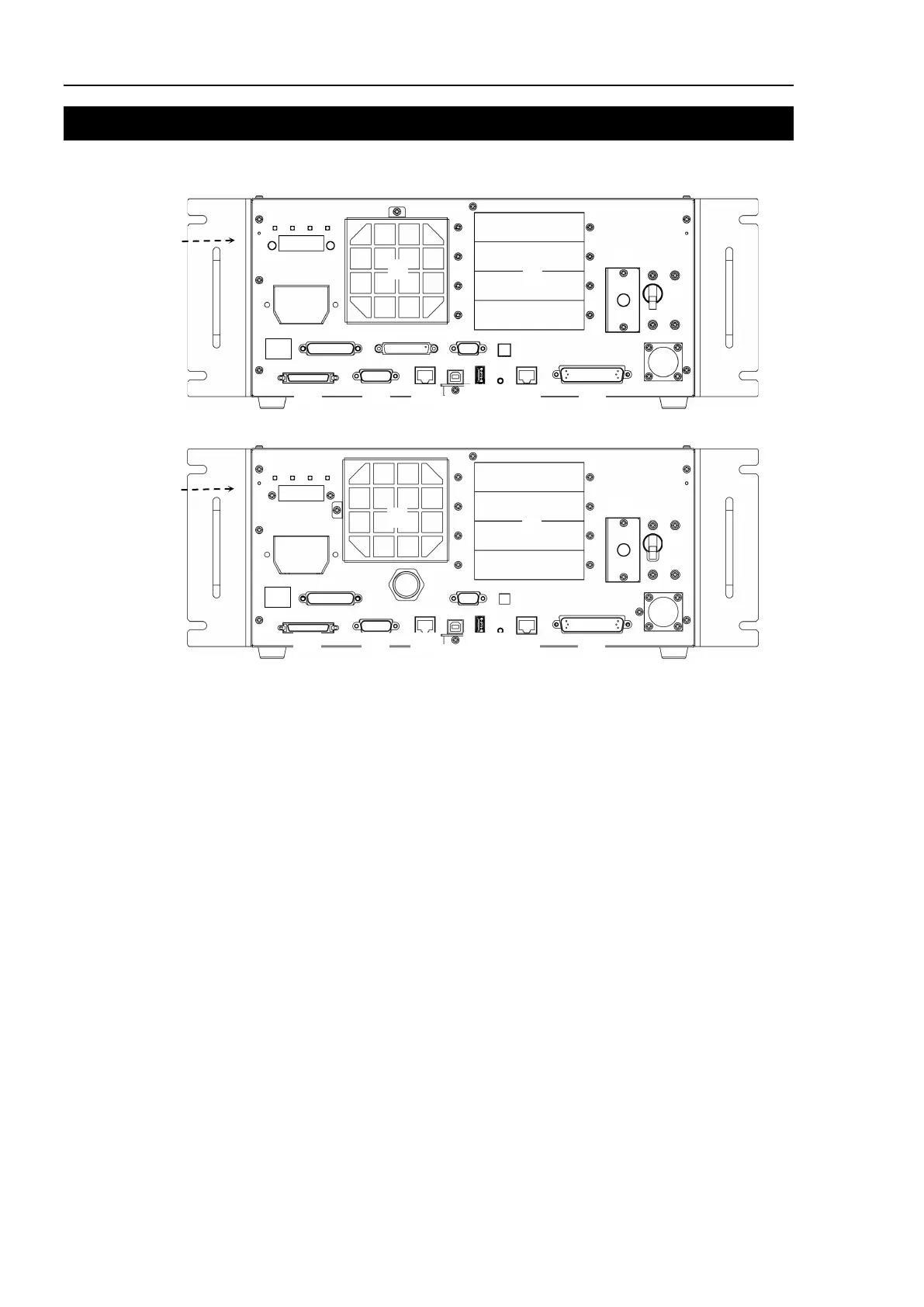

2. Part Names and Functions
RC700
(2)
(3)
(1)
(Left side)
(4
)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)(19)
(20)
(21)
(22)
(23)
RC700-A
(2)
(3)
(1)
(Left side)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)(19)
(20)
(21)
(22)
(23)
(1) Controller Number label
The serial number of the Controller is indicated.
(2) LED
The LED indicates current operation mode
(TEST, TEACH, AUTO, or PROGRAM mode).
For details, refer to Setup & Operation 2.1 LED and Seven-segment LED.
(3) Seven-segment Display
Four-digit seven-segment LED displays the line number and the status of the
controller (error number, warning number, status of Emergency Stop and Safety
Door). For details, refer to Setup & Operation 2.1 LED and Seven-segment LED.
(4) M/C POWER connector
A connector for the Manipulator power source.
Connect the dedicated power cable attached to the Manipulator.
(5) Fan Filter
A protective filter is installed in front of the fan to filter out dust.
Check the condition of the filter regularly and clean it when necessary. A dirty filter
may result in malfunction of the robot system due to temperature rise of the
Controller.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
