Setup & Operation 14. Option Slots

112 RC700 / RC700-A Rev.23

14.8.6 Circuit Overview (EUROMAP67 Board)

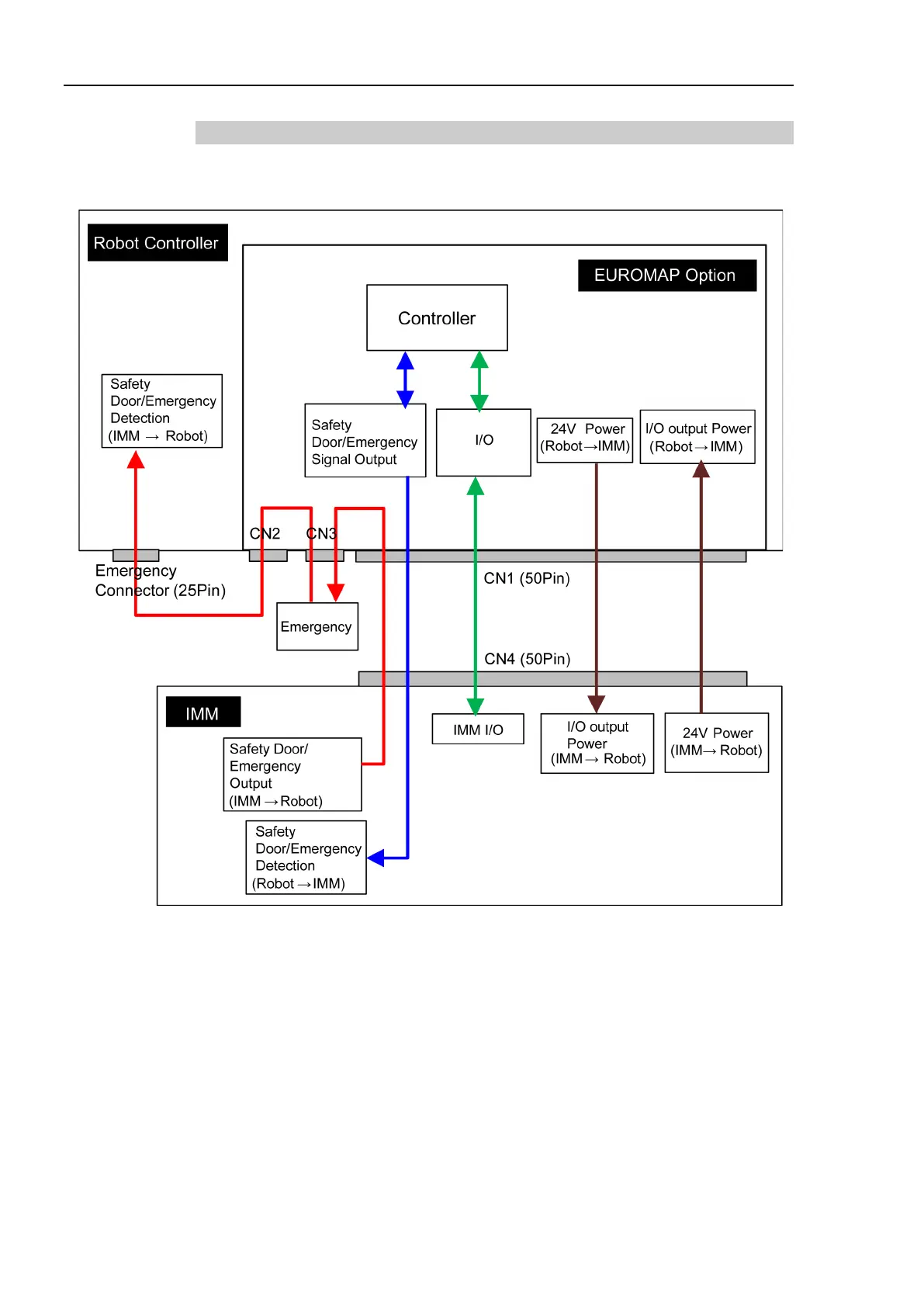

EUROMAP67 Board: System diagram
