Epson RC700 Series User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 167

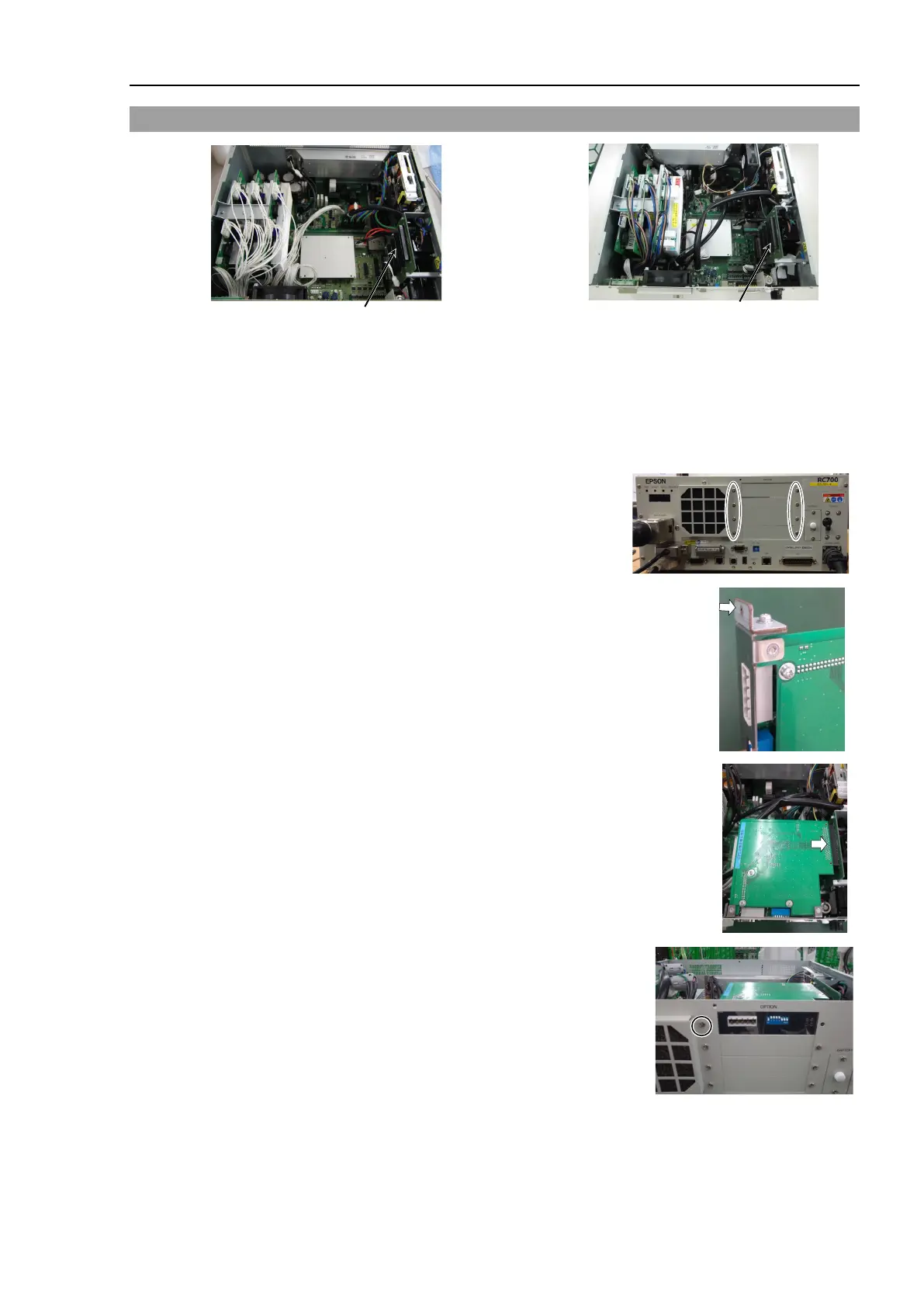

7.10 Option Board
RC700
Option Slot
RC700-A
Option Slot
Option Board
Addition
(1)
Turn OFF the Controller.
(2)
Disconnect
the power plug.
(3)
Remove
the Top Panel. (Mounting screw ×6)
(4)
Remove the screws of the Option Slot Panel
s.
Remove as many Option Panels as the Option
Boards to add.
(5)
Mount the L
-shaped plate to the Option Board.
(6)
Install the Option Board as shown in the picture.
Insert
the board to the Option Slot.
(
in the direction of an arrow)
(7)
Mount the attachment L
-
shaped plate with a screw
from the front side.
At this point, one screw for the Option Slot Panel is
left unused.
(8)
Mount the Top Panel. (Mounting screws
×6)
(9)
After connecting the power plug, turn on the Controller and check it works normally
without
vibration and abnormal sound.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
