Epson RC700 Series User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 151

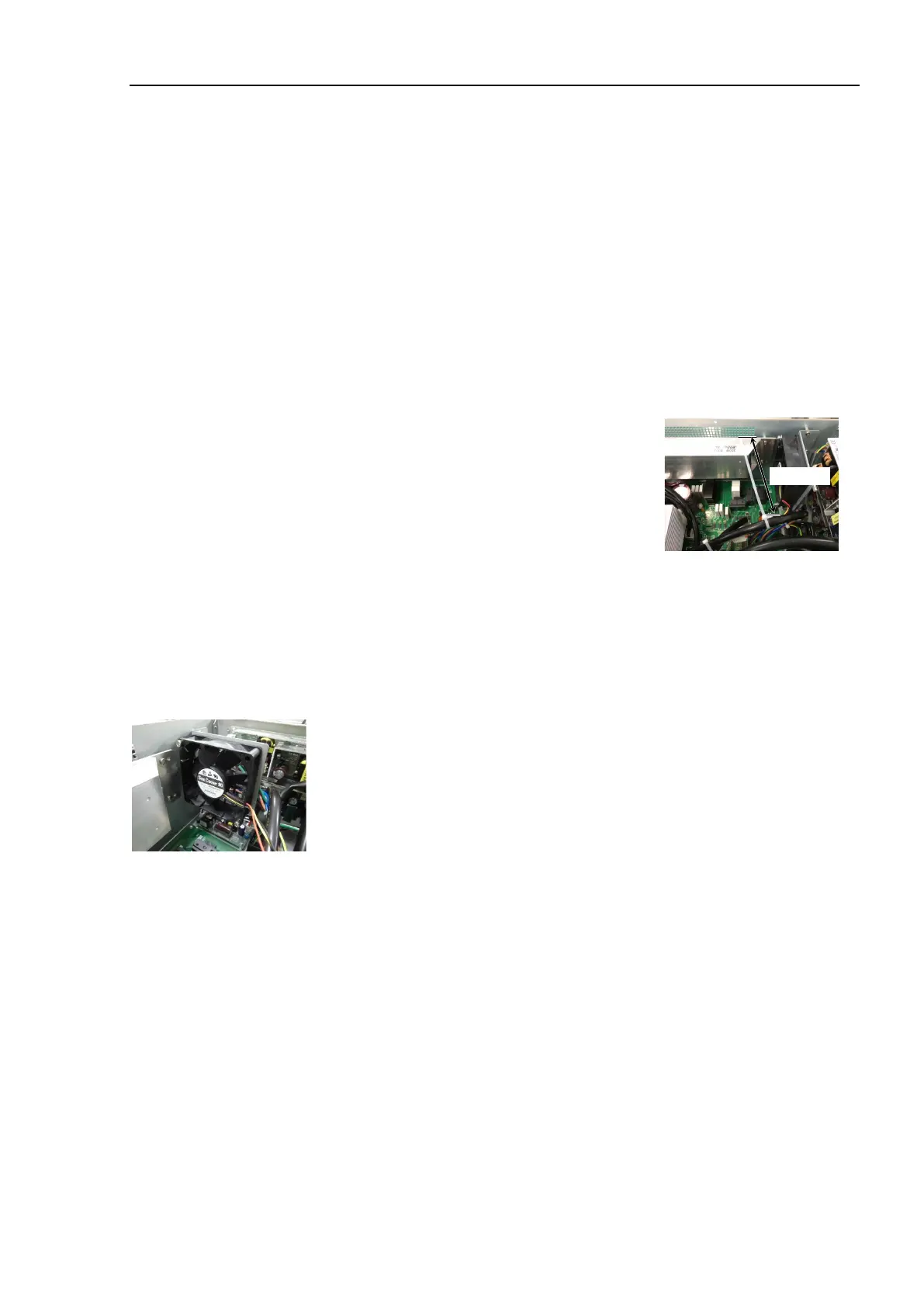

Regenerative Fan
Installation
(RC700
-A only)
(1)
Fix the new fan to the fan fixing plate.
(Mounting screw ×2)
At this point, tighten the screws diagonally. Be careful of the mounting
direction.
(2)
Mount the regenerative resistance to the rear plate.
(Mounting screw ×2)
Be careful of the mounting direction.
(3)
Mount the rear plate to the body.
(Mounting screw ×5)
(4)
Connect the regenerative module connector to the DMB.
(5)
Connect the regenerative module connector to the DPB.
(6)
Connect the fan extension connector.
(7)
Bind the
15 V power supply cable and fan cable.
by the
cable tie
(AB150).
Leave 110 mm from the end of the cable tie in order not
to tighten the cables
too much.
Cut the excess part of the tie.
110 mm
(8)
Mount the Top Panel. (Mounting screw
×6)
(9)
Connect the power plug
. Turn ON the Controller and make sure that the
Controller starts properly without any vibration or abnormal noise.
* Pay attention to the right and wrong sides of the fan when installing it.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
