Epson RC700 Series User Manual

Maintenance 7. Maintenance Parts Replacement Procedures
RC700 / RC700-A Rev.23 161
(8)

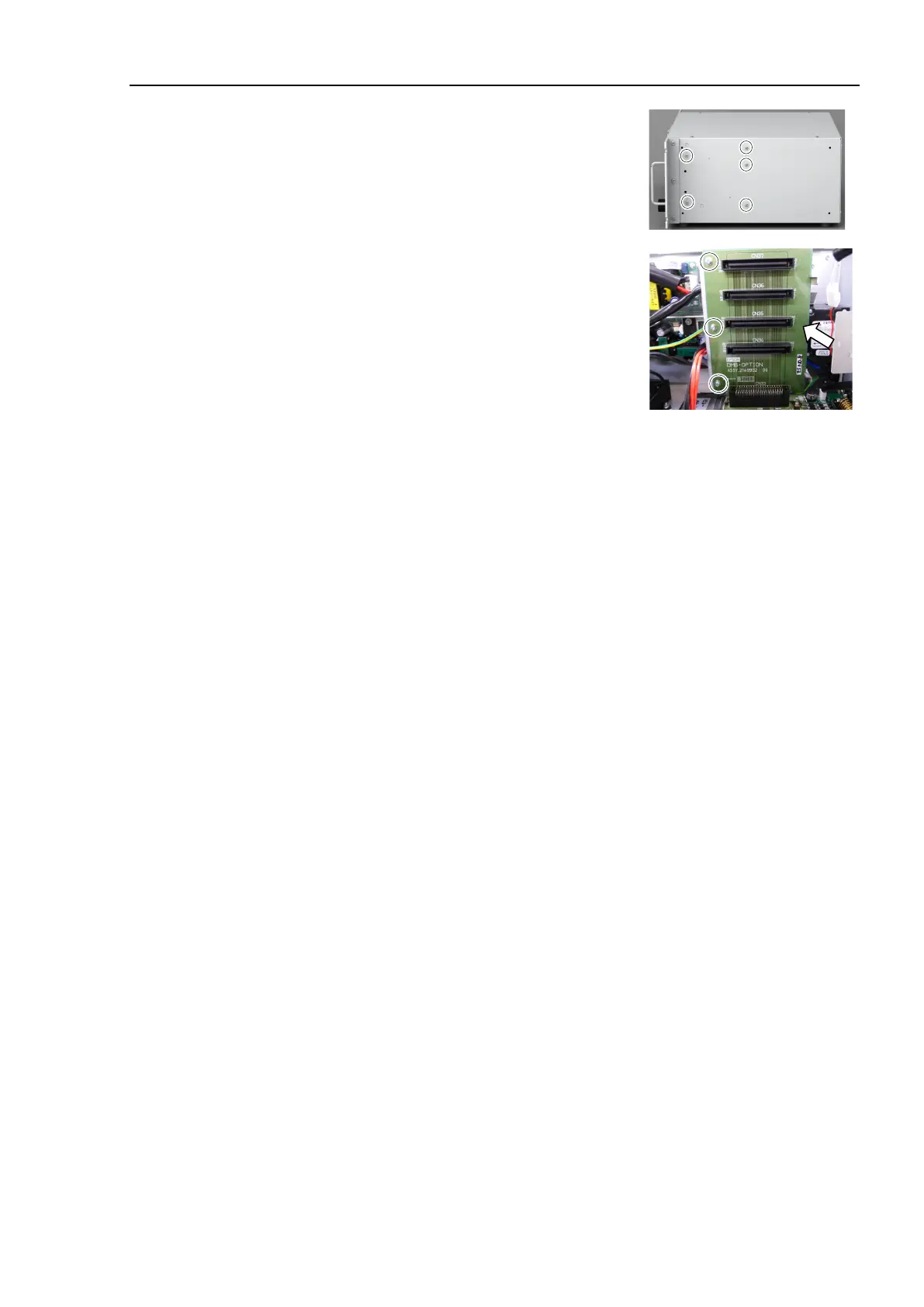

Mount the five screws on the side of the chassis.
(9
)
Mount the DMB
-OPTION board.
(Mounting screw ×3)
(10
)
Mount the MDB.
Refer to
Maintenance: 7.5 MDB.
(11
)
Install the cables to
the following connectors.
M/C Signal Connector EMERGENCY Connector
TP Connector USB Connector
USB Memory Ethernet Connector
I/O Connector RS-232C Connector
R-I/O Connector DU OUT Connector
(12
)
Mount the Top Panel. (Mounting screw
×6)
(13
)
Connect the power plug
. Turn ON the Controller and make sure that the
Controller
starts properly without any vibration or abnormal noise.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
