Epson RC700 Series - Page 74

Setup & Operation 11. I/O Connector
62 RC700 / RC700-A Rev.23

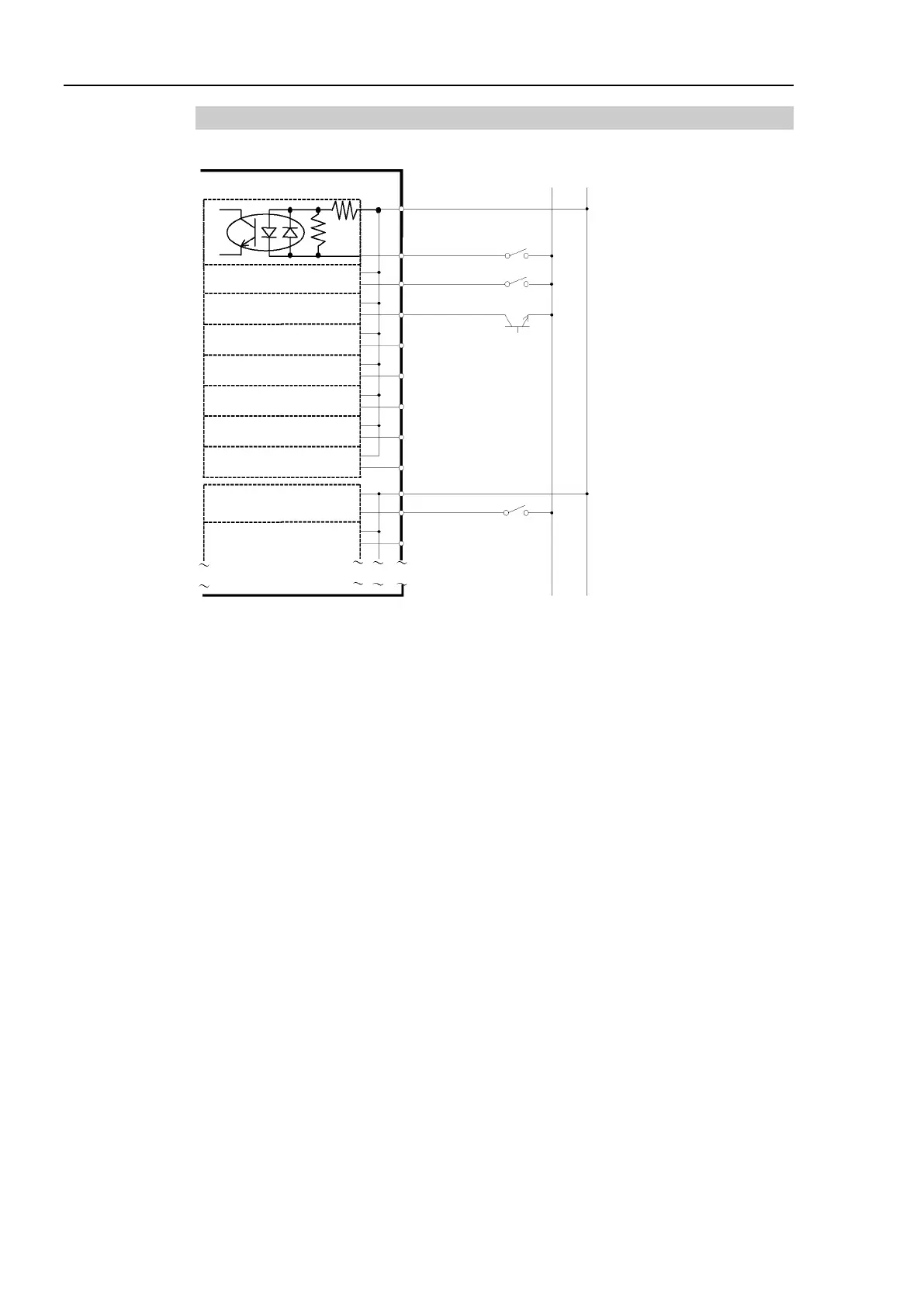

Typical Input Circuit Application 1
1 Input No.0 to 7 common
2 Input No.0
3 Input No.1
4 Input No.2
5 Input No.3
6 Input No.
4
7 Input No.5
8 Input No.6
9 Input No.7
I/O-1
(Same)
Omit
GND +DC
18 Input No.8 to 15 common
19 Input No.8
20 Input No.9
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
(Same)
