7800/7700 MultiFrame Manual
7814 Series Dual HDTV Up/Down/Cross Converters
Revision 1.1.3 Page - 137

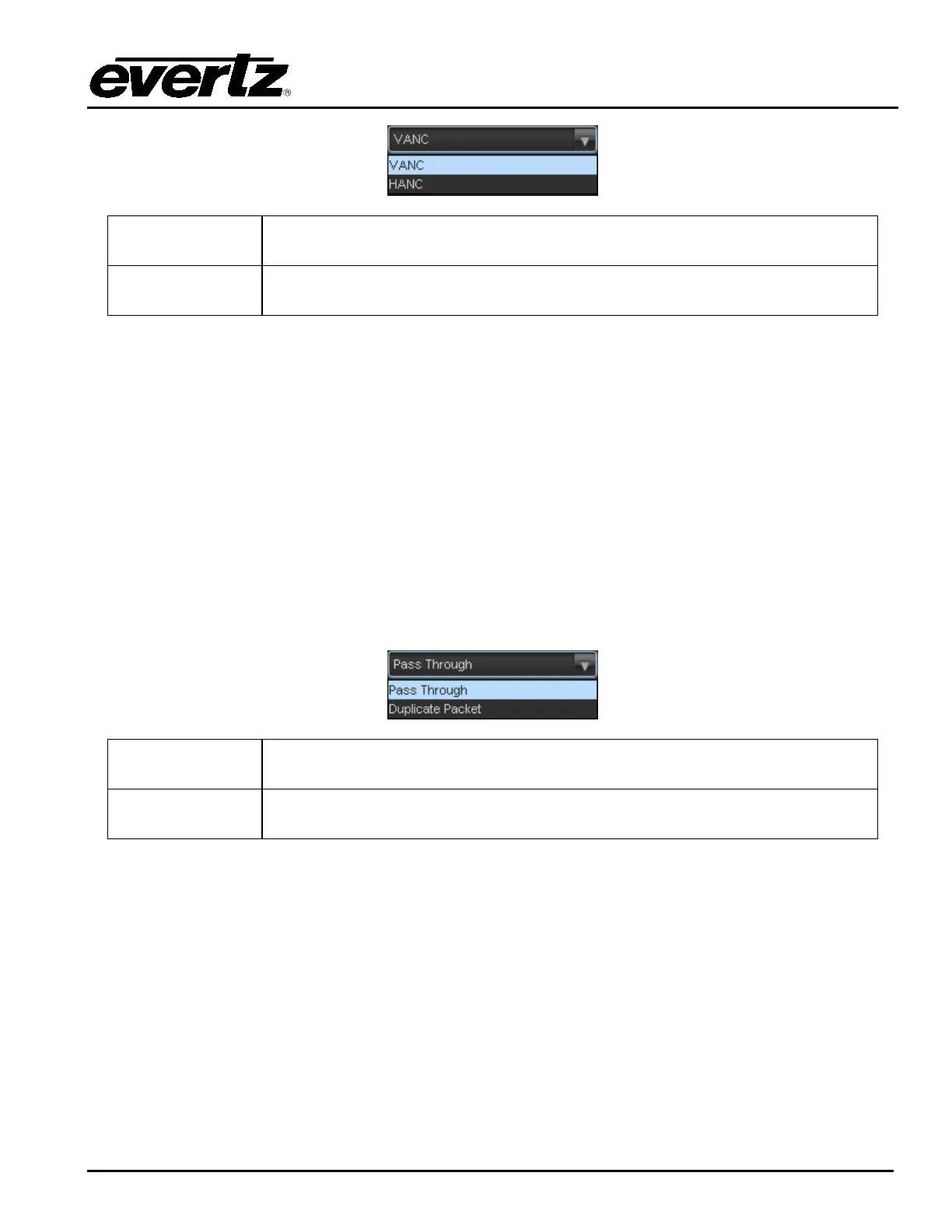

VANC
When set to VANC the incoming ANC packets will be inserted on the VANC
region of the output video.
HANC
When set to HANC the incoming ANC packets will be inserted on the HANC
region of the output video.
7.32.2.5. Field 1 Output Line
This control will set the field 1 output line of the ANC packet to be passed through. The valid range for the
Field 1 Output Line is from line 7 to line 24. The default value is 10.
7.32.2.6. Field 2 Output Line
This control will set the field 1 output line of the ANC packet to be passed through. The valid range for the
Field 1 Output Line is from line 7 to line 24. The default value is 10.
7.32.2.7. Interlaced to Progressive Conversion Mode
This control will determine the method of outputting the ANC packets on an interlaced to progressive
conversion.
Pass Through
When set to Pass Through the module will take ANC packet from field 1 and
insert onto frame 1 and data on field 2 will be inserted onto frame 2.
Duplicate Packet
When set to Duplicate Packet, the module will embed data from field 1 on to
both frame one and two on the output.
