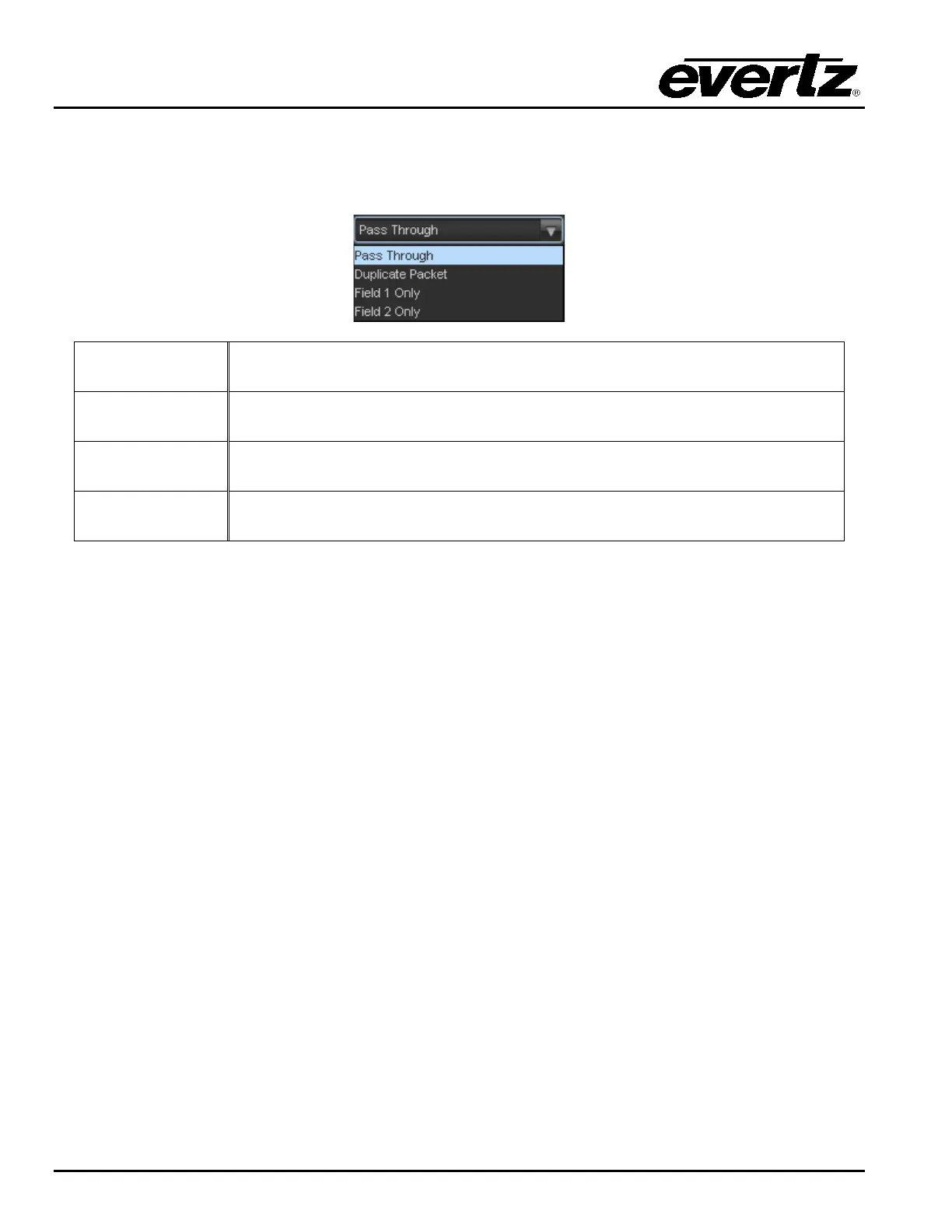

7.32.2.8. Progressive to Interlaced Conversion Mode
This control will determines the method of outputting the ANC packets on a progressive to interlaced
conversion
Pass Through
When set to Pass Through the module will take ANC packet from frame 1 and
insert onto field 1 and data on frame 2 will be inserted onto field 2.
Duplicate Packet
When set to Duplicate Packet, the module will embed data from frame 1 on to
both field one and two on the output.
Field 1 Only
When set to Field 1 Only, the module will only embed the incoming packets
onto Field 1 on the output.
Field 2 Only
When set to Field 2 Only, the module will only embed the incoming packets
onto Field 1 on the output.
7.32.2.9. ANC Packet Pass Through Status
This monitoring window returns the current state of the ANC Packet Pass Through module. This will
display if the control is disabled or passing the incoming ANC data. If there is no ANC data present on
the input this control will indicate Not Detected.
