SMP 300 Series • Front Panel Operations 38
Audio Output
The SMP 351 without LinkLicense allows the user to set the AUDIO OUTPUT to either
AONLY, BONLY, or A+B.
The SMP 351 with LinkLicense and the SMP 352 allow users to set the AUDIOOUTPUT to
either channels A+BDUAL MONO or BDUALMONO when Dual Mono for channel B is enabled.
MENU
NEXT
RECORD/STREAM
CONFIGURATION
NEXT
Rotate either to select audio
and video, or video only.
OUTPUT MODE
<AUDIO/VIDEO>
AUDIO OUTPUT
<B ONLY>
NEXT
Rotate either to
select ChA, ChB or A+B.
AUDIO OUTPUT
<B DUAL MONO>
NEXT
Rotate either to
select B dual mono or A+B dual mono.
-OR-

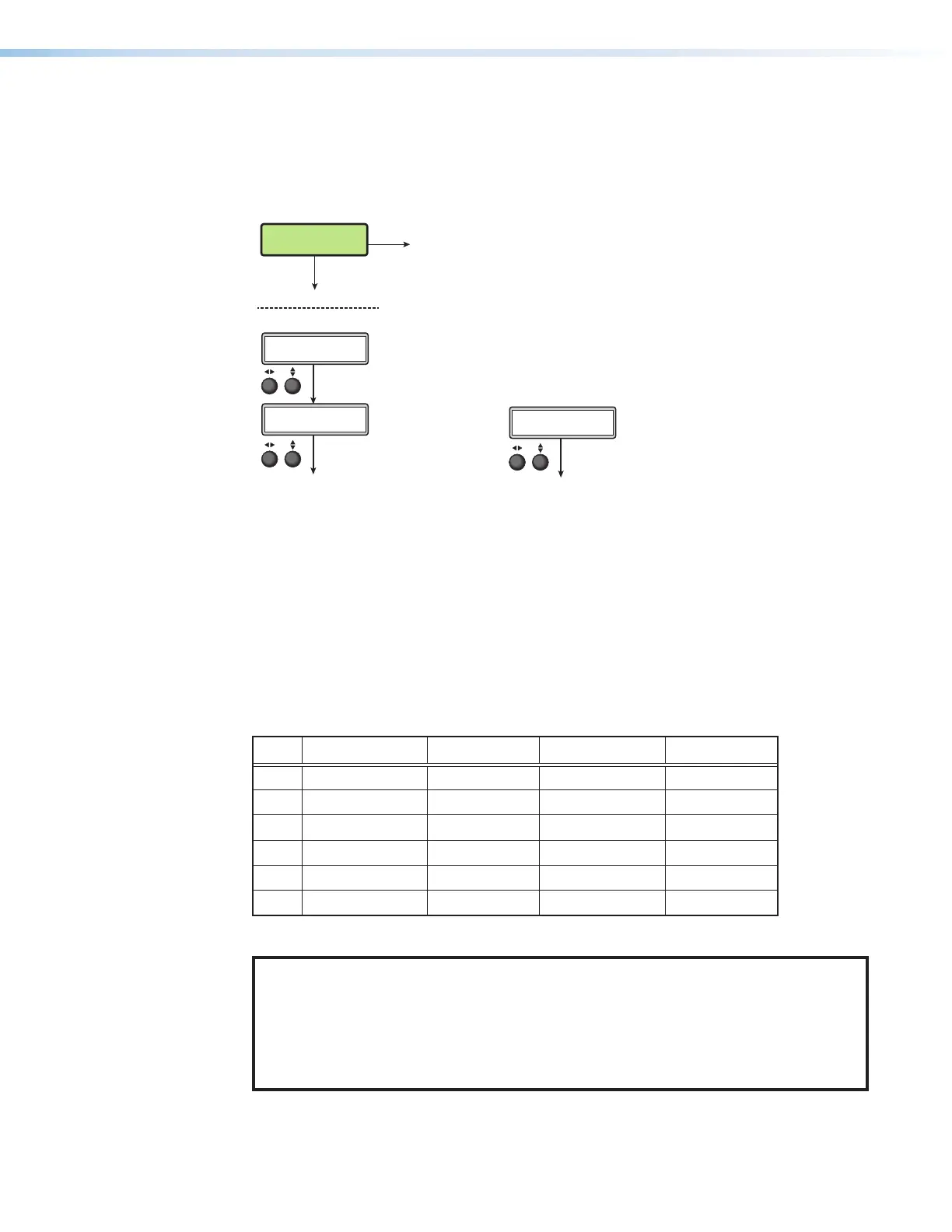

Figure 22. Audio Output Submenu
Resolution
Archive and confidence encoders have independent resolution settings.
The selections are:
• Custom • 1280x720 (default)
• 512x288 • 1280x1024
• 848x480 • 1920x1080
• 1024x768
There are three types of encoders ‑ Archive Channel A, Archive Channel B, and Confidence.
Output Rate Aspect Format Name
Max FPS
1
848x480 16:9 480p
30
2
1280x720 16:9 720p
30
3
1920x1080 16:9 1080p
30
4
1024x768 4:3 XGA
30
5
1280x1024 5:4 SXGA
30
6
512x288 16:9 WCIF
30
Recording resolution defaults to 1280x720.
NOTES:
• If the archive and confidence aspect ratios do not match, the source material can
appear stretched on the confidence stream.
• A custom rate is defined with the web‑based UI.
• For composite mode, the confidence encode cannot have a higher resolution than
the archive encode.
