ST100A Series Flow Meter APPENDIX B – ADDITIONAL INFORMATION
Fluid Components International LLC 147

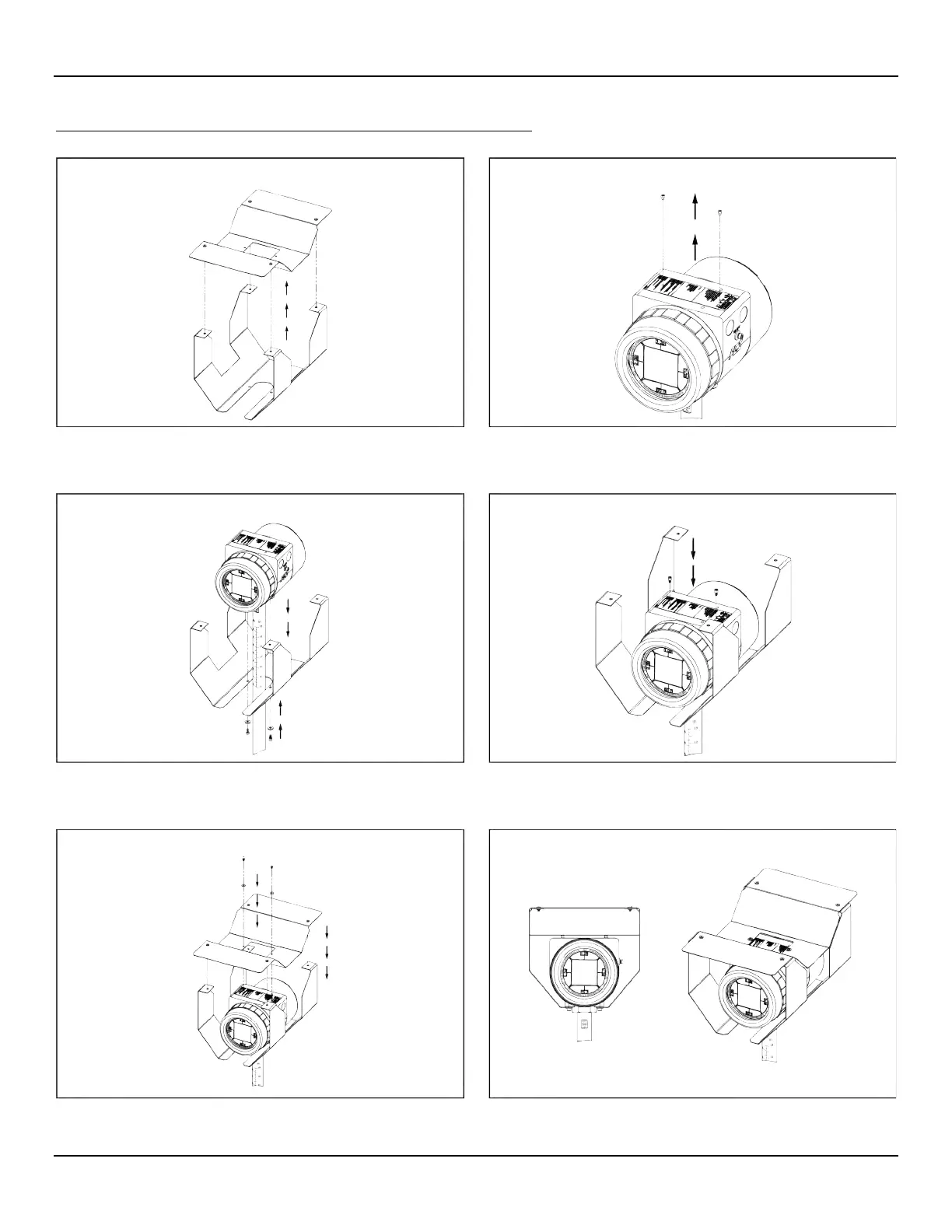

Instructions: Installing Sun Shield on ST100A Series Integral Enclosure
Step 1. Remove top of sun shield assembly.
Step 2. Remove existing tag screws.
Step 3. Attach enclosure to lower portion of sun shield using supplied screws
and washers.
Step 4. Secure tag using supplied hex standoffs.
Step 5. Reinstall top portion of sun shield using supplied pan head screws
and washers.
Step 6. Finished assembly – front and isometric views.
