FCI ST100A Series User Manual

OPERATION ST100A Series Flow Meter
52 Fluid Components International LLC

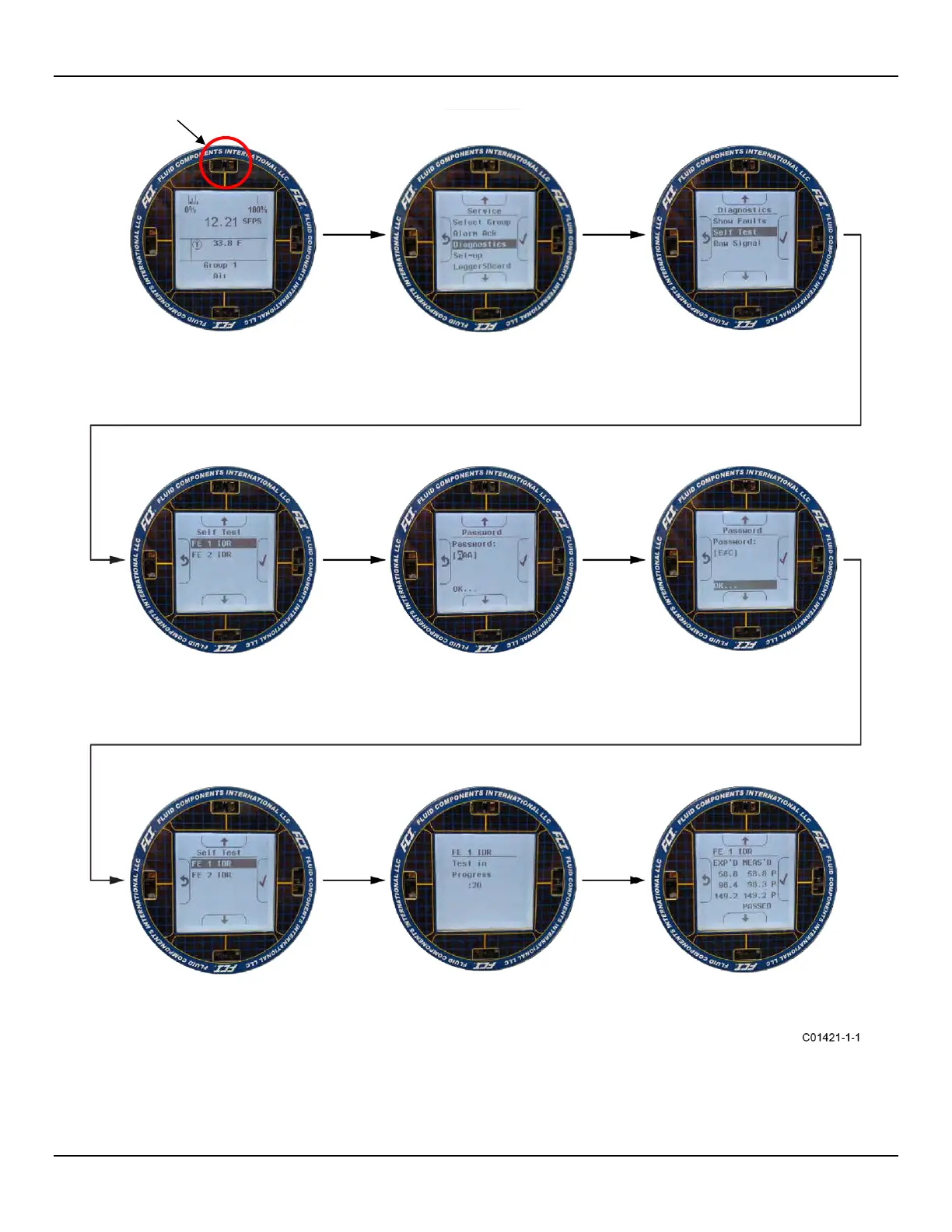

Figure 54 – Internal Delta-R Resistor Check (idR) HMI Display Sequence
HOT KEY
1. Normal Operation Display:
Select and hold the hot key for 3
seconds.
2. Select Diagnostics.
3. Select Self Test.
4. Select FE1 IDR (FE 2 applicable
to ST100A Series only).
5. Input Password E#C.
6. Select (Enter) Password.
7. Select FE1 IDR again.
8. Observe idR test in progress
(seconds countdown).
9. idR Test is Complete. Record
values for comparison.
